DATA SHEET: OUPREE OPR-NH100PS H.265 SDI IP STREAMING ENCODER SKYRS Pakistan Official Distribution Portfolio
The Oupree OPR-NH100PS is a professional-grade High Definition (HD) hardware video encoder featuring a dedicated SDI input. Operating on a resilient embedded HiLinux architecture, this device delivers high-efficiency H.265 (HEVC) and H.264 video compression. Designed specifically for professional broadcast environments, outside broadcast (OB) vans, and enterprise medical imaging networks, it provides ultra-stable, low-latency, and high-fidelity video streaming across the networking infrastructures of Pakistan.
PRODUCT VARIANTS BY SKYRS PAKISTAN
SKYRS supplies the OPR-NH100PS series in multiple physical form factors to match the scaling requirements of projects across major urban centers like Karachi, Lahore, and Islamabad.

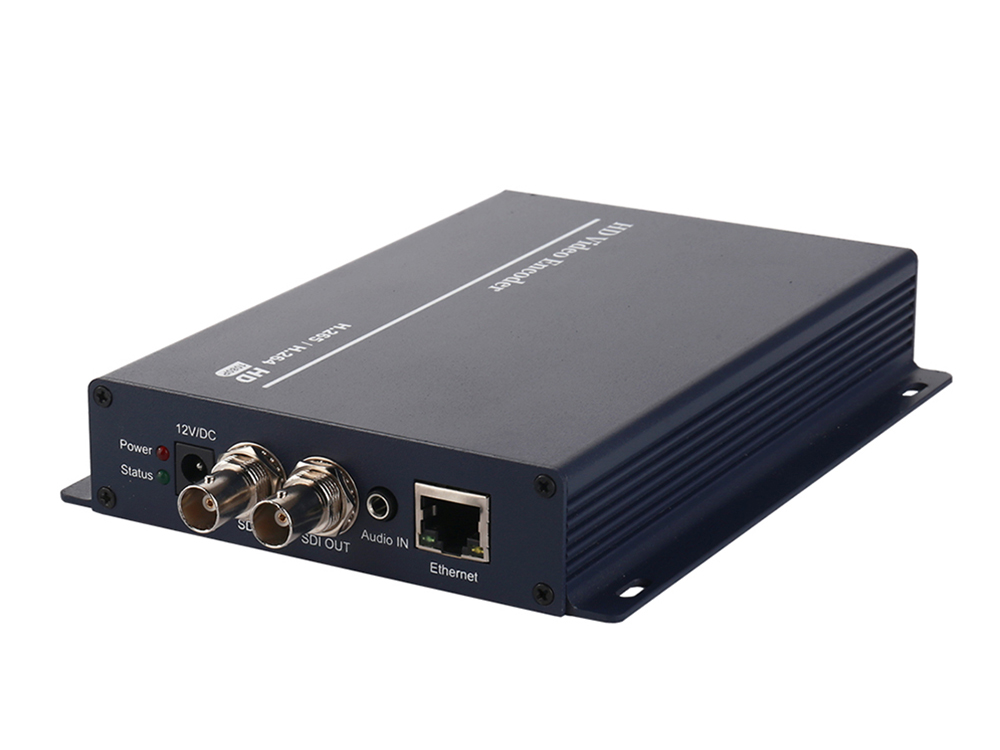

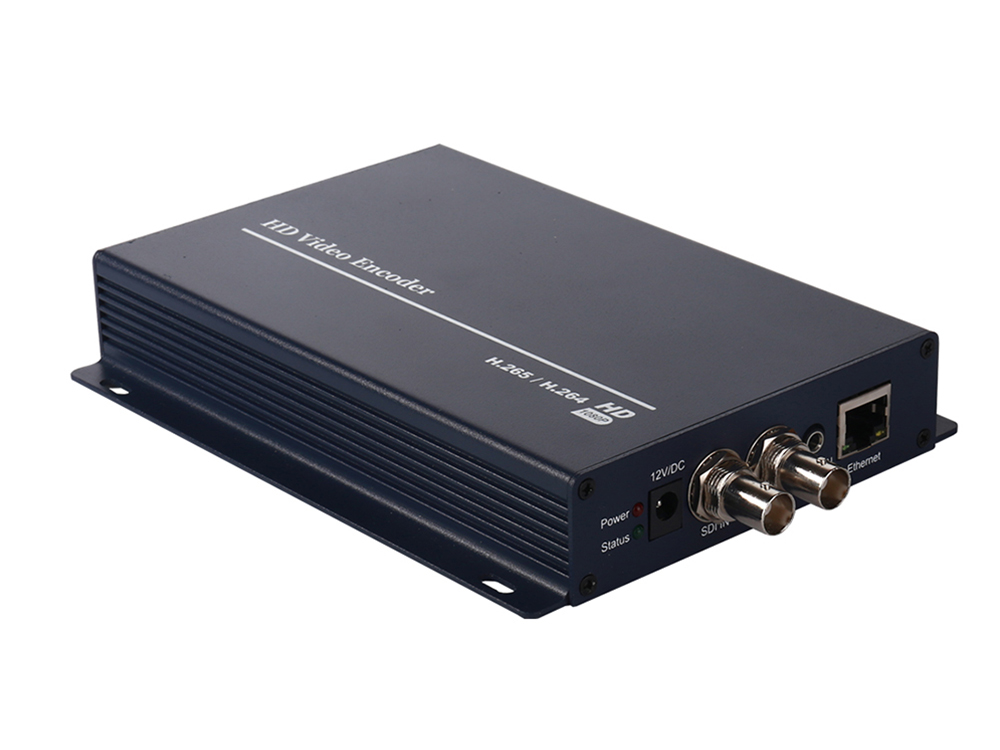

Variant 1: OPR-NH100PS (Standard Desktop Box)
Form Factor: Compact, standalone aluminum casing with fanless passive cooling.
Interfaces: 1-Channel HD/3G-SDI input and 1-Channel 3.5mm independent analog stereo audio input.
Deployment: Ideal for localized news studios, corporate event spaces, and live venue production booths demanding secure BNC cable connections.
Variant 2: OPR-NH100PS-W (Wireless WiFi Variant)
Form Factor: Portable standalone unit equipped with external 2.4G/5G dual-band WiFi antennas.
Interfaces: Maintains the premium SDI physical input with added high-speed wireless network transport.
Deployment: Engineered for field broadcast journalists, mobile sports crews, and pop-up events in locations lacking wired Ethernet infrastructure.
Variant 3: OPR-NH100PS-1U / 3U (High-Density Multi-Channel Rackmount)
Form Factor: 19-inch 1U (up to 4 channels) or 3U (up to 16 channels) industrial rackmount card frames.
Configuration: Houses multiple independent OPR-NH100PS encoder blades, each retaining its own discrete SDI input array.
Deployment: Optimized for central television station headends, military command centers, and major telecom data hubs.
TECHNICAL SPECIFICATIONS
Video Processing & Encoding Performance
Compression Standards: H.265 / HEVC (Main Profile) and H.264 / AVC (High / Main / Baseline Profile).

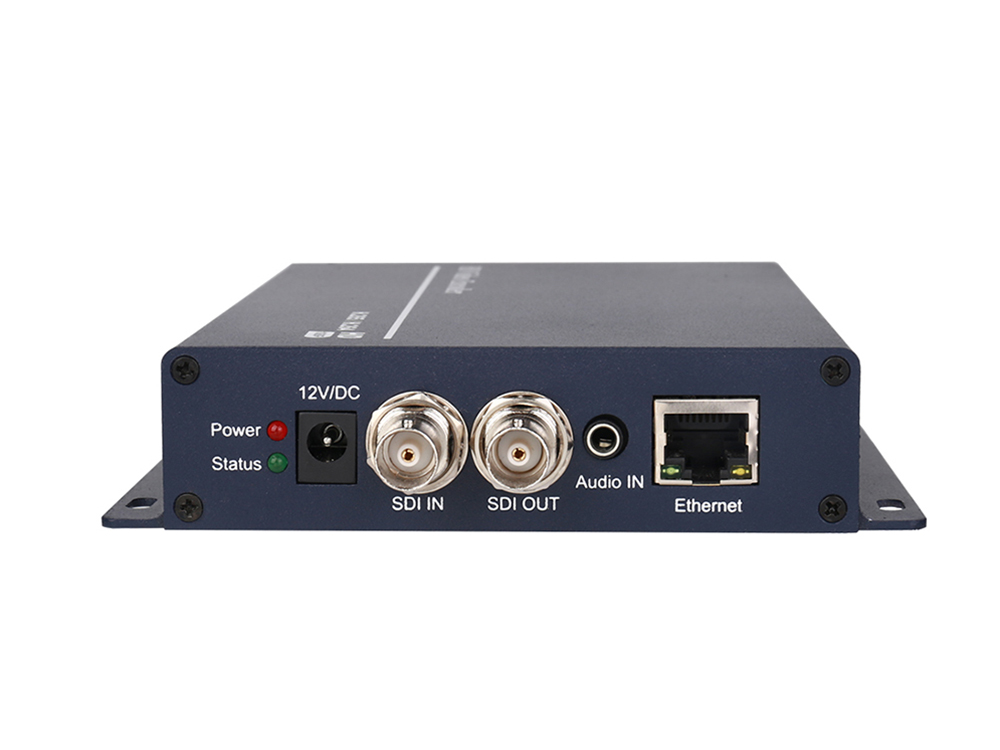

Video Input Interface: 1× BNC Female Port supporting HD-SDI and 3G-SDI signals.
Supported Input Resolutions: 1920×1080@60p/50p/60i/50i, 1280×720@60p/50p, and standard SD-SDI formats.
Encoded Output Target: Configurable up to 1080P@60fps.
Video Bitrate Modes: Constant Bitrate (CBR) or Variable Bitrate (VBR) processing from 16 Kbps to 12 Mbps.
Audio Processing
Input Capture: SDI Embedded Digital Audio or External 3.5mm Analog Audio Line-In.
Compression Formats: AAC, AAC+, AAC++, MP3, MP2, G.711a, and G.711u.
Sampling Frequency: 44.1 kHz / 48.0 kHz.
Stream Bitrate Allocation: 48 Kbps to 320 Kbps.
Network Protocol Architecture
Streaming Engine Protocols: SRT, HTTP, RTSP, RTMP, RTMPS, HLS, UDP, RTP, ONVIF, Unicast, and Multicast.
Multi-Stream Output Capability: Supports up to 4 simultaneous distinct output IP streams per channel (e.g., Main-Stream pushes 1080p to a local decoder, while Sub-Streams downscale to 720p/360p for mobile networks and global CDNs).
Physical Interface: 1x 100M/1000M Base-T Self-Adaptive Gigabit RJ45 Ethernet connection.
System Features & Management
Core Base OS: Embedded HiLinux platform built for non-stop 24/7 industrial runtime applications.
User Configuration Interface: Fully responsive Web-based GUI dashboard (Default IP Address: 192.168.1.168).
Text & Graphic Overlay (OSD): Text insertions, system timestamping, dynamic scroll titles, and custom BMP/PNG logo layers can be applied directly to the encoding feed.
Administration & Safety: Single-click factory reset protocol, configuration profile backup/restore, and remote web firmware update management.
SKYRS PAKISTAN REGIONAL REGISTRATION & DELIVERY
SKYRS backs all Oupree SDI hardware solutions with official replacement warranties, localized technical diagnostics, and priority shipping networks throughout Pakistan’s principal regions:
Southern Zone (Karachi, Hyderabad): Structured for marine broadcast feeds, commercial news media groups, and high-density corporate networks.
Central Zone (Lahore, Faisalabad, Multan, Sialkot): Targeted toward university surgical live-transmission arrays, sports arenas, and localized cable headend distributions.
Northern Zone (Islamabad, Rawalpindi, Peshawar): Specially configured frameworks for secure institutional facilities, national television master control rooms, and government assembly broadcasting.
