DATA SHEET: OUPREE OPR-NH1600P 3U RACK-MOUNTED 16-CHANNEL H.265 IP STREAMING ENCODER SKYRS Pakistan Official Distribution Portfolio
The Oupree OPR-NH1600P is an industrial-grade, high-density 3U rackmount hardware video encoder designed to compress and stream up to 16 independent channels of HDMI video simultaneously. Operating on a highly resilient embedded HiLinux architecture, this enterprise-class platform utilizes advanced H.265 (HEVC) and H.264 video compression. It is engineered to provide maximum space efficiency, low latency, and continuous 24/7 reliability for large-scale IPTV headends, university distance learning networks, and telecom data centers across Pakistan.
PRODUCT MODULE & CHASSIS VARIANTS BY SKYRS PAKISTAN
SKYRS supplies the OPR-NH1600P system in flexible, modular configurations to allow broadcasting hubs and IT infrastructures in Karachi, Lahore, and Islamabad to scale their channel density according to project requirements and hardware budgets.
Variant 1: OPR-NH1600P Base Frame (Chassis + Power Supply)
Form Factor: 19-inch 3U industrial rackmount enclosure with an integrated passive backplane.
Power Setup: Dual internal power supplies for load balancing and power redundancy.

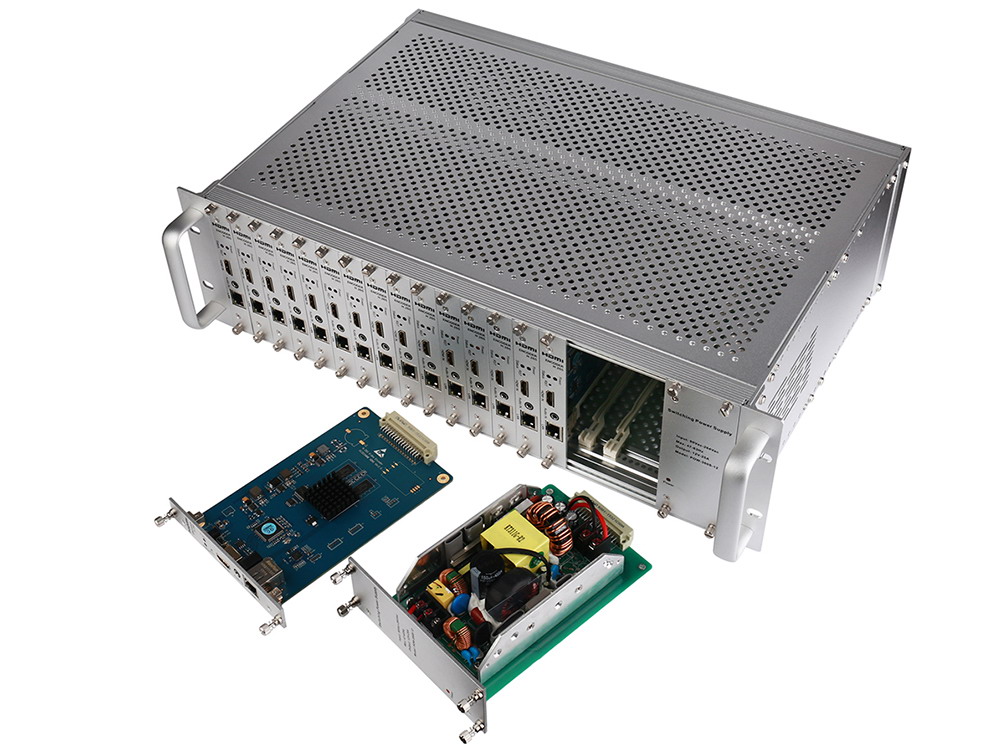

Capacity: Contains 16 expansion slots ready to accept independent single-channel hot-swappable encoder board blades.
Variant 2: OPR-NH1600P Fully Loaded (16-Channel HD Setup)

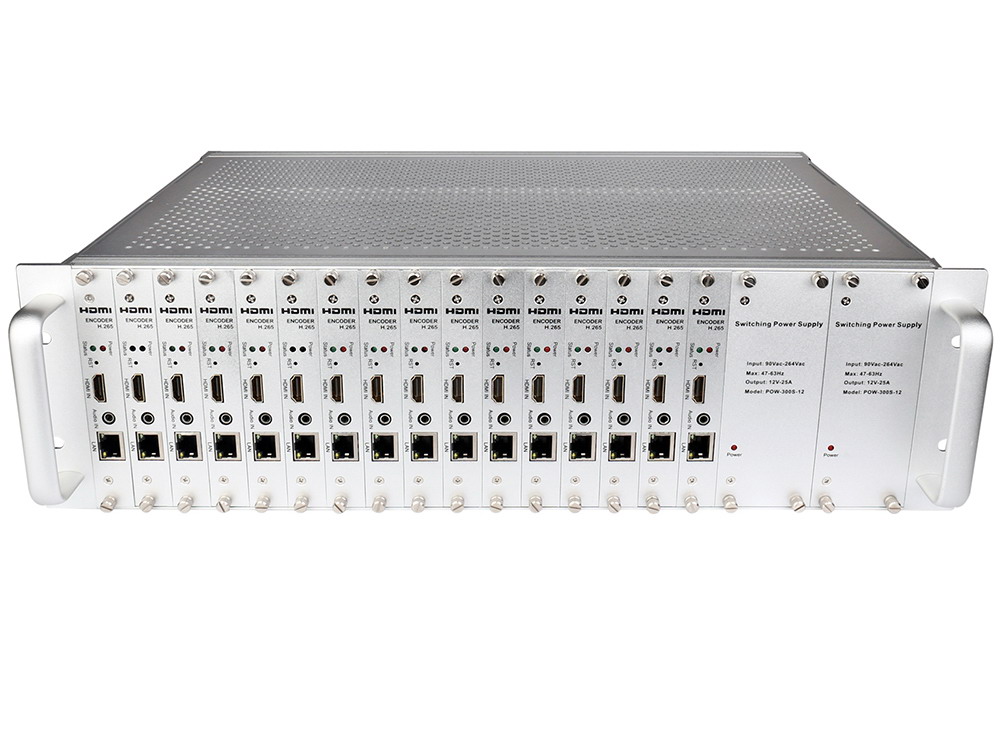

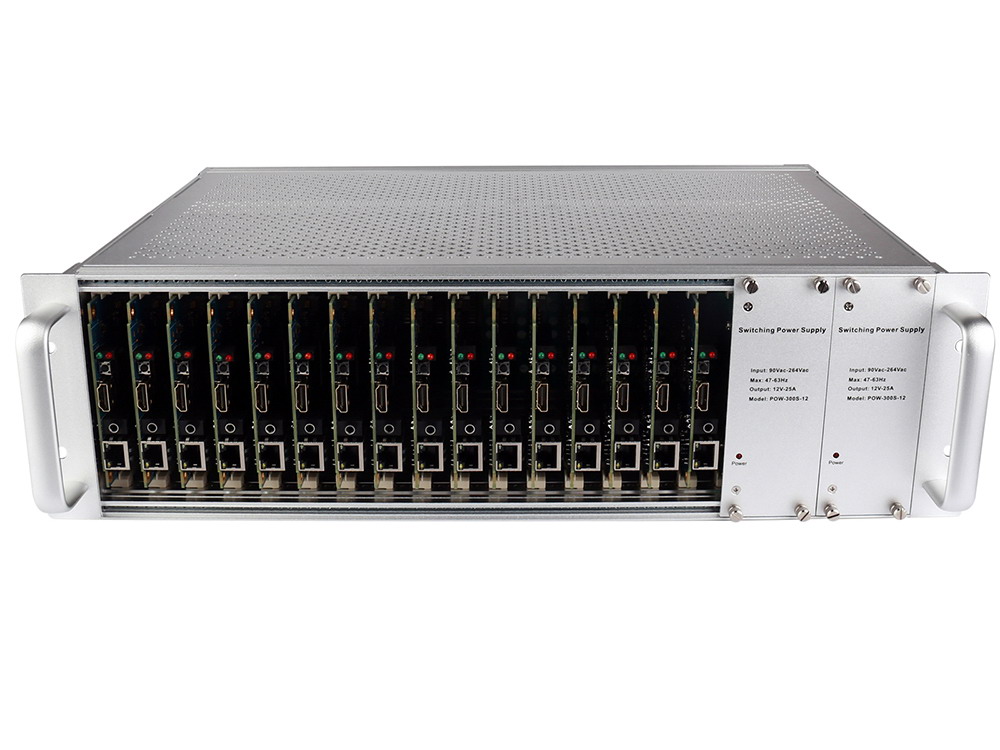

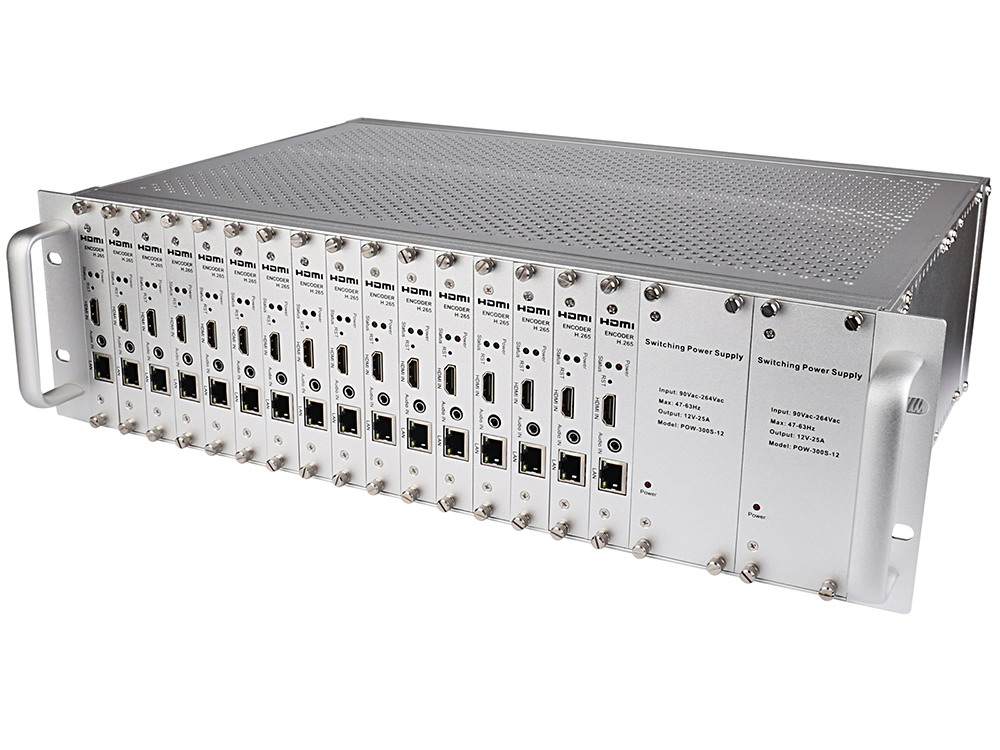

Form Factor: Complete 3U assembly pre-populated with 16 modular HDMI encoder cards.
Hardware Array: 16× Discrete HDMI inputs and 16× independent RJ45 Ethernet ports working simultaneously.
Deployment: Designed for central television master control rooms, large command centers, and tier-1 telecom IPTV streaming arrays.
Variant 3: OPR-NH1600P Custom Scaled (Partial Blade Configuration)
Form Factor: 3U chassis partially populated with encoder modules (e.g., 4, 8, or 12 active channels).
Scalability: Enables operators to start with a smaller footprint and scale up easily by sliding in extra HD blade modules without interrupting the existing active channels.
Deployment: Ideal for growing college networks, large corporate multi-room offices, and regional cable TV headends.
TECHNICAL SPECIFICATIONS
Video Processing & Encoding Performance
Compression Standards: H.265 / HEVC (Main Profile) and H.264 / AVC (High / Main / Baseline Profile).
Video Input Interface: 1× HDMI per independent blade card (16 inputs total when fully loaded).
Supported Input Resolutions: 1920×1080@60p/50p/60i/50i, 1280×720@60p/50p, 720×576, and lower standard definition resolutions.
Encoded Output Performance: Each individual blade channel compresses up to 1080P@60fps independently.
Video Bitrate Adjustment: CBR / VBR modes ranging from 16 Kbps to 12 Mbps per discrete channel.
Audio Management
Input Capture: HDMI Embedded Stereo Audio or External 3.5mm Analog Audio Line-In per blade card.
Compression Protocols: AAC, AAC+, AAC++, MP3, MP2, G.711a, and G.711u.
Sampling Rate: 44.1 kHz / 48.0 kHz.
Stream Bitrate Allocation: 48 Kbps to 320 Kbps per audio channel.
Network Protocol Architecture
Streaming Engine Protocols: SRT, HTTP, RTSP, RTMP, RTMPS, HLS, UDP, RTP, ONVIF, Unicast, and Multicast.
Multi-Stream Output: Supports up to 4 independent IP streams per individual hardware channel (giving a maximum of 64 output streams simultaneously across a fully loaded unit to target separate CDNs or local recording platforms).
Ethernet Interface: 16× 100M/1000M Base-T Self-Adaptive Gigabit RJ45 Ethernet connections (one dedicated physical network port per blade card).
System Features & Management
Operating System: Embedded HiLinux OS optimized for non-stop 24/7 industrial operational cycles.
User Configuration: Distributed management setup where each blade card functions with its own independent Web GUI dashboard and distinct local IP address (Default base configuration: 192.168.1.168).
Text & Graphic Overlay (OSD): Text, system runtime, dynamic scroll titles, and custom BMP/PNG logo watermarks can be assigned to each channel layer independently.
Administrative Tools: Configuration profile exporting/importing per blade, remote web firmware update management, and high-volume industrial cooling fans integrated into the 3U chassis for thermal stability.
