DATA SHEET: OUPREE OPR-NH100PV H.265 VGA IP STREAMING ENCODER SKYRS Pakistan Official Distribution Portfolio

The Oupree OPR-NH100PV is a specialized, professional-grade High Definition (HD) hardware video encoder featuring a native VGA interface for legacy system integration. Operating on a resilient embedded HiLinux architecture, this device delivers high-efficiency H.265 (HEVC) and H.264 video compression. It is purpose-built to bridge legacy analog video outputs—such as those from medical imaging devices, older radar displays, specialized industrial machinery, and classic PC workstations—directly into modern IP networks across Pakistan.


PRODUCT VARIANTS BY SKYRS PAKISTAN

SKYRS supplies the OPR-NH100PV series in multiple form factors to fit localized infrastructure requirements, from standalone portable configurations to high-density network setups in Karachi, Lahore, and Islamabad.

Variant 1: OPR-NH100PV (Standard Desktop Box)

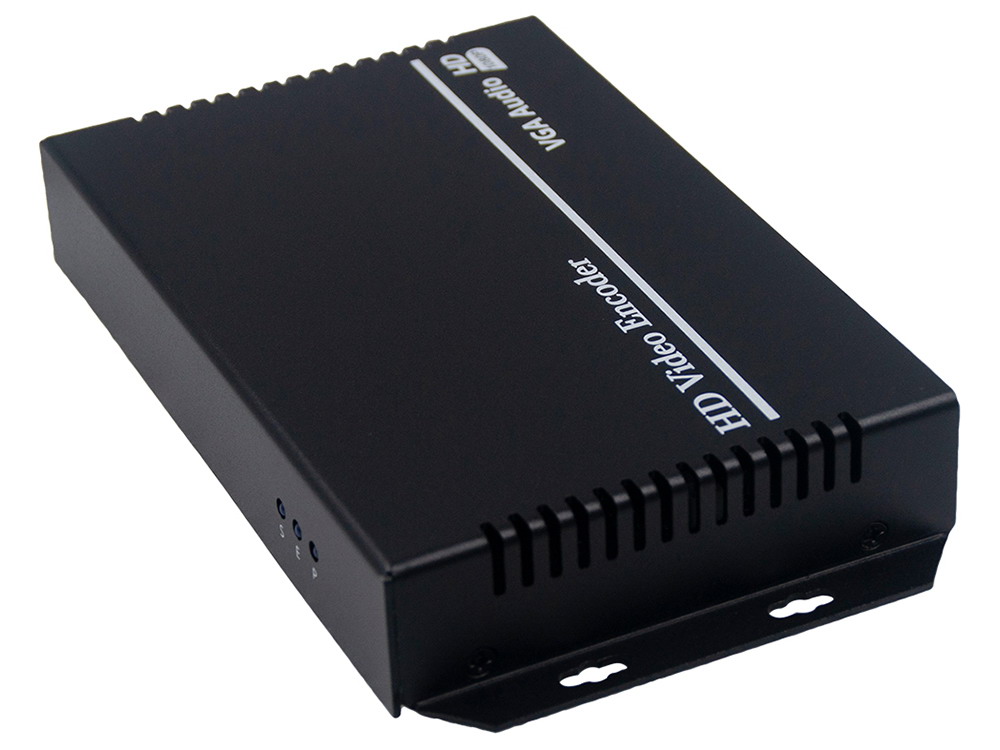

  • Form Factor: Compact, standalone aluminum casing with fanless passive cooling.

  • Interfaces: 1-Channel VGA input and 1-Channel 3.5mm independent analog stereo audio input.

  • Deployment: Ideal for medical sonography rooms, factory floor control monitors, and corporate lecture spaces using legacy presentation equipment.

Variant 2: OPR-NH100PV-W (Wireless WiFi Variant)

  • Form Factor: Portable standalone unit equipped with external 2.4G/5G dual-band WiFi antennas.

  • Interfaces: Combines the physical VGA analog input with high-speed wireless network transport.

  • Deployment: Designed for mobile industrial diagnostics, rapid field deployments, and temporary monitoring zones lacking fixed network cables.

Variant 3: OPR-NH100PV-1U / 3U (High-Density Multi-Channel Rackmount)

  • Form Factor: 19-inch 1U (up to 4 channels) or 3U (up to 16 channels) industrial rackmount frames.

  • Configuration: Houses multiple independent OPR-NH100PV encoder cards, with each module retaining its own discrete VGA and audio connection array.

  • Deployment: Tailored for central operations rooms, military command centers, and industrial server rooms aggregating multiple legacy server outputs.


TECHNICAL SPECIFICATIONS

Video Processing & Legacy Interface Management

  • Compression Standards: H.265 / HEVC (Main Profile) and H.264 / AVC (High / Main / Baseline Profile).

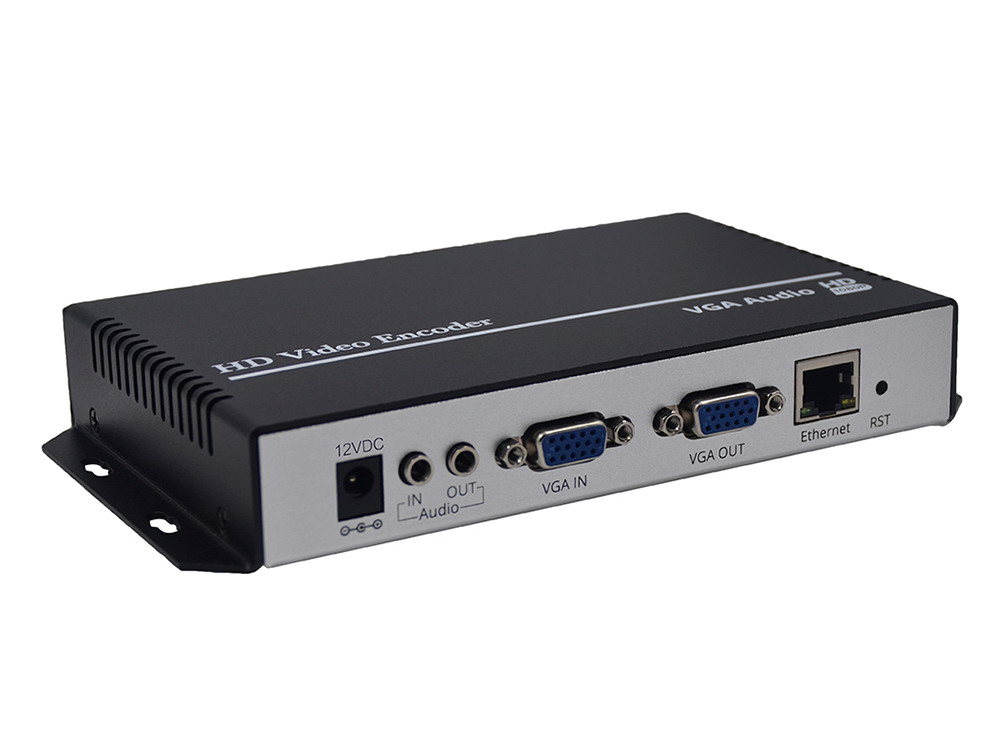

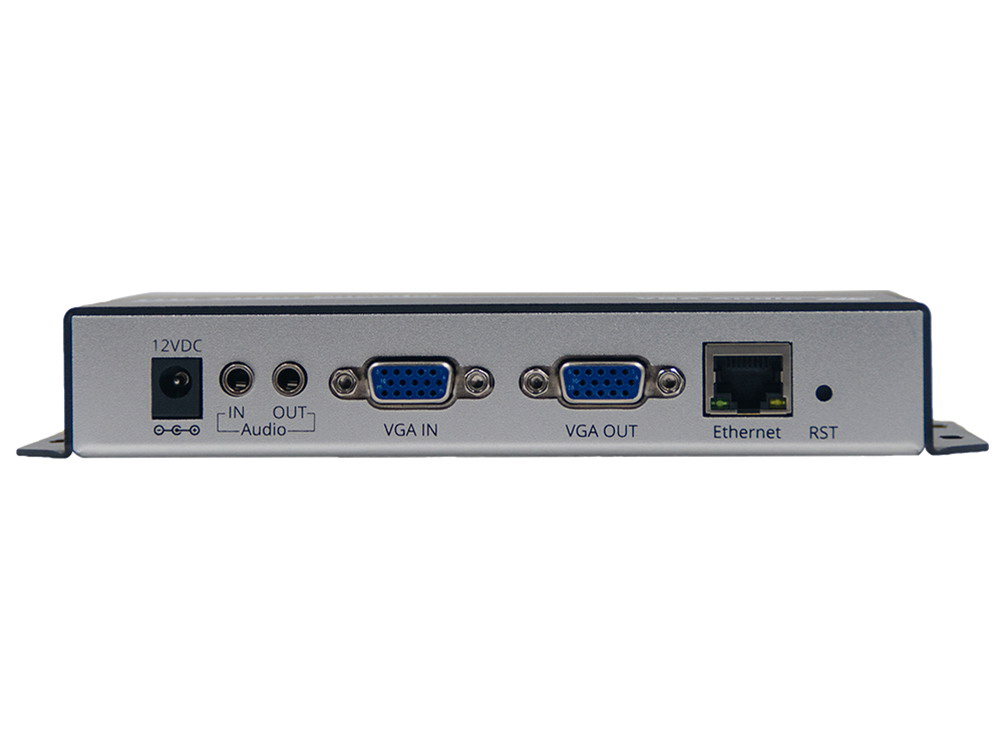

  • Video Input Interface: 1× D-Sub 15-pin VGA Female port.

  • Supported Input Resolutions: Standard VESA resolutions including 1920×1080, 1600×1200, 1440×900, 1366×768, 1280×1024, 1280×720, 1024×768, 800×600, and lower refresh-matched configurations.

  • Encoded Output Target: Configurable up to 1080P@60fps.

  • Video Bitrate Adjustment: Constant Bitrate (CBR) or Variable Bitrate (VBR) processing from 16 Kbps to 12 Mbps.

Audio Processing

  • Input Capture: External 3.5mm Analog Audio Line-In (synchronized perfectly with the VGA video stream).

  • Compression Formats: AAC, AAC+, AAC++, MP3, MP2, G.711a, and G.711u.

  • Sampling Frequency: 44.1 kHz / 48.0 kHz.

  • Stream Bitrate Allocation: 48 Kbps to 320 Kbps.

Network Protocol Architecture

  • Streaming Engine Protocols: SRT, HTTP, RTSP, RTMP, RTMPS, HLS, UDP, RTP, ONVIF, Unicast, and Multicast.

  • Multi-Stream Output Capability: Supports up to 4 simultaneous distinct output IP streams per channel (e.g., Main-Stream records in full resolution on a local network, while Sub-Streams downscale for remote web-monitoring portals).

  • Physical Interface: 1x 100M/1000M Base-T Self-Adaptive Gigabit RJ45 Ethernet connection.

System Features & Management

  • Core Base OS: Embedded HiLinux platform engineered for non-stop 24/7 industrial runtime applications.

  • User Configuration Interface: Fully responsive Web-based GUI dashboard (Default IP Address: 192.168.1.168).

  • Text & Graphic Overlay (OSD): Text insertions, system timestamping, dynamic scroll titles, and custom BMP/PNG logo layers can be applied directly to the encoding feed.

  • Administration & Safety: Single-click factory reset protocol, configuration profile backup/restore, and remote web firmware update management.


SKYRS PAKISTAN REGIONAL REGISTRATION & DELIVERY

SKYRS backs all Oupree hardware solutions with official replacement warranties, localized technical diagnostics, and priority shipping networks throughout Pakistan’s principal regions:

  • Southern Zone (Karachi, Hyderabad): Structured for maritime simulator arrays, hospital diagnostic equipment integrations, and heavy industrial plant control rooms.

  • Central Zone (Lahore, Faisalabad, Multan, Sialkot): Targeted toward textile manufacturing monitoring loops, older university laboratory workstations, and regional command centers.

  • Northern Zone (Islamabad, Rawalpindi, Peshawar): Specially configured frameworks for institutional legacy server rooms, secure government information arrays, and national security monitoring complexes.
