DATA SHEET: OUPREE OPR-NH100PH H.265 HDMI IP STREAMING ENCODER WITH LOOP OUTPUT SKYRS Pakistan Official Distribution Portfolio
The Oupree OPR-NH100PH is a professional High Definition (HD) hardware video encoder featuring an integrated HDMI loop-through output. Built on a robust embedded HiLinux architecture, this device delivers high-efficiency H.265 (HEVC) and H.264 video compression. The zero-latency HDMI loop output allows operators to monitor the local video source in real-time, making it an essential tool for live broadcasting, esports, corporate presentations, and educational environments across Pakistan.
PRODUCT VARIANTS BY SKYRS PAKISTAN
SKYRS offers the OPR-NH100PH series in multiple form factors tailored to specific deployment demands—from highly portable field units to high-density server configurations in Karachi, Lahore, and Islamabad.

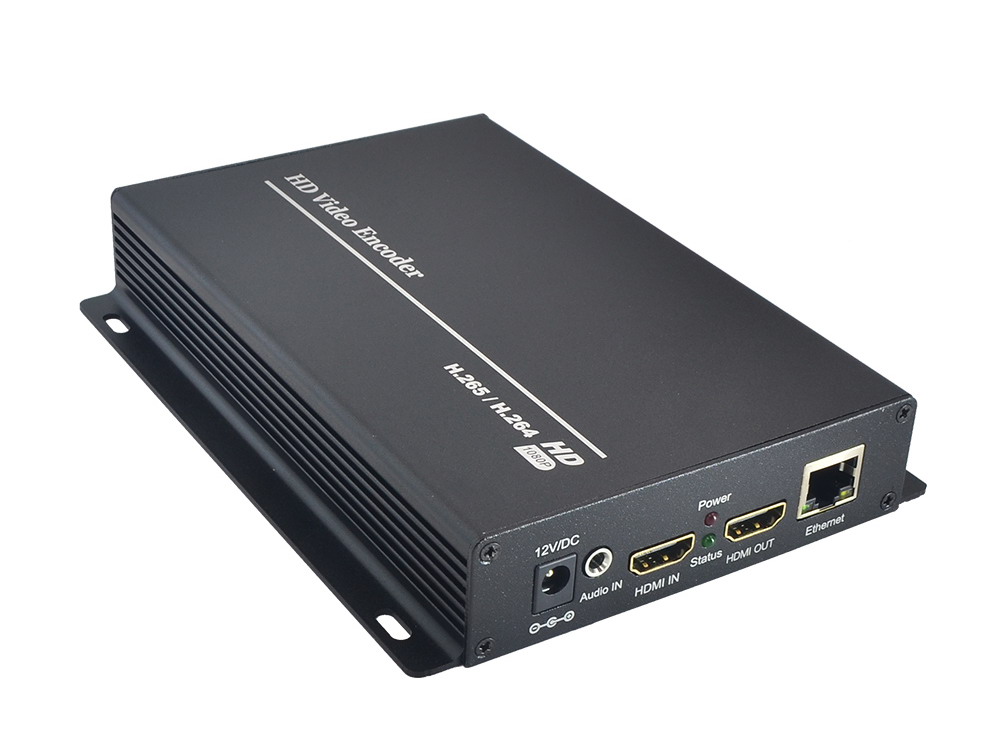

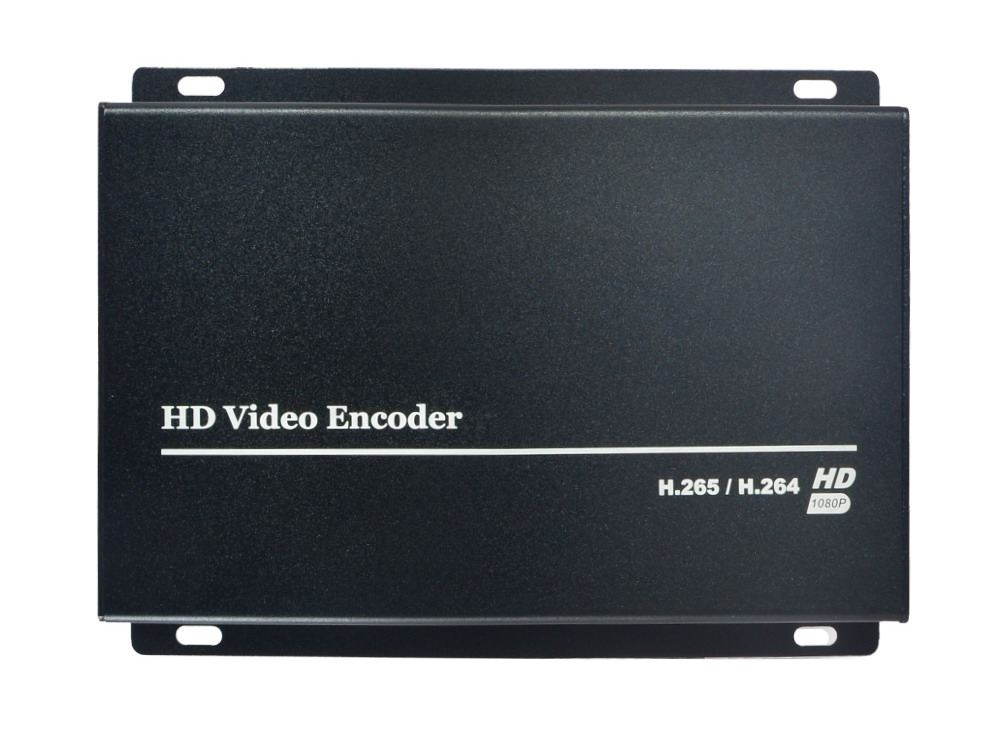

Variant 1: OPR-NH100PH (Standard Desktop Box with Loop Out)
Form Factor: Compact, standalone aluminum casing with passive, fanless cooling.

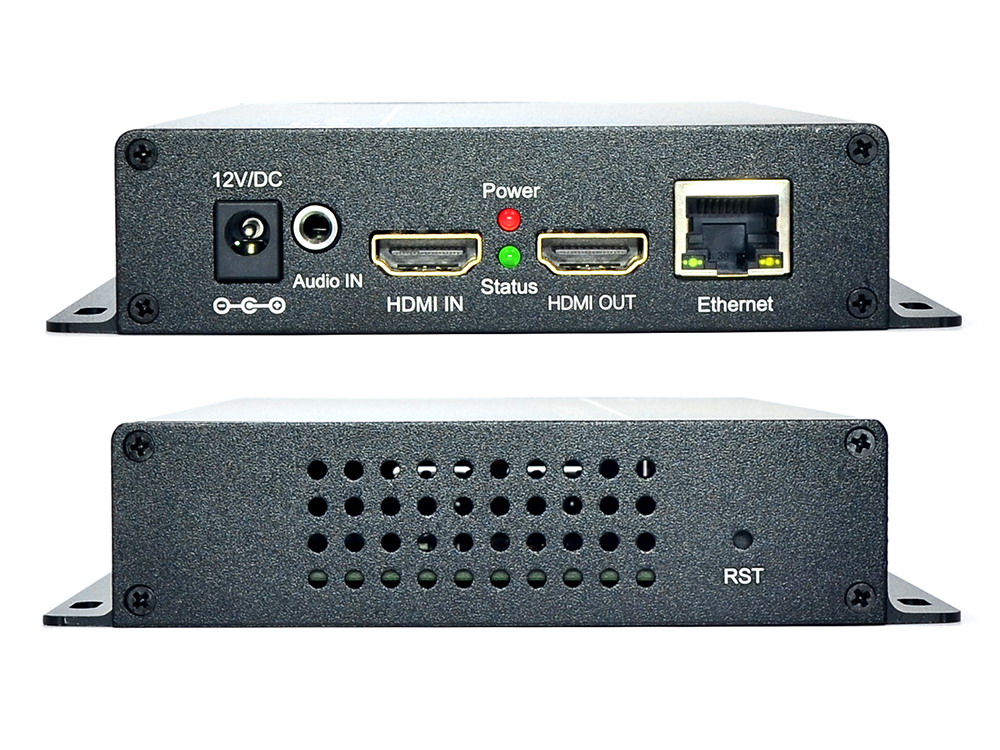

Interfaces: 1-Channel HDMI input, 1-Channel HDMI Loop Output, and 1-Channel 3.5mm independent stereo audio input.
Deployment: Ideal for local presentation stages, live gaming events, and studio control rooms where source monitoring is mandatory.
Variant 2: OPR-NH100PH-W (Wireless WiFi Variant with Loop Out)
Form Factor: Portable standalone unit equipped with external 2.4G/5G dual-band WiFi antennas.
Interfaces: Maintains full HDMI input/loop-through connectivity with added wireless streaming.
Deployment: Designed for mobile journalism, outdoor sports coverage, and pop-up events in locations lacking localized Ethernet infrastructure.
Variant 3: OPR-NH100PH-1U / 3U (Rackmounted Multi-Channel Infrastructure)
Form Factor: 1U (up to 4 channels) or 3U (up to 16 channels) industrial rackmount card frames.
Configuration: Each independent encoder module retains its own discrete HDMI input and physical HDMI loop-through port.
Deployment: Engineered for centralized telecom headends, large-scale secure campus distribution, and master control rooms.
TECHNICAL SPECIFICATIONS
Video Processing & Encoding
Compression Standards: H.265 / HEVC (Main Profile) and H.264 / AVC (High / Main / Baseline Profile).
Input & Loop Resolution Support: 1920×1080@60p/50p/60i/50i, 1280×720@60p/50p, and standard definition formats.
Loop-Through Latency: 0ms (Hardware-level direct pass-through).
Target Encoding Resolution: Up to 1080P@60fps.
Video Bitrate Configuration: Constant Bitrate (CBR) or Variable Bitrate (VBR) scaling from 16 Kbps to 12 Mbps.
Audio Processing
Input Connectivity: HDMI Embedded Audio or 3.5mm External Stereo Analog Audio (Line-In).
Audio Compression: AAC, AAC+, AAC++, MP3, MP2, G.711a, and G.711u.
Sampling Rate Options: 44.1 kHz or 48.0 kHz.
Bitrate Capacity: 48 Kbps to 320 Kbps.
Network Protocol Architecture
Streaming Protocol Capabilities: SRT, HTTP, RTSP, RTMP, RTMPS, HLS, UDP, RTP, ONVIF, Unicast, and Multicast.
Multi-Stream Output Engine: Simultaneously delivers up to 4 distinct streams per channel (e.g., Main-Stream to an on-premise decoder and Sub-Streams to global CDNs like YouTube/Facebook at lower bitrates).
Physical Interface: 1x 100M/1000M Base-T Self-Adaptive Gigabit RJ45 Ethernet Port.
System Management & Security
Core OS Platform: Embedded HiLinux OS engineered for uninterrupted 24/7 industrial runtime.
Configuration Interface: Responsive Web-based GUI accessible via any network-connected web browser (Default IP: 192.168.1.168).
On-Screen Graphics (OSD): Text overlays, timestamping, and dual BMP/PNG logo/watermark layering on the active encoded stream.
Maintenance Tools: Single-click factory reset button, configuration file backup/restore, and remote web firmware upgrade compatibility.
SKYRS PAKISTAN REGIONAL REGISTRATION & DELIVERY
SKYRS backs all Oupree installations with native hardware warranties, technical troubleshooting, and priority deployment logistics across Pakistan’s major tier-1 and tier-2 urban sectors:
Southern Grid (Karachi, Hyderabad): Pre-configured systems tailored for media production houses, coastal industrial setups, and metropolitan corporate arrays.
Central Grid (Lahore, Faisalabad, Multan, Gujranwala): Optimized configurations for university lecture capture networks, private medical college auditoriums, and regional cable IPTV nodes.
Northern Grid (Islamabad, Rawalpindi, Peshawar): Custom infrastructure frameworks designed for government conference halls, secure institutional video distribution, and national news broadcast hubs.
Skyrs stands proudly as the premier exclusive vendor in Pakistan. Consequently, we provide cutting-edge solutions for modern production setups. Specifically, software houses and high-density call center call centre operations trust us for robust deployments. We specialize in distributing premium oupree VIDEO STREAMING HARDWARE MANUFACTURER infrastructure nationwide.
Furthermore, our deployment teams excel during a complex oupree VIDEO STREAMING HARDWARE MANUFACTURER Migration. We ensure that your broadcasting network experiences minimal downtime. If you require scalable multi-channel distribution, you can easily Buy oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment Lahore/Islamabad. Additionally, our clients can request an official OPR-NH100PH H.265 H.265 HDMI IP Streaming Encoder with Loop Output bulk quote for enterprise-scale installations.
The OPR-NH100PH H.265 H.265 HDMI IP Streaming Encoder with Loop Output processes live feeds with absolute clarity. For example, it utilizes ultra-efficient HEVC compression. Therefore, it delivers pristine media streams smoothly over standard local networks while providing a local HDMI passthrough interface.
[Local HDMI Monitor]
^
| (Loop Output)
[HDMI Media Input] ---> [OPR-NH100PH Encoder] ---> [IP Network] ---> [Media Servers]
