DATA SHEET: OUPREE OPR-NH100N 1-CHANNEL H.264 HDMI IP STREAMING ENCODER SKYRS Pakistan Official Distribution Portfolio
The Oupree OPR-NH100N is a highly reliable, cost-effective High Definition (HD) hardware video encoder designed for stable audio and video transmission over IP networks. Utilizing standard H.264 (AVC) video compression and built upon a resilient embedded HiLinux operating system, this encoder provides an optimal balance of bandwidth efficiency and high video fidelity. It serves as an essential infrastructure component for localized IPTV networks, educational broadcasting, and corporate media distribution across Pakistan.
PRODUCT VARIANTS BY SKYRS PAKISTAN
SKYRS offers the OPR-NH100N series in multiple hardware variants designed to scale seamlessly across different installation environments in Karachi, Lahore, Islamabad, and other major metropolitan areas.

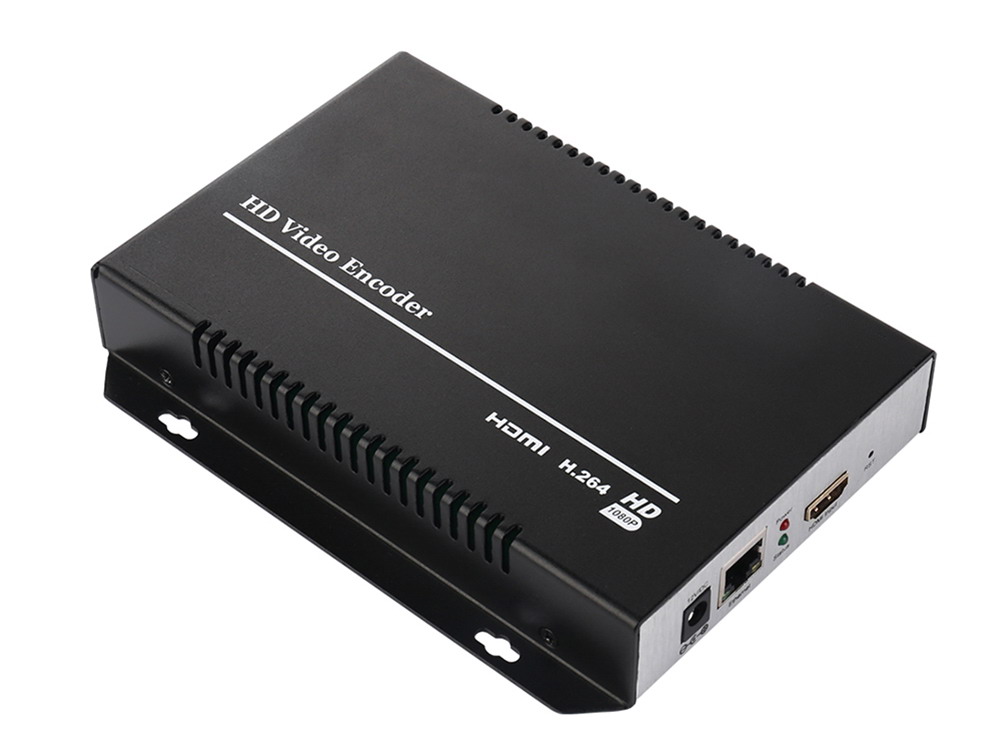

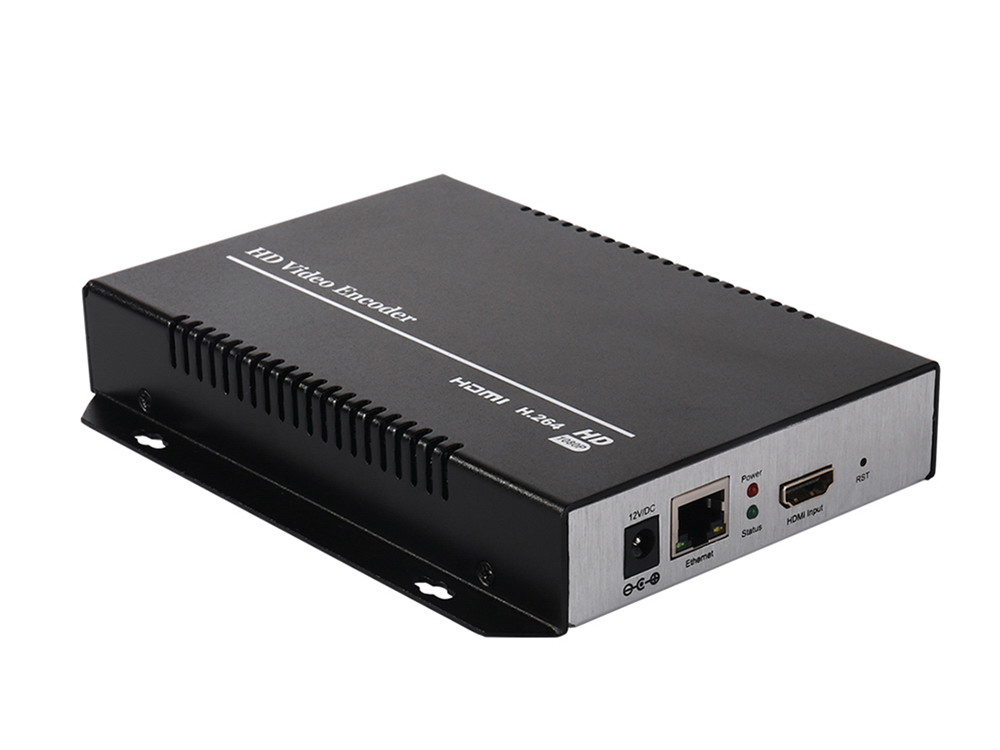

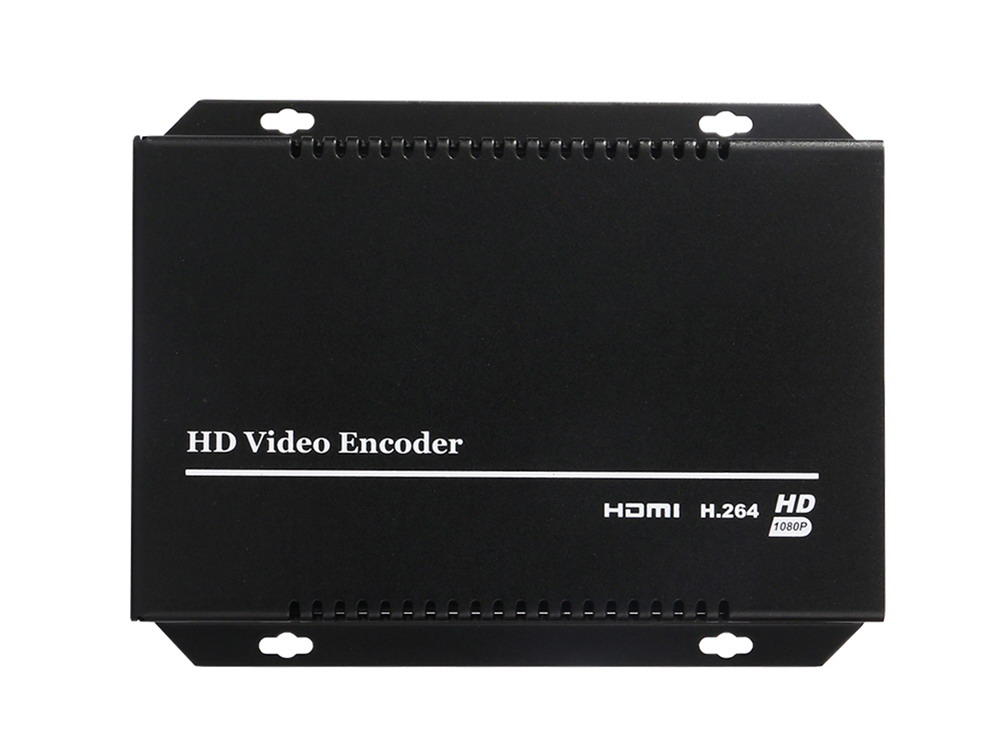

Variant 1: OPR-NH100N (Standard Desktop Box)
Form Factor: Compact, standalone aluminum casing with fanless cooling.
Interfaces: 1-Channel HDMI input and 1-Channel 3.5mm independent stereo audio input.
Deployment: Ideal for localized corporate webcasting, educational live streams, and independent AV setups.
Variant 2: OPR-NH100N-W (Wireless WiFi Configuration)
Form Factor: Portable standalone unit equipped with external 2.4G/5G dual-band WiFi antennas.
Networking: Combined high-speed wired RJ45 and wireless network capability.
Deployment: Engineered for mobile journalism, pop-up events, and outdoor venues across major cities where wired LAN infrastructure is unavailable.
Variant 3: OPR-NH100N-1U / 3U (High-Density Multi-Channel Rack)
Form Factor: 1U (up to 4 channels) or 3U (up to 16 channels) industrial chassis frames.
Configuration: Standard rackmount housing hosting multiple independent OPR-NH100N encoder blade cards.
Deployment: Designed for telecom data centers, large-scale cable television distribution hubs, and enterprise network cores.
TECHNICAL SPECIFICATIONS
Video Encoding & Performance
Compression Standard: H.264 / AVC (High Profile / Main Profile / Baseline Profile).
Resolution Input Support: 1920×1080@60p/60i, 1920×1080@50p/50i, 1280×720@60p/50p, and standard definition formats.
Encoded Output Resolution: Up to 1080P@60fps.
Video Bitrate Options: Adjustable from 16 Kbps to 12 Mbps via Constant Bitrate (CBR) or Variable Bitrate (VBR) profiles.
Image Pre-processing: Brightness, contrast, saturation, and hue adjustments can be managed directly through the processing chipset.
Audio Processing
Input Connectivity: HDMI Embedded Stereo Audio or External 3.5mm Analog Audio (Line-In).
Compression Profiles: AAC, AAC+, AAC++, MP3, MP2, G.711a, and G.711u.
Sampling Rate: 44.1 kHz / 48.0 kHz.
Stream Bitrate Allocation: 48 Kbps to 320 Kbps.
Network & Protocol Capabilities
Supported Protocols: HTTP, RTSP, RTMP, RTMPS, HLS, UDP, RTP, ONVIF, Unicast, and Multicast.
Multi-Stream Output: Capability to output up to 4 simultaneous IP streams per channel (allowing independent destination targeting, such as sending a Main-Stream to a local server and a Sub-Stream to a social media CDN).

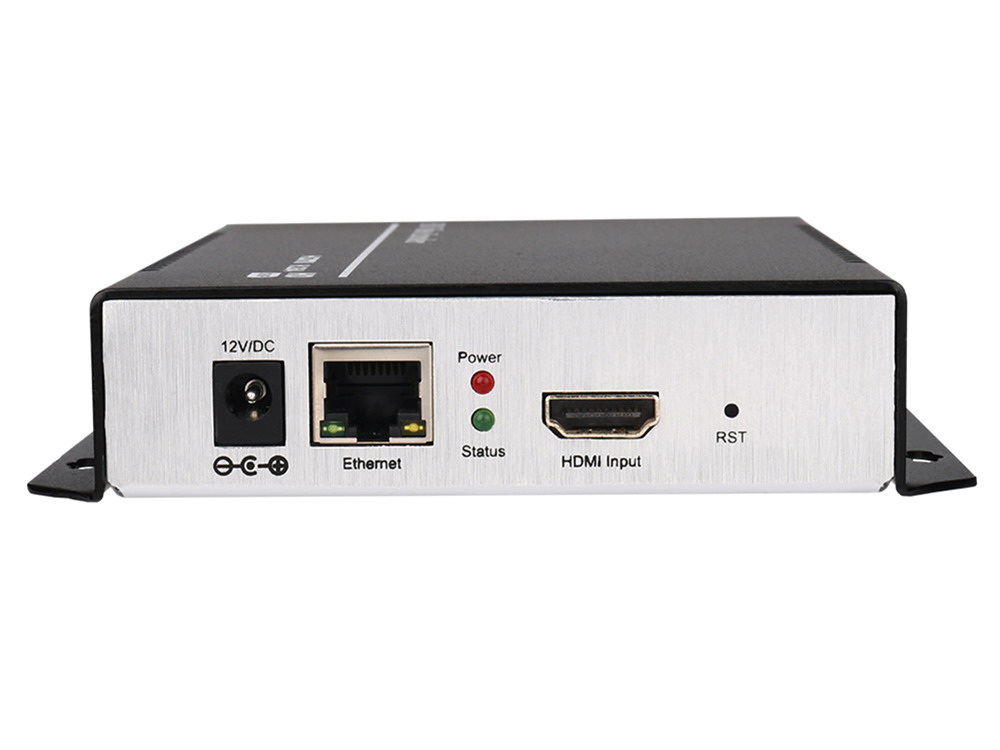

Physical Interface: 1x 100M Base-T Self-Adaptive RJ45 Ethernet port.
System Features & Management
Operating System: Embedded HiLinux OS ensuring continuous 24/7 industrial runtime without freezing.
Control Interface: Cross-browser compatible Web GUI dashboard (Default IP address: 192.168.1.168).
Text & Graphic Overlay: OSD engine supporting multiple text layers, time/date stamps, and BMP logo/watermark uploads.
Administrative Tools: Configuration file backup/restore, remote web firmware updates, and automated system reboot scheduling.
