DATA SHEET: OUPREE OPR-NH1600PH 3U RACK-MOUNTED 16-CHANNEL H.265 IP STREAMING ENCODER WITH LOOP OUTPUT SKYRS Pakistan Official Distribution Portfolio
The Oupree OPR-NH1600PH is an enterprise-class, high-density 3U rackmount hardware video encoder featuring physical HDMI loop-through outputs for every channel. Running on an ultra-stable embedded HiLinux architecture, this system supports simultaneous 16-channel compression utilizing high-efficiency H.265 (HEVC) and H.264 video compression. The zero-latency local loop outputs allow operators to monitor inputs locally in real time. This makes it an ideal infrastructure solution for multi-camera live broadcast master rooms, stadium displays, large-scale medical imaging distribution, and centralized IPTV headends across Pakistan.
PRODUCT MODULE & CHASSIS VARIANTS BY SKYRS PAKISTAN
SKYRS supplies the modular OPR-NH1600PH ecosystem in flexible configurations to allow enterprise server facilities in Karachi, Lahore, and Islamabad to scale their multi-channel inputs smoothly based on structural demands.
Variant 1: OPR-NH1600PH Base Frame (Chassis + Redundant Power)
Form Factor: 19-inch 3U industrial rackmount enclosure with an integrated passive backplane.
Power Architecture: Dual internal hot-swappable power supplies for automated load balancing and hardware failover.
Capacity: Contains 16 expansion slots configured to receive independent, single-channel hot-swappable encoder modules with onboard physical loop out.
Variant 2: OPR-NH1600PH Fully Loaded (16-Channel HD + 16 Loop Out Setup)

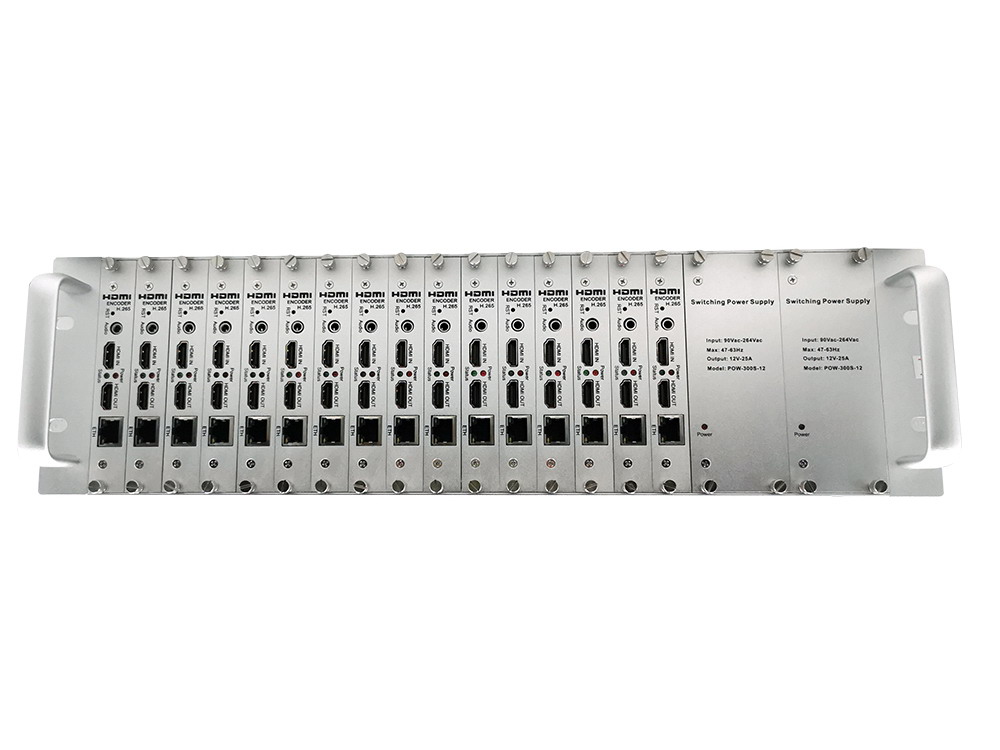

Form Factor: Complete 3U assembly pre-populated with 16 modular HDMI encoder cards.
Hardware Array: 16× Discrete HDMI inputs, 16× physical zero-latency HDMI loop-through outputs, and 16× independent RJ45 Ethernet ports working simultaneously.
Deployment: Designed for nationwide television network hubs, large multi-camera production centers, and centralized secure monitoring matrixes.
Variant 3: OPR-NH1600PH Custom Scaled (Partial Blade Configuration)
Form Factor: 3U chassis partially populated with encoder modules (e.g., 4, 8, or 12 active channels).
Scalability: Allows regional operators to scale up infrastructure on a rolling basis by sliding in extra loop-out blade modules into empty slots without interrupting existing active channel streams.
Deployment: Ideal for expanding university campus networks, localized cable TV headends, and growing corporate multi-room complexes.
TECHNICAL SPECIFICATIONS
Video Processing & Loop-Through Capabilities
Compression Standards: H.265 / HEVC (Main Profile) and H.264 / AVC (High / Main / Baseline Profile).
Video Input Interface: 1× HDMI per independent blade card (16 inputs total when fully loaded).
Local Video Monitoring: 1× Physical HDMI Loop Output per independent blade card (16 loop outputs total when fully loaded providing 0ms hardware pass-through).
Supported Input Resolutions: 1920×1080@60p/50p/60i/50i, 1280×720@60p/50p, 720×576, and lower standard definition resolutions.
Encoded Output Performance: Each individual blade channel compresses up to 1080P@60fps independently.
Video Bitrate Adjustment: CBR / VBR modes ranging from 16 Kbps to 12 Mbps per discrete channel.
Audio Management
Input Capture: HDMI Embedded Stereo Audio or External 3.5mm Analog Audio Line-In per blade card.
Compression Protocols: AAC, AAC+, AAC++, MP3, MP2, G.711a, and G.711u.
Sampling Rate: 44.1 kHz / 48.0 kHz.
Stream Bitrate Allocation: 48 Kbps to 320 Kbps per audio channel.
Network Protocol Architecture
Streaming Engine Protocols: SRT, HTTP, RTSP, RTMP, RTMPS, HLS, UDP, RTP, ONVIF, Unicast, and Multicast.
Multi-Stream Output: Supports up to 4 independent IP streams per individual hardware channel (giving a maximum of 64 output streams simultaneously across a fully loaded unit to target separate CDNs or local recording platforms).
Ethernet Interface: 16× 100M/1000M Base-T Self-Adaptive Gigabit RJ45 Ethernet connections (one dedicated physical network port per blade card).
System Features & Management
Operating System: Embedded HiLinux OS optimized for non-stop 24/7 industrial operational cycles.
User Configuration: Distributed management setup where each blade card functions with its own independent Web GUI dashboard and distinct local IP address (Default base configuration: 192.168.1.168).
Text & Graphic Overlay (OSD): Text, system runtime, dynamic scroll titles, and custom BMP/PNG logo watermarks can be assigned to each channel layer independently.
Administrative Tools: Configuration profile exporting/importing per blade, remote web firmware update management, and high-volume industrial cooling fans integrated into the 3U chassis for thermal stability.
