DATA SHEET: OUPREE OPR-NH401PH 4-CHANNEL H.265 HDMI IP STREAMING ENCODER SKYRS Pakistan Official Distribution Portfolio

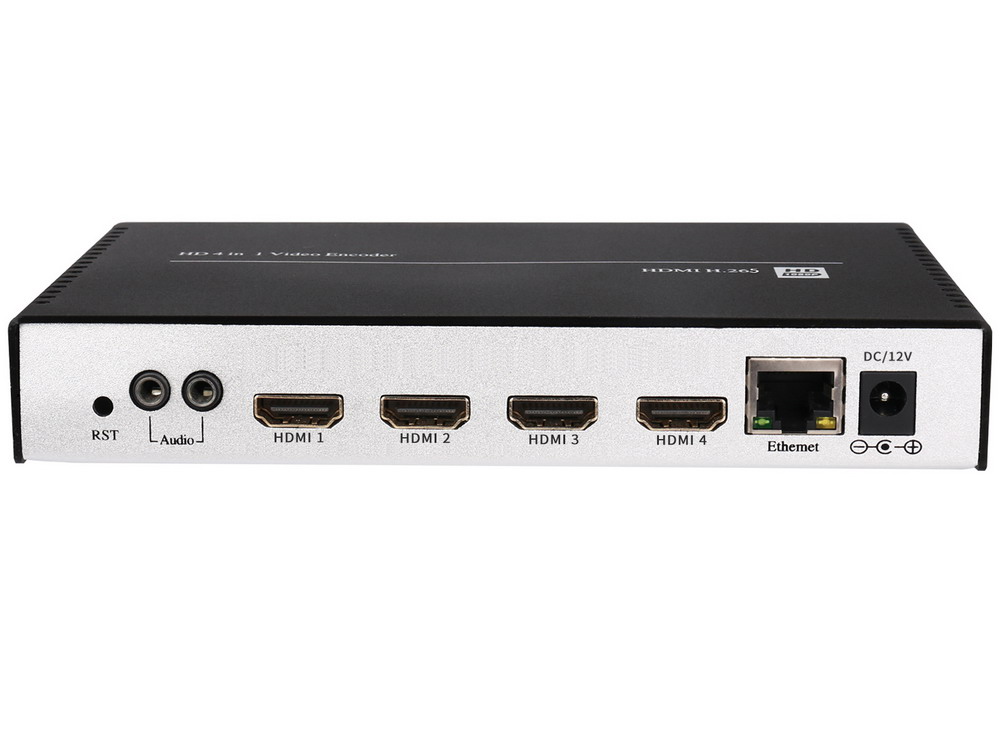

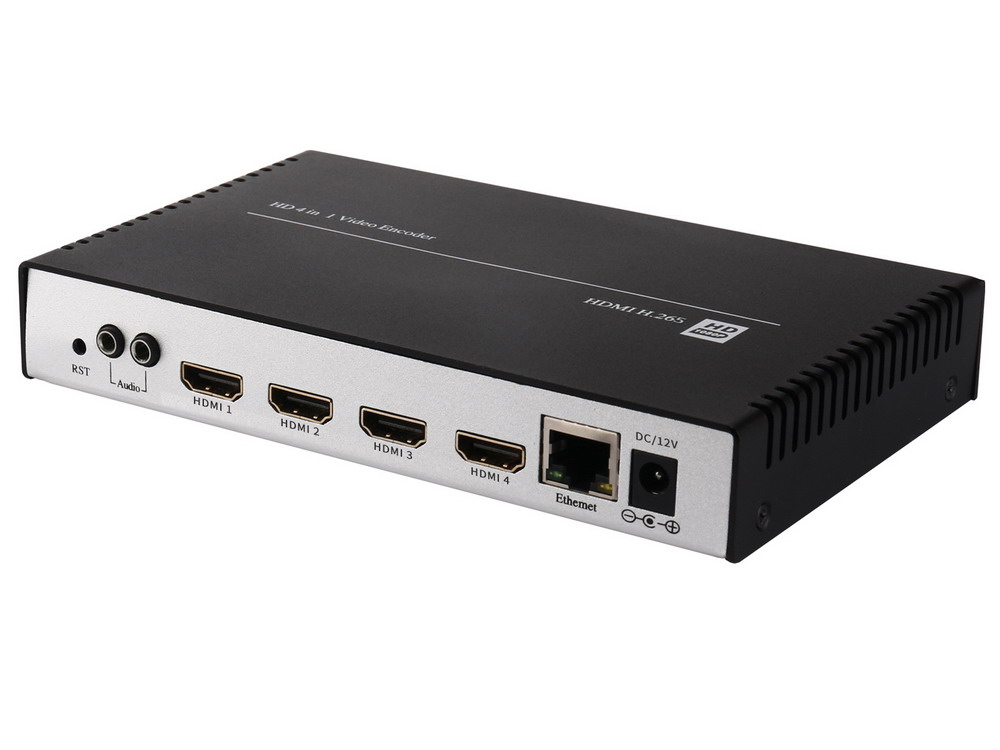

The Oupree OPR-NH401PH is a high-density, professional hardware video encoder designed to compress and stream up to four channels of independent HDMI video inputs simultaneously. Operating on an embedded HiLinux architecture, this multi-channel solution features advanced H.265 (HEVC) and H.264 compression alongside physical HDMI loop-through outputs on all ports. It provides high-efficiency, ultra-stable, and low-latency streaming performance for demanding multi-camera broadcasts, IPTV headends, and security surveillance systems across Pakistan.
PRODUCT VARIANTS BY SKYRS PAKISTAN
SKYRS distributes the OPR-NH401PH series in distinct chassis configurations designed to balance space, power efficiency, and scalability within local enterprise and broadcast facilities in Karachi, Lahore, and Islamabad.
Variant 1: OPR-NH401PH (Standard 1U Half-Rack Desktop)
Form Factor: Compact, standalone desktop housing or half-1U rack layout.
Hardware Array: 4× HDMI inputs and 4× HDMI Loop outputs consolidated on a single unified motherboard.
Deployment: Ideal for mobile OB vans, small production studios, church assemblies, and localized multi-camera event live streaming.
Variant 2: OPR-NH401PH-W (Wireless Dual-Band WiFi Configuration)
Form Factor: Desktop-style 4-channel device equipped with external multi-antenna arrays.
Networking: Combined high-speed wired RJ45 and dual-band (2.4GHz / 5GHz) WiFi integration.
Deployment: Engineered for pop-up outdoor venues, temporary sports arenas, and field broadcast operations where stringing physical LAN lines is impractical.
Variant 3: OPR-NH401PH-1U (Standard Industrial 1U Rackmount)
Form Factor: 19-inch 1U industrial rack chassis with integrated internal power supply and active cooling fans.
Hardware Array: Fixed rack architecture organizing all four video paths neatly for server room deployments.
Deployment: Best suited for enterprise server rooms, central university IT networks, and corporate offices requiring permanent server-rack installation.
TECHNICAL SPECIFICATIONS
Video Processing & Matrix Capability
Compression Standards: H.265 / HEVC (Main Profile) and H.264 / AVC (High / Main / Baseline Profile).
Video Inputs: 4-Channels of independent HDMI 1.4 ports.
Video Loop-Through: 4-Channels of physical, zero-latency hardware-level HDMI outputs for local display monitoring.
Supported Input Resolutions: 1920×1080@60p/50p/60i/50i, 1280×720@60p/50p, 720×576, and lower standard definition resolutions.
Encoded Output Performance: Each channel can independently compress up to 1080P@60fps.
Video Bitrate Adjustment: CBR / VBR modes ranging from 16 Kbps to 12 Mbps per discrete channel.
Audio Management
Input Capture: 4× HDMI Embedded Stereo Audio or 4× External 3.5mm Analog Audio Line-In ports.
Compression Protocols: AAC, AAC+, AAC++, MP3, MP2, G.711a, and G.711u.
Sampling Rate: 44.1 kHz / 48.0 kHz.
Stream Bitrate Allocation: 48 Kbps to 320 Kbps per audio channel.
Network Protocol Architecture
Streaming Engine Protocols: SRT, HTTP, RTSP, RTMP, RTMPS, HLS, UDP, RTP, ONVIF, Unicast, and Multicast.
Multi-Stream Output: Supports up to 4 independent IP streams per individual hardware channel (giving a maximum of 16 output streams simultaneously across the unit to target separate CDNs or local recording platforms).
Ethernet Interface: 100M/1000M Base-T Self-Adaptive Gigabit RJ45 Ethernet connection.
System Features & Management
Operating System: Embedded HiLinux OS optimized for non-stop 24/7 industrial operational cycles.
User Configuration: Centralized Web-based GUI dashboard allowing independent parameter control for all 4 channels (Default IP: 192.168.1.168).
Text & Graphic Overlay (OSD): Text, system runtime, dynamic scroll titles, and custom BMP/PNG logo watermarks can be assigned to each channel layer independently.
Administrative Tools: Configuration profile exporting/importing, remote web firmware update management, and automated system reboot scheduling.
SKYRS PAKISTAN REGIONAL REGISTRATION & DELIVERY
SKYRS backs all multi-channel Oupree encoder lines with official warranties, localized engineering support, and rapid distribution channels throughout Pakistan:
Southern Province (Karachi, Sukkur): Geared for central satellite broadcast stations, industrial security monitoring matrixes, and large maritime operations centers.
Central Province (Lahore, Faisalabad, Multan, Sialkot): Targeted toward multi-campus university lecture routing, large private medical facility feeds, and localized cable TV distribution nodes.
Northern Province (Islamabad, Rawalpindi, Peshawar): Custom-tailored configurations designed for multi-room government assembly broadcasting, secure institutional infrastructure, and national television network hubs.
Skyrs stands proudly as the premier exclusive vendor in Pakistan. Consequently, we provide cutting-edge solutions for modern production setups. Specifically, software houses and high-density call center call centre operations trust us for robust deployments. We specialize in distributing premium oupree VIDEO STREAMING HARDWARE MANUFACTURER infrastructure nationwide.
Furthermore, our deployment teams excel during a complex oupree VIDEO STREAMING HARDWARE MANUFACTURER Migration. We ensure that your broadcasting network experiences minimal downtime. If you require scalable multi-channel distribution, you can easily Buy oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment Lahore/Islamabad. Additionally, our clients can request an official OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder bulk quote for enterprise-scale installations.
The OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder processes live feeds with absolute clarity. For example, it utilizes ultra-efficient HEVC compression. Therefore, it delivers four pristine media streams smoothly over standard local networks from a compact hardware chassis.
[HDMI Input 1] ---\
[HDMI Input 2] ----\---> [OPR-NH401PH Encoder] ---> [IP Network] ---> [Multi-Protocol Output]
[HDMI Input 3] ----/ (H.265 HEVC)
[HDMI Input 4] ---/
To optimize your network setup, refer to the oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment configuration guide. Moreover, network engineers can easily implement custom oupree VIDEO STREAMING HARDWARE MANUFACTURER VLAN configuration rules. This practice ensures proper broadcast isolation and eliminates unnecessary data packet collisions.
If your network expansion demands higher capabilities, consider checking the official OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder throughput limit. In addition, users can execute an immediate OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder memory upgrade for intensive workloads. This hardware component supports advanced video processing, web-based management tools, and continuous recording capabilities simultaneously.
Skyrs ensures a steady supply chain across all major business hubs. Therefore, you can obtain premium routing oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment in your city. We serve clients who need used oupree VIDEO STREAMING HARDWARE MANUFACTURER in various locations.
We deliver to Islamabad, Rawalpindi, and Faisalabad. Businesses often check the oupree VIDEO STREAMING HARDWARE MANUFACTURER OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder price in faisalabad online.
We offer specialized inventory in Karachi. Customers frequently evaluate the competitive oupree VIDEO STREAMING HARDWARE MANUFACTURER oupree VIDEO STREAMING HARDWARE MANUFACTURER oupree price in Karachi.
Our regional distribution extends to Peshawar and Quetta. You can check the OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder price in peshawar instantly. Also, view the oupree VIDEO STREAMING HARDWARE MANUFACTURER Switch OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder price in quetta online.
We understand that budget flexibility matters to growing enterprises. Consequently, we maintain diverse product tiers.
| Equipment Status | Hardware Packaging Options | Support Tools |
| Branded used oupree VIDEO STREAMING HARDWARE MANUFACTURER | Individual Units | OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder datasheet |
| Refurbished oupree VIDEO STREAMING HARDWARE MANUFACTURER | oupree VIDEO STREAMING HARDWARE MANUFACTURER pack price | OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder configuration guide |
Whether you need a standalone module or an OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder rack mount kit, we fulfill orders smoothly. We also provide official OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder security license activation services.
Our premium equipment for call center call centre in pakistan serves a vital business purpose. It captures high-definition training sessions and corporate broadcasts reliably. Meanwhile, our advanced oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment for drone video streaming will be product of choice for surveillance operations. It handles real-time video streaming hdmi wireless streaming hdmi encoding over ethernet ip tasks seamlessly.
The system relies on a stable OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder PoE power budget. Thus, it operates efficiently without complex wiring. Furthermore, our engineers handle every OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder update properly to keep your network secure.
| Performance Metrics | OPR-NH401PH 4 Channels H.265 (All Variants) | Competitor Brand Encoders |
| Density Level | 4 HDMI Channels in 1U Space | Single Channel Per Unit Only |
| Compression Standard | Efficient H.265 HEVC Profile | Legacy H.264 Baseline Encoding |
| System Stability | Embedded HiLinux Architecture | Basic Proprietary Firmware |
| Investment Value | OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder used price 2026 | Higher standard market cost |
You can access the official oupree VIDEO STREAMING HARDWARE MANUFACTURER OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder datasheets download portal through Skyrs. This documentation outlines all technical specifications and power parameters.
If you need to restore factory defaults, check the guide titled “How to reset oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment”. This document walks you through the step-by-step physical and web UI reset procedures.
Navigate to the management dashboard to initialize an upgrade. Then, apply the latest oupree VIDEO STREAMING HARDWARE MANUFACTURER firmware update download package to ensure your device runs the latest security protocols.
Please contact our sales desk to get the updated oupree VIDEO STREAMING HARDWARE MANUFACTURER price in Pakistan. Our regional managers also provide specific details regarding the oupree VIDEO STREAMING HARDWARE MANUFACTURER oupree VIDEO STREAMING HARDWARE MANUFACTURER oupree price in kpk.
Skyrs serves as the trusted oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment series distributor Pakistan. We provide original components, warranties, and direct technical support across the country.
