Here is the short, professional data sheet for the HDMI-based model tailored for SKYRS in Pakistan.

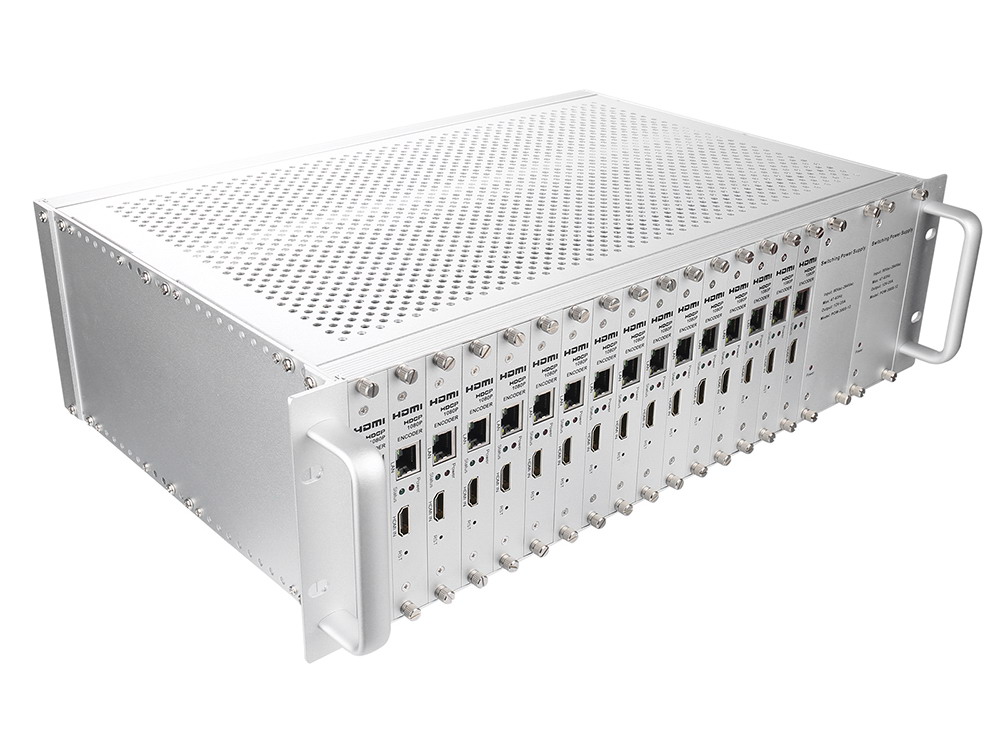

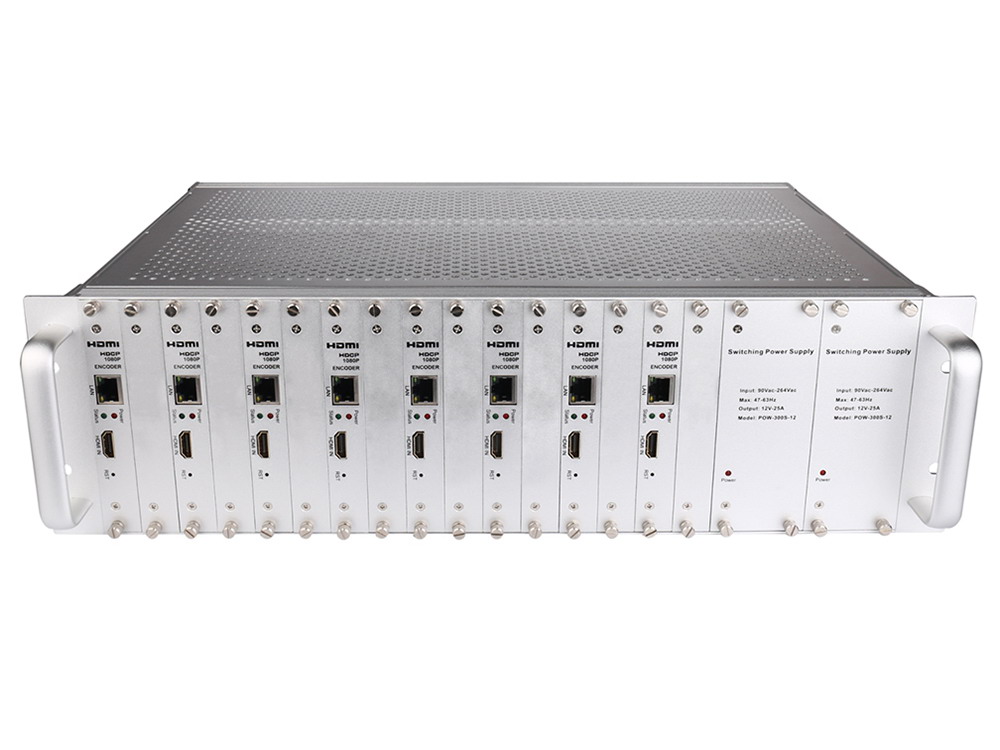

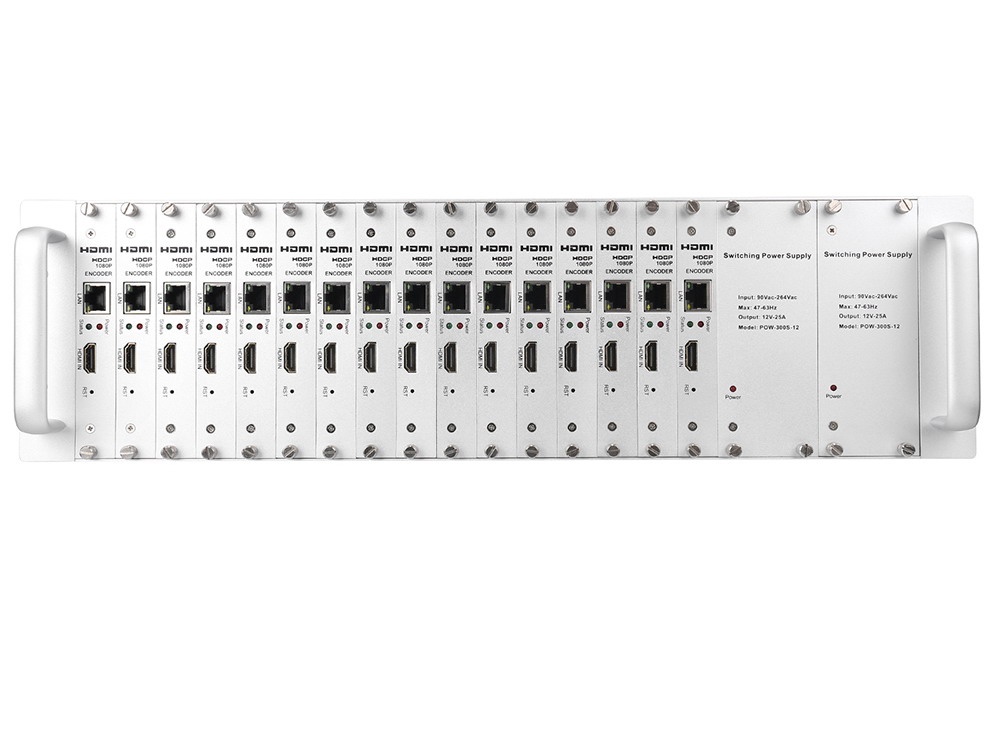

3U Rack-Mounted 16-Channel H.264 HDMI IP Streaming Encoder
The OPR-NH1600N is a high-density, cost-effective 3U rack-mounted video encoding solution designed for professional IPTV systems, educational broadcasting, hotel TV networks, and campus-wide media streaming across Pakistan. It supports up to 16 independent HDMI inputs, utilizing stable H.264 (AVC) compression to deliver crisp high-definition video over local networks and internet streams.
High-Density 16-Channel HDMI Support: Packs 16 HDMI input channels into a single 3U rack-mountable chassis, reducing space and power overhead.
Highly Compatible H.264 Encoding: Employs industry-standard H.264 (AVC) baseline/main/high profile encoding, ensuring universal compatibility with older legacy media players, set-top boxes, and browsers.
Flexible Streaming Protocols: Supports mainstream protocols including RTMP, RTSP, HTTP, HLS, UDP, Multicast, and Unicast for seamless integration with national and global CDNs.
Independent Sub-Streams: Each channel supports primary and secondary stream configurations, allowing for simultaneous high-res local archiving and lower-res internet streaming.
Audio Processing: Supports HDMI embedded audio with AAC/MP3/G.711 compression variants.
SKYRS offers localized deployment variants of the OPR-NH1600N to align with the infrastructure requirements of major Pakistani cities:
Video Input: 16 x HDMI 1.4 (Type A Interface)
Resolution Input/Output: Up to 1080p at 60fps (down-scaling supported)
Bitrate Range: 16Kbps to 12Mbps per channel (CBR/VBR modes)
GOP Structure: IBBP / IPPP / I-Frame adjustable
Network Interface: 1000M RJ45 Full-Duplex Ethernet interfaces
Management: Web UI control panel with password protection and remote WAN access capabilities
SKYRS Localized Assurance: The OPR-NH1600N variants distributed across Pakistan feature localized firmware optimizations designed to maintain stable stream performance even during peak internet traffic hours on major local ISPs. Includes a 1-year local warranty backed by SKYRS support.
