SKYRS Pakistan Technical Specification Document Equipment: OPR-T16 Professional ST-Mux Transcoder with ASI Input/Output

PRODUCT OVERVIEW

The OPR-T16 is a high-density, carrier-grade Stream Transcoder and Multiplexer (ST-Mux) designed for digital television headends, terrestrial broadcasting (DTMB/DVB-T2), and multi-channel IPTV operations. This enterprise hardware appliance bridges physical broadcast infrastructure and modern IP networks by integrating high-throughput IP processing with dedicated ASI (Asynchronous Serial Interface) hardware ports.

It is designed for real-time transcoding between H.264 (AVC), H.265 (HEVC), and MPEG-2 formats, while offering advanced transport stream multiplexing, PID remapping, and PSI/SI table generation. Distributed by SKYRS across Pakistan, the OPR-T16 provides the reliability and processing power required to manage dense metropolitan television networks and national satellite downlinks.

KEY PRODUCT FEATURES

• High-Density Bidirectional Transcoding: Simultaneously processes multiple channels of high-definition or standard-definition video across various codecs (H.265, H.264, MPEG-2).

• Advanced Hardware ASI Matrix: Equipped with physical BNC ASI input and output interfaces for direct connection to legacy satellite receivers, modulators, and scramblers.

• Integrated Stream Multiplexing: Built-in ST-Mux engine supports comprehensive PID filtering, remapping, program parsing, and auto-generation of PSI/SI (PAT, PMT, NIT, SDT) tables.

• Carrier-Grade Protocol Engine: Natively handles SRT (Secure Reliable Transport), UDP, RTP, RTSP, RTMP, and HLS protocols for seamless IP-to-IP and ASI-to-IP routing.

• Dynamic Bitrate & Resolution Scaling: Real-time trans-rating and downscaling capabilities to adapt high-bandwidth backbone feeds for local broadband or mobile network distribution.

• Industrial Fault Tolerance: Designed for 24/7/365 uninterrupted headend operations with automatic data path bypass options and continuous input signal monitoring.

TECHNICAL SPECIFICATIONS

Hardware Interfaces

• ASI Interfaces: 4 to 8 x BNC ASI Ports (Software configurable as Input or Output)

• IP Interfaces: 2 x 100/1000Base-T RJ-45 Gigabit Ethernet Data Ports, 1 x Dedicated RJ-45 Management Port

• Optional Upgrades: Dual 10G SFP+ Fiber optic interfaces for ultra-high-throughput deployments

Video and Audio Transcoding

• Video Input Resolution: 1080p, 1080i, 720p, 576i (PAL), 480i (NTSC)

• Compression Profiles: H.265/HEVC (Main/Main 10), H.264/AVC (Baseline/Main/High), MPEG-2 (Main/Main)

• Audio Codec Transcoding: MPEG-1 Layer II, LC-AAC, HE-AAC, AC3 (Dolby Digital) passthrough or down-mixing

• Bitrate Control: CBR (Constant Bit Rate) / VBR (Variable Bit Rate), 0.5 Mbps to 20 Mbps per channel

Multiplexing and Processing Parameters

• Max Multiplexing Capacity: Up to 256 IP inputs and 4 independent ASI inputs multiplexed into output streams

• Packet Length: Automatic detection and processing of 188 / 204 byte ASI packets

• Processing Functions: PID remapping, PCR correction, accurate TS burst/uniform output smoothing, null packet insertion/deletion

Physical and Environmental

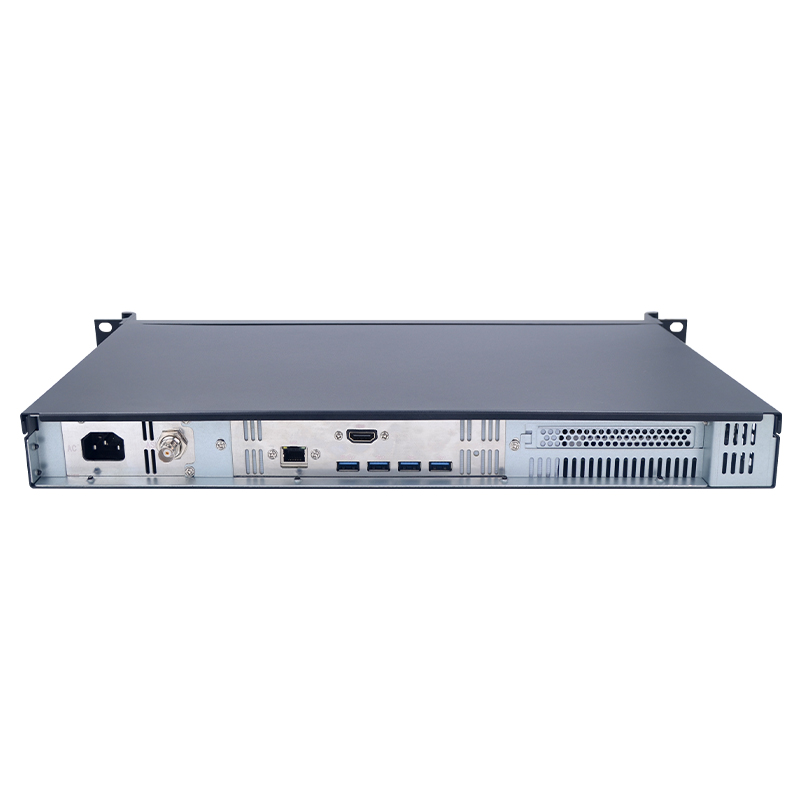

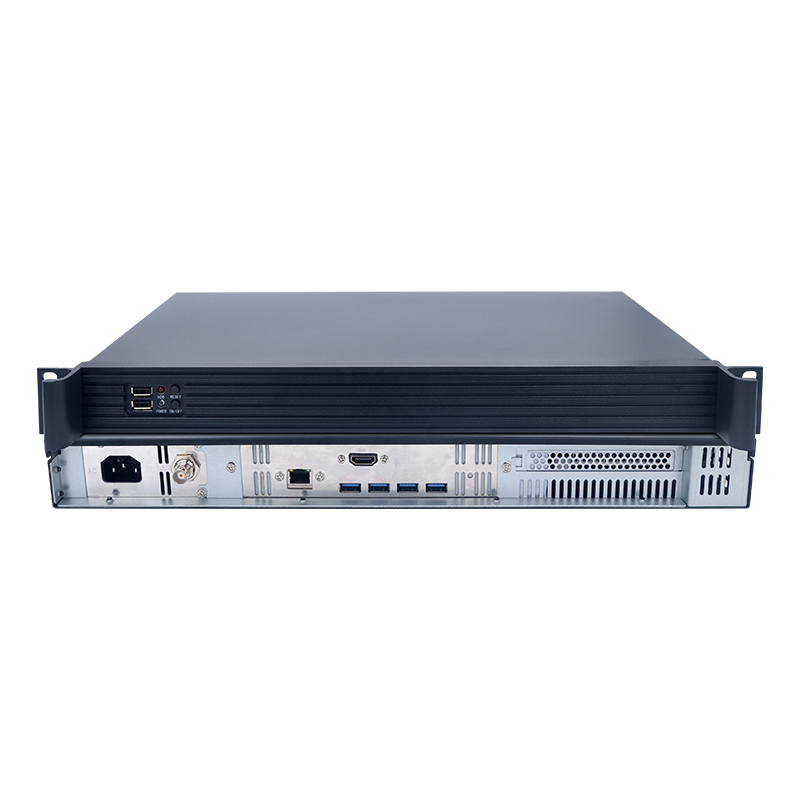

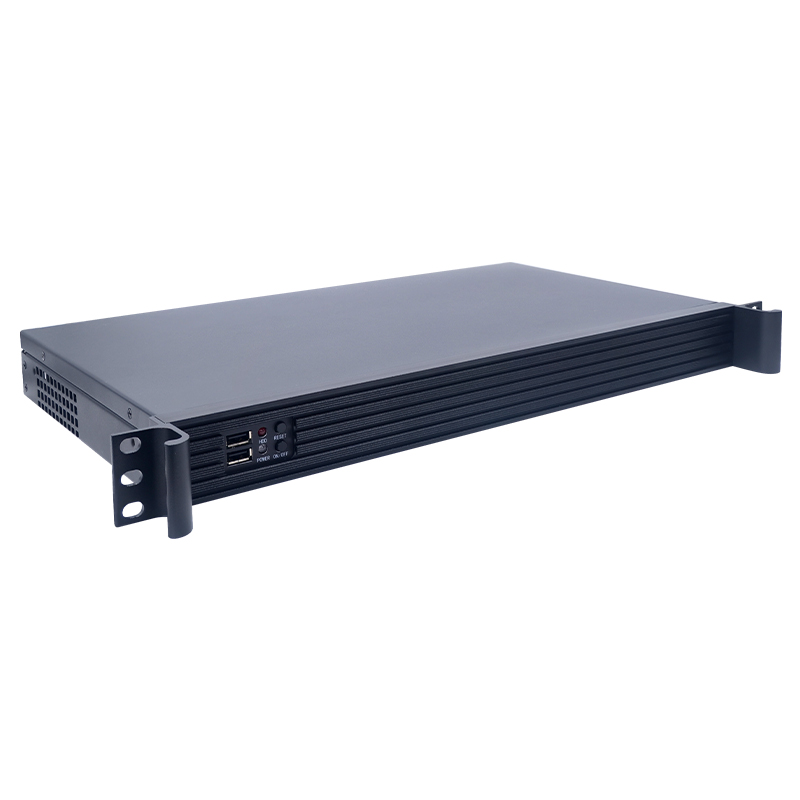

• Enclosure: Standard 19-inch 1U Rack-mount heavy-duty steel chassis

• Power Configuration: Redundant, hot-swappable dual power supplies (AC 100-240V, 50/60Hz)

• Operating Temperature: 0 degrees Celsius to 50 degrees Celsius

• Cooling Architecture: Smart temperature-controlled multi-fan cooling array

REGIONAL PRODUCT VARIANTS FOR SKYRS PAKISTAN

To address the specific infrastructural constraints, legacy cable configurations, and high-tier fiber layouts found across major cities in Pakistan, the OPR-T16 ST-Mux is available in four specialized hardware variants:

OPR-T16-BASE (Standard Broadcast Edition)

• Core Configuration: 4 x ASI Interfaces (2 In / 2 Out) + Dual Gigabit IP Ports. Optimized for baseline H.264/MPEG-2 transcoding and multiplexing.

• Primary Deployment Locations: Mid-tier cable networks, digital headends, and localized distribution setups in Faisalabad, Gujranwala, Hyderabad, and Sukkur.

OPR-T16-HEVC (H.265 Enterprise Transcoder)

• Core Configuration: Upgraded internal hardware DSP modules providing full-density H.265 encoding/decoding. Cuts core network transport bandwidth requirements by half.

• Primary Deployment Locations: High-efficiency IP networks, digital terrestrial backhauls, and long-distance video links serving Peshawar, Quetta, and rural regional hubs.

OPR-T16-MAX (High-Density 8-ASI Edition)

• Core Configuration: Expanded physical interface suite featuring 8 x fully independent BNC ASI hardware ports alongside integrated 10G SFP+ network lines.

• Primary Deployment Locations: Major national media broadcast hubs, central teleports, and large-scale metro FTTH headends in Karachi (Korangi/I.I. Chundrigar) and Lahore (Gulberg/DHA).

OPR-T16-SRT (Secure Cloud Transport Edition)

• Core Configuration: Features an integrated low-latency SRT gateway encryption chip alongside standard multiplexing logic, allowing stable video ingestion over lossy public internet links.

• Primary Deployment Locations: Inter-city master control room links, secure remote studio feeds, and cross-provincial network links operating out of Islamabad and Rawalpindi.

TARGET APPLICATION SCENARIOS IN PAKISTAN

• Digital Cable (DVB-C) Headend Consolidation: Allows traditional cable operators to aggregate various scrambled satellite feeds via ASI, remap and clean the PID tables, transcode them into efficient bitrates, and output them cleanly to QAM modulators.

• Satellite-to-IP Gateway Operations: Bridges high-value incoming satellite transponder streams directly onto local metropolitan fiber-to-the-home (FTTH) networks as localized IPTV multicast streams.

• Nationwide Media Content Localization: Enables broadcast networks to ingest a single master national feed, strip out redundant regional channels via the built-in ST-Mux, inject local city advertisement streams, and re-transmit tailored programming to separate local markets.
