SKYRS Pakistan Technical Specification Document Equipment: OPR-NH200PSD Professional H.265 4K HDMI / SDI / VGA / CVBS All-in-One Video Decoder
PRODUCT OVERVIEW
The OPR-NH200PSD is a premium, high-definition universal hardware decoding appliance engineered for maximum interface versatility. Built to serve demanding broadcast, surveillance, and multi-display environments, this single hardware unit handles high-tier H.265 (HEVC) and H.264 (AVC) decoding up to ultra-high-definition 4K resolutions.
What sets the OPR-NH200PSD apart is its comprehensive output array, featuring digital HDMI, broadcast-grade 3G-SDI, legacy analog VGA, and composite CVBS interfaces that can output video simultaneously. Distributed by SKYRS across Pakistan’s major municipal infrastructures, this system provides absolute flexibility for video walls, newsroom monitoring, remote IP feed playout, and legacy display integration.
KEY PRODUCT FEATURES
Ultimate Quad-Output Array: Features 1 x HDMI, 1 x 3G-SDI, 1 x VGA, and 1 x CVBS physical output ports working in synchronous or independent playout configurations.
High-Tier 4K Decoding: Smoothly processes H.265/HEVC and H.264/AVC IP network streams up to 3840×2160 at 30fps over HDMI, and up to 1080p at 60fps over SDI.
Broad Protocol Ingestion Suite: Comprehensive native integration for SRT (Secure Reliable Transport), HTTP, HLS, RTMP/RTMPS, RTSP, ONVIF, and UDP/RTP (Unicast/Multicast).
Multi-Channel Layout Matrix: Supports multi-stream parsing capable of split-screen matrix rendering (1, 4, 9, or 16 screen divisions via single display output).
Audio Flexibility: Seamlessly separates embedded digital audio to physical 3.5mm independent stereo analog jacks alongside HDMI/SDI lines.
Low-Latency Transmission Core: Optimized DSP pipeline decreases local decode turnaround latency to under 200ms when paired with compatible encoders.
TECHNICAL SPECIFICATIONS
Input and Output Parameters
Network Ingestion Link: 1 x 100/1000Mbps Adaptive RJ-45 Gigabit Ethernet port
Digital Video Outputs: 1 x HDMI (Supports up to 4K @ 30fps), 1 x BNC 3G-SDI (Supports up to 1080p @ 60fps)
Analog Video Outputs: 1 x DB-15 VGA (Supports up to 1080p @ 60fps), 1 x BNC CVBS (PAL / NTSC auto-detection)
Audio Outputs: Embedded digital output over HDMI/SDI + 1 x 3.5mm Stereo Jack
Video Decoding Capabilities
Stream Video Codecs: H.265 / HEVC (Main Profile), H.264 / AVC (Baseline / Main / High Profile), MJPEG
Decoding Densities: 1 Channel x 4K @ 30fps, or 4 Channels x 1080p @ 30fps, or 9 Channels x 720p @ 30fps
Maximum Bitrate Support: Handles high-bitrate media processing up to 40 Mbps per stream
Color Depth Architecture: 8-bit / 10-bit processing pipelines
System Management
Operating Architecture: Dedicated embedded Linux platform for uninterrupted 24/7/365 mission-critical tasks
Device Management: Cross-browser responsive Web UI (Default IP Address: 192.168.1.169)
Diagnostics Engine: On-screen audio level meters, packet loss notification graphs, and stream resolution indicators
Physical and Power Profiles
Housing Form Factor: Solid industrial steel mini-enclosure (Optional 1U rack-mount brackets available)
Power Supply Unit: 12V DC, 2A external mains transformer line
Power Draw: Ultra-low active utilization (Less than 8 Watts maximum load)
Thermal Limits: Operating safely from -10 degrees Celsius up to 60 degrees Celsius
REGIONAL PRODUCT VARIANTS FOR SKYRS PAKISTAN
To address varying deployment layouts, localized infrastructure limitations, and broadcast specifications in Pakistan’s primary markets, the OPR-NH200PSD is available in four tailored variants through SKYRS:
OPR-NH200PSD-BC (Broadcast Playout Edition)
Specialization: Upgraded BNC SDI drivers matching professional broadcasting impedances. Ideal for TV studio integration, master control rooms, and production switchers.
Core Municipal Availability: National network headquarters, media cities, and production environments in Karachi, Lahore, and Islamabad.
OPR-NH200PSD-SRT (Secure Internet Gateway Variant)
Specialization: Integrates hardware-accelerated ARQ (Automatic Repeat reQuest) logic specifically tuned for stable SRT streaming over volatile public ISP backhauls.
Core Municipal Availability: Remote regional bureaus, DSNG uplink centers, and point-to-point inter-city connections spanning Peshawar, Quetta, and Islamabad.
OPR-NH200PSD-M16 (High-Density Surveillance Matrix Variant)
Specialization: Expanded RAM allocation allowing simultaneous rendering of up to 16 separate low-bitrate ONVIF/RTSP camera feeds onto a single surveillance video wall screen.
Core Municipal Availability: Safe city projects, corporate campus control hubs, and industrial zones within Faisalabad, Multan, and Rawalpindi.
OPR-NH200PSD-IND (Fanless Thermal Variant)
Specialization: Housed inside a highly efficient, passively cooled heavy-aluminum finned chassis optimized to dissipate heat without mechanical fans in non-air-conditioned enclosures.
Core Municipal Availability: Local cable operators, distributed network closets, and outdoor terminal points across high-temperature sectors like Gujranwala, Hyderabad, and Sukkur.
TARGET APPLICATION SCENARIOS IN THE PAKISTANI MARKET
Professional TV Studio Monitoring: Decodes high-quality H.265 network transport streams directly into locking 3G-SDI inputs on professional broadcast switchers or field monitors.
Hybrid Legacy Video Walls: Solves the challenge of utilizing old and new displays side-by-side by driving modern 4K HDMI screens, older VGA IT monitors, and traditional analog CVBS test displays from the same box.
Safe City & CCTV Integration: Acts as a dedicated hardware endpoint decoder to organize multiple IP security cameras into clear grid layouts for security personnel without needing complex, high-power PC installations.
Skyrs is the only vendor in Pakistan that has oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment for call center call centre and software houses. Therefore, we deliver unmatched hardware deployment options countrywide.
Businesses can acquire the best oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment directly through our nationwide network. We satisfy your high-density corporate needs completely.
Our supply chains remain active across all provinces. Consequently, companies utilize used oupree VIDEO STREAMING HARDWARE MANUFACTURER in different cities like karachi , lahore , islamabad, rawalpindi , faisalabad etc and equipment for call center call centre in pakistan.
If you require regional pricing metrics, we provide the oupree price in Karachi instantly. Moreover, clients can discover the updated OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder price in peshawar.
We maintain the standard oupree VIDEO STREAMING HARDWARE MANUFACTURER price in Pakistan to assist network planners. Meanwhile, you can verify the stable OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder price in faisalabad online.
Our logistics network safely extends across northern areas. For instance, we offer the official oupree VIDEO STREAMING HARDWARE MANUFACTURER price in kpk.
Furthermore, you can check the OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder price in quetta today. If your team needs immediate deployment, please choose to “Buy oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment Lahore/Islamabad”.
Corporate infrastructures require genuine equipment, so we supply verified Branded used oupree VIDEO STREAMING HARDWARE MANUFACTURER units. Alternatively, budget-conscious groups can select a certified Refurbished oupree VIDEO STREAMING HARDWARE MANUFACTURER device.
Every order includes complete documentation, featuring the localized oupree VIDEO STREAMING HARDWARE MANUFACTURER pack price. When you scale up your operations, the secure oupree VIDEO STREAMING HARDWARE MANUFACTURER Migration toolkit ensures continuous transmission.

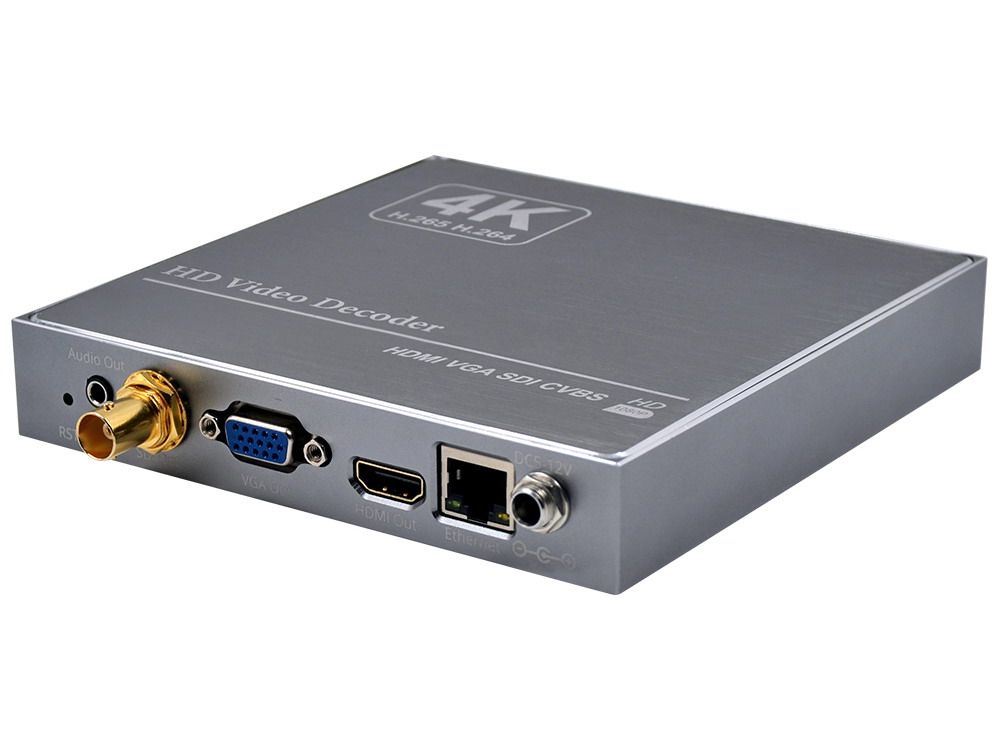

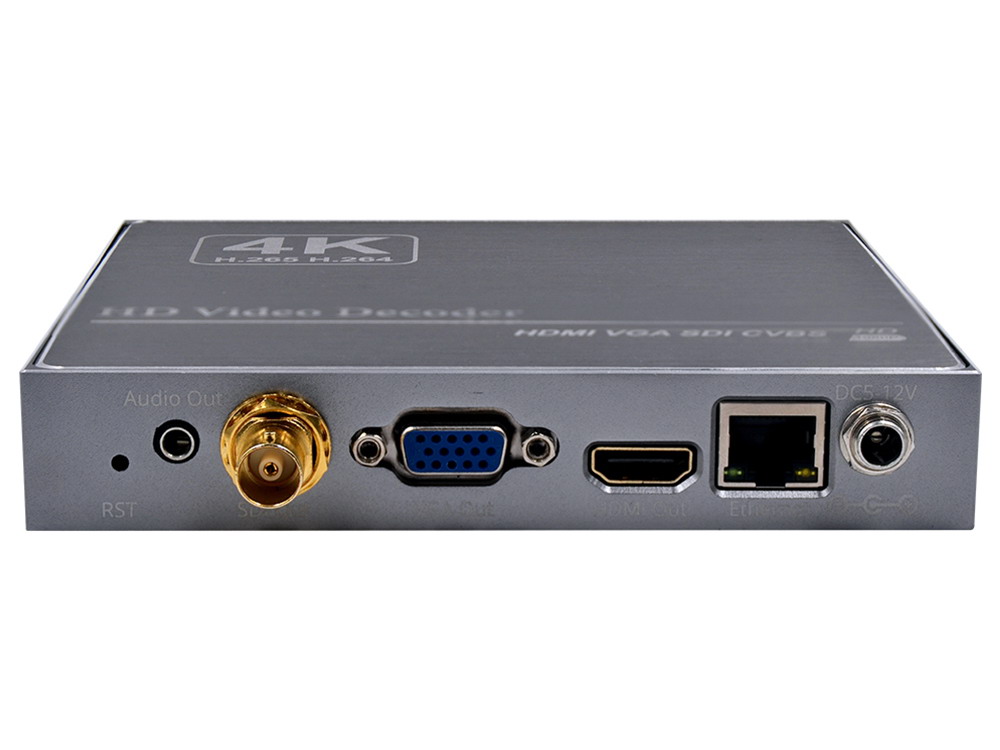

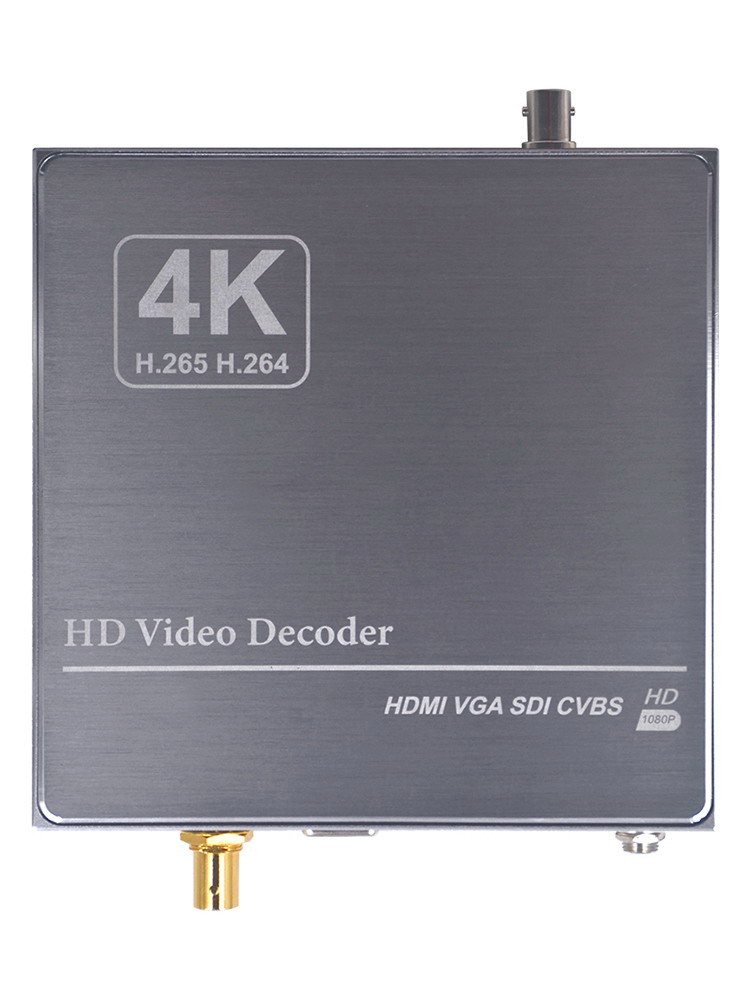

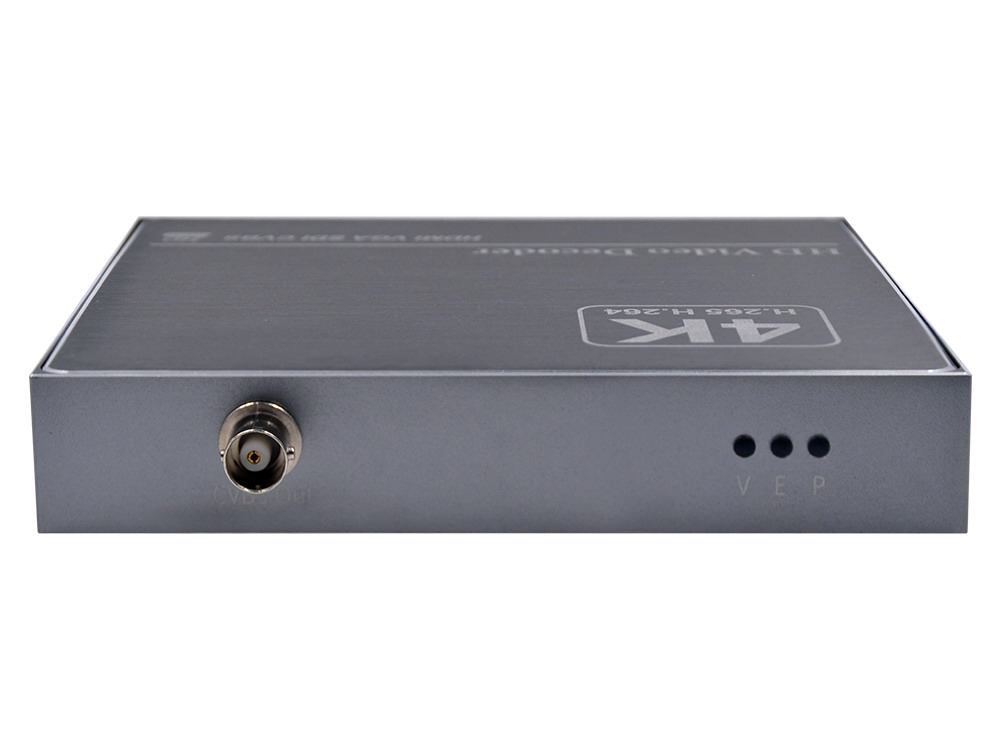

Figure 1: Official OPR-NH200PSD Multi-Output Hardware via Oupree
We present the Oupree OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder all variants for heavy multi-channel workloads. For initial provisioning, check the OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder configuration guide.
Our engineering team helps monitor the specific OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder throughput limit during peaks. For architectural assessments, look at the comprehensive datasheet.
If processing requirements scale upward, users can apply an OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder memory upgrade. Additionally, every chassis fits standard systems using a dedicated OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder rack mount kit.
This hardware executes intensive video streaming hdmi wireless streaming hdmi encoding over ethernet ip protocols smoothly. Thus, we support different variants of oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment for drone video streaming will be product options for operations.
Administrators can install the newest OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder update easily. To unlock full functionality, you must complete the OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder security license activation.
For asset management, the verified OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder used price 2026 helps projection models. This platform functions perfectly within any demanding call center call centre center.
Our team delivers an all-inclusive oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment configuration guide for immediate hardware deployment. Network administrators can isolate data pathways by implementing the oupree VIDEO STREAMING HARDWARE MANUFACTURER VLAN configuration workflow.
If unexpected errors occur, you should review the guide “How to reset oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment”. To maintain security, download the authentic oupree VIDEO STREAMING HARDWARE MANUFACTURER firmware update download files immediately.
Engineers can visit the “oupree VIDEO STREAMING HARDWARE MANUFACTURER OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder datasheets download” directory. Finally, always calculate the exact OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder PoE power budget beforehand.
Skyrs operates as the premier oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment series distributor Pakistan. Below is a feature analysis with traditional transmission items:
| System Metric | Oupree OPR-NH200PSD All Variants | Standard Alternative Decoder |
| Output Interfaces | HDMI, SDI, VGA, and CVBS Analog | Single Output Format Only |
| Decoding Engine | Dual H.265 HEVC / H.264 AVC | Basic H.264 Legacy Only |
| Streaming Types | SRT, HTTP, HLS, RTMP, RTSP, UDP | Generic RTSP / RTMP Only |
| Maximum Resolution | Ultra HD 4K Performance | Maximum 1080P Limit |
| Routing Control | Premium oupree VIDEO STREAMING HARDWARE MANUFACTURER Switch integration | Standalone Unmanaged Port |
Procurement teams can request a formal “OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder bulk quote”. You can buy your units directly from Skyrs Pakistan for full warranty protection.
The system features universal hardware output pathways. Because it integrates HDMI, SDI, VGA, and CVBS terminals simultaneously, you can output a single IP network stream to different legacy and modern display architectures without external converters.
The unit runs an open-source embedded system kernel. Therefore, it maintains complete harmony with high-capacity networks, multi-protocol configurations, and specialized routing oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment matrices.
Administrators can execute a secure restore through the local management dashboard. Alternatively, apply the steps outlined in “How to reset oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment” to quickly restore factory defaults.
Our enterprise fulfillment team coordinates wholesale system distributions across Pakistan. Please reach out to our desk directly to secure an official “OPR-NH200PSD H.265 4K HDMI SDI VGA CVBS Video Decoder bulk quote” configured for your layout.
