SKYRS Pakistan Technical Specification Document Equipment: OPR-HD200H Professional Dual-Channel HDMI to USB 3.0 Video Capture Box
PRODUCT OVERVIEW
The OPR-HD200H is a commercial-grade, high-density hardware capture appliance designed to ingest two independent HDMI audio and video signals simultaneously into a single computing environment. Utilizing a high-speed SuperSpeed USB 3.0 interface pipeline, this compact unit captures dual-channel, real-time, uncompressed video up to 1080p at 60 frames per second per channel with minimal latency.
Built with native driver-free UVC (USB Video Class) and UAC (USB Audio Class) compliance, it interfaces seamlessly with Windows, macOS, and Linux systems. Distributed across Pakistan by SKYRS, the OPR-HD200H serves as an essential hardware component for multi-camera live streaming, corporate presentation recording, high-end video conferencing, and medical imaging archives in major municipal markets.
KEY PRODUCT FEATURES
Concurrent Dual-Channel Ingestion: Features 2 physical HDMI inputs on a single housing, allowing two independent video sources to be mixed or processed separately on the host computer.
High-Definition Performance: Seamlessly processes and captures incoming signals up to 1920×1080 at 60Hz per channel, delivering smooth image transitions and preserving fine details.
Universal Driverless Architecture: Full plug-and-play UVC/UAC implementation requires no manual driver installations, offering instant recognition across mainstream production software like OBS Studio, vMix, Wirecast, Zoom, and Microsoft Teams.
Hardware-Accelerated Processing Core: An internal FPGA chip handles video scaling, frame rate normalization, and color space conversion directly on the device hardware, completely removing processing overhead from the host PC’s CPU.
Discrete Audio Routing: Captures embedded digital audio cleanly from both HDMI streams, preserving channel separation and lipsync alignment during long production sessions.
Premium Thermal Shielding: Housed in a durable, unified aluminum enclosure that acts as an efficient passive heatsink, ensuring stable 24/7 capture performance in warm regional climates.
TECHNICAL SPECIFICATIONS
Input and Host Interfaces
Video Inputs: 2 x HDMI (Version 1.4a compliant with independent EDID handshaking)
Host Terminal Interface: 1 x USB 3.0 Type-A port (Backwards compatible with USB 2.0 at reduced bandwidth/frame rates)
Audio Ingress: Embedded Digital HDMI Audio from both channels
Processing and Capture Parameters
Supported Input Resolutions: 1920x1080p (60/50/30fps), 1920x1080i (60/50fps), 1280x720p (60fps), 576p, 480p
Maximum Capture Output: Up to 1920x1080p at 60 frames per second per channel simultaneously
Raw Video Formats: YUY2, NV12, and high-efficiency MJPEG (Software selectable)
Color Space Mapping: Hardware-driven conversion matching RGB, YUY2, and sRGB standards
Audio Sampling Engine: Dual-stream 48 kHz UAC Linear Stereo capture pulse
Physical and Environmental
Device Footprint: Compact, portable desktop layout (Approximately 98mm x 60mm x 15mm)
Unit Net Weight: Approximately 105 grams
Electrical Draw: Bus-powered directly via the USB 3.0 interface (Consumes less than 4 Watts maximum load)
Operational Temperature Boundaries: -10 degrees Celsius to 65 degrees Celsius
REGIONAL PRODUCT VARIANTS FOR SKYRS PAKISTAN
To align with specific corporate IT environments, multi-camera media workflows, and connectivity needs across Pakistan’s major municipal hubs, the OPR-HD200H series includes four targeted operational variations:
OPR-HD200H-STD (Standard Multi-Camera Variant)
Hardware Profile: Standard external USB 3.0 Type-A dual-input box. Optimized for quick dual-camera laptop streaming rigs, independent production groups, and mobile webcasting.
Primary City Availability: High-volume electronics hubs, freelance production rings, and commercial retail tech markets across Karachi, Lahore, and Faisalabad.
OPR-HD200H-TC (Native Type-C Mobile Variant)
Hardware Profile: Replaces the standard Type-A terminal link with a native, high-retention USB Type-C connector interface. Designed for direct integration with thin laptops, modern workstations, and smart mobile devices.
Primary City Availability: Corporate boardrooms, creative digital agencies, and modern shared workspaces within Islamabad, Clifton/DHA (Karachi), and Gulberg (Lahore).
OPR-HD200H-AUDIO (Auxiliary Audio Mixing Variant)
Hardware Profile: Integrated with an additional physical 3.5mm Analog Audio Input and an independent 3.5mm Headphone Output jack directly on the chassis, allowing users to inject external mixer feeds or local commentary over the dual HDMI streams.
Primary City Availability: E-sports broadcast networks, gaming arenas, educational studios, and local television stations based in Lahore, Rawalpindi, and Islamabad.
OPR-HD200H-MED (Galvanically Isolated Medical Edition)
Hardware Profile: Built with internal medical-grade electrical isolation to block stray currents, making it completely safe to link two medical visualization outputs (such as surgery camera + patient monitor) directly to recording PCs.
Primary City Availability: Specialized teaching hospitals, diagnostic labs, and medical universities located across Karachi, Lahore, and Peshawar.
TARGET APPLICATION SCENARIOS IN THE PAKISTANI MARKET
Dual-Source Corporate Presentations: Allows enterprise meeting spaces to ingest a presenter’s face camera feed and a laptop slide deck feed simultaneously into video conferencing platforms without requiring two separate capture cards.
Multi-Camera Live Webcasting: Coordinates small-footprint, professional streaming setups for ceremonies, political gatherings, and panel discussions by feeding two direct camera lines into software switchers like vMix.
Academic Lecture Ingestion: Enables universities and technical institutions to capture both the professor’s podium camera and a high-definition hardware document camera cleanly for remote learning management portals.
Elite Dual HDMI Video Capture Infrastructure in Pakistan
Skyrs is the only vendor in Pakistan that has oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment for call center call centre and software houses. Therefore, we deliver unmatched hardware deployment options countrywide.
Businesses can acquire the best oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment directly through our nationwide network. We satisfy your high-density corporate needs completely.
Our supply chains remain active across all provinces. Consequently, companies utilize used oupree VIDEO STREAMING HARDWARE MANUFACTURER in different cities like karachi , lahore , islamabad, rawalpindi , faisalabad etc and equipment for call center call centre in pakistan.
If you require regional pricing metrics, we provide the oupree price in Karachi instantly. Moreover, clients can discover the updated OPR-HD200H Dual HDMI Video Capture Card price in peshawar.
We maintain the standard oupree VIDEO STREAMING HARDWARE MANUFACTURER price in Pakistan to assist network planners. Meanwhile, you can verify the stable OPR-HD200H Dual HDMI Video Capture Card price in faisalabad online.
Our logistics network safely extends across northern areas. For instance, we offer the official oupree VIDEO STREAMING HARDWARE MANUFACTURER price in kpk.
Furthermore, you can check the OPR-HD200H Dual HDMI Video Capture Card price in quetta today. If your team needs immediate deployment, please choose to “Buy oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment Lahore/Islamabad”.
Corporate infrastructures require genuine equipment, so we supply verified Branded used oupree VIDEO STREAMING HARDWARE MANUFACTURER units. Alternatively, budget-conscious groups can select a certified Refurbished oupree VIDEO STREAMING HARDWARE MANUFACTURER device.
Every order includes complete documentation, featuring the localized oupree VIDEO STREAMING HARDWARE MANUFACTURER pack price. When you scale up your operations, the secure oupree VIDEO STREAMING HARDWARE MANUFACTURER Migration toolkit ensures continuous transmission.

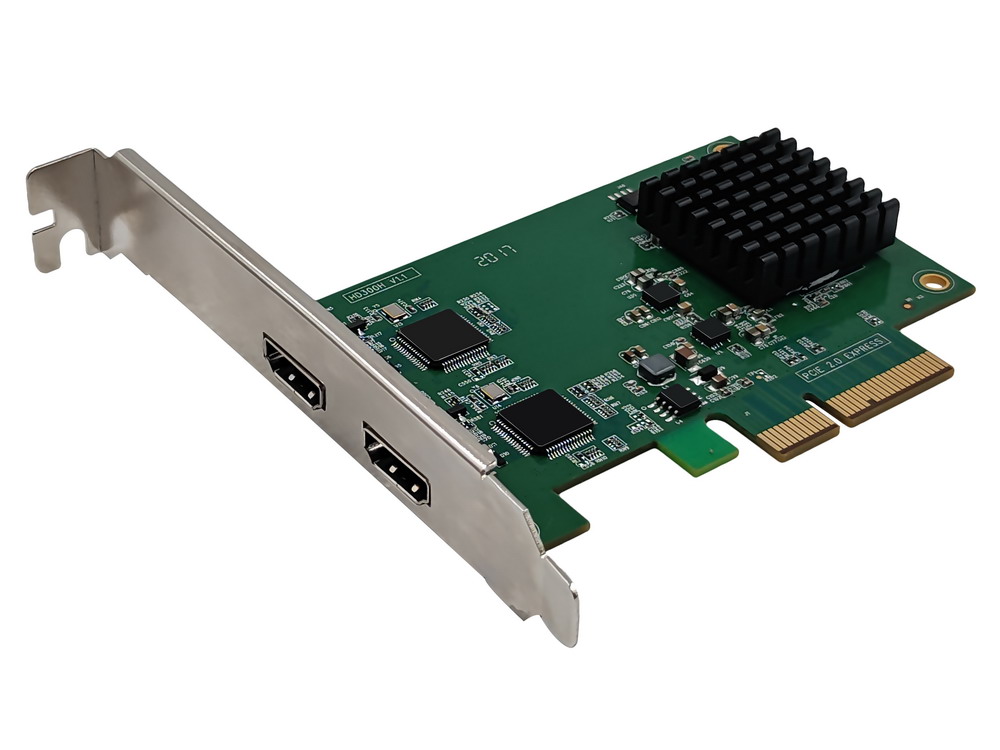

Figure 1: Official OPR-HD200H Dual HDMI Capture Card via Oupree
We present the Oupree OPR-HD200H Dual HDMI Video Capture Card all variants for heavy multi-channel workloads. For initial provisioning, check the OPR-HD200H Dual HDMI Video Capture Card configuration guide.
Our engineering team helps monitor the specific OPR-HD200H Dual HDMI Video Capture Card throughput limit during peaks. For architectural assessments, look at the comprehensive datasheet.
If processing requirements scale upward, users can apply an OPR-HD200H Dual HDMI Video Capture Card memory upgrade. Additionally, every chassis fits standard systems using a dedicated OPR-HD200H Dual HDMI Video Capture Card rack mount kit.
This hardware executes intensive video streaming hdmi wireless streaming hdmi encoding over ethernet ip protocols smoothly. Thus, we support different variants of oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment for drone video streaming will be product options for operations.
Administrators can install the newest OPR-HD200H Dual HDMI Video Capture Card update easily. To unlock full functionality, you must complete the OPR-HD200H Dual HDMI Video Capture Card security license activation.
For asset management, the verified OPR-HD200H Dual HDMI Video Capture Card used price 2026 helps projection models. This platform functions perfectly within any demanding call center call centre center.
Our team delivers an all-inclusive oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment configuration guide for immediate hardware deployment. Network administrators can isolate data pathways by implementing the oupree VIDEO STREAMING HARDWARE MANUFACTURER VLAN configuration workflow.
If unexpected errors occur, you should review the guide “How to reset oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment”. To maintain security, download the authentic oupree VIDEO STREAMING HARDWARE MANUFACTURER firmware update download files immediately.
Engineers can visit the “oupree VIDEO STREAMING HARDWARE MANUFACTURER OPR-HD200H Dual HDMI Video Capture Card datasheets download” directory. Finally, always calculate the exact OPR-HD200H Dual HDMI Video Capture Card PoE power budget beforehand.
Skyrs operates as the premier oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment series distributor Pakistan. Below is a feature analysis with traditional transmission items:
| System Metric | Oupree OPR-HD200H All Variants | Standard Alternative Capture Card |
|---|---|---|
| Input Density | Two Fully Independent HDMI Ports | Single HDMI Component Port Only |
| Bus Interface | High-Bandwidth PCIe Hardware Bus Line | Slow External USB Legacy Link Channel |
| Color Spaces | Onboard Real-time YUV Processing Core | Host Processor Dependent Setup |
| Form Profile | Low-Profile Space Saving Frame | Heavy Desktop Plastic External Frame |
| Routing Control | Premium oupree VIDEO STREAMING HARDWARE MANUFACTURER Switch integration | Standalone Unmanaged Port |
Procurement teams can request a formal “OPR-HD200H Dual HDMI Video Capture Card bulk quote”. You can buy your units directly from Skyrs Pakistan for full warranty protection.
The hardware ingests two distinct high-definition video sources at the exact same time through separate internal channels. Because it utilizes independent processing chips, it transmits smooth frame sequences without causing any systemic lag.
The hardware adapts effortlessly to high-capacity commercial server architectures. Therefore, it exhibits complete harmony with complicated server setups, broadcast processing headends, and advanced routing oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment systems.
Engineers trigger full parameter restoration via the central administrative control utility. Alternatively, implement the step-by-step instructions inside “How to reset oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment” for troubleshooting.
Our specialized wholesale procurement desk processes corporate volume documentation immediately. Please reach out to our office directly to receive a competitive “OPR-HD200H Dual HDMI Video Capture Card bulk quote” optimized for your installation.
Tags: #OupreePakistan #OPRHD200H #DualHDMICapture #PCIeCaptureCard #VideoStreaming #DroneStreaming #SkyrsDistributor #CallCenterHardware
