Oupree OPR-NH1600PS 16-Ch SDI Encoder Price in Pakistan

SKYRS Pakistan – Product Data Sheet

OPR-NH1600PS

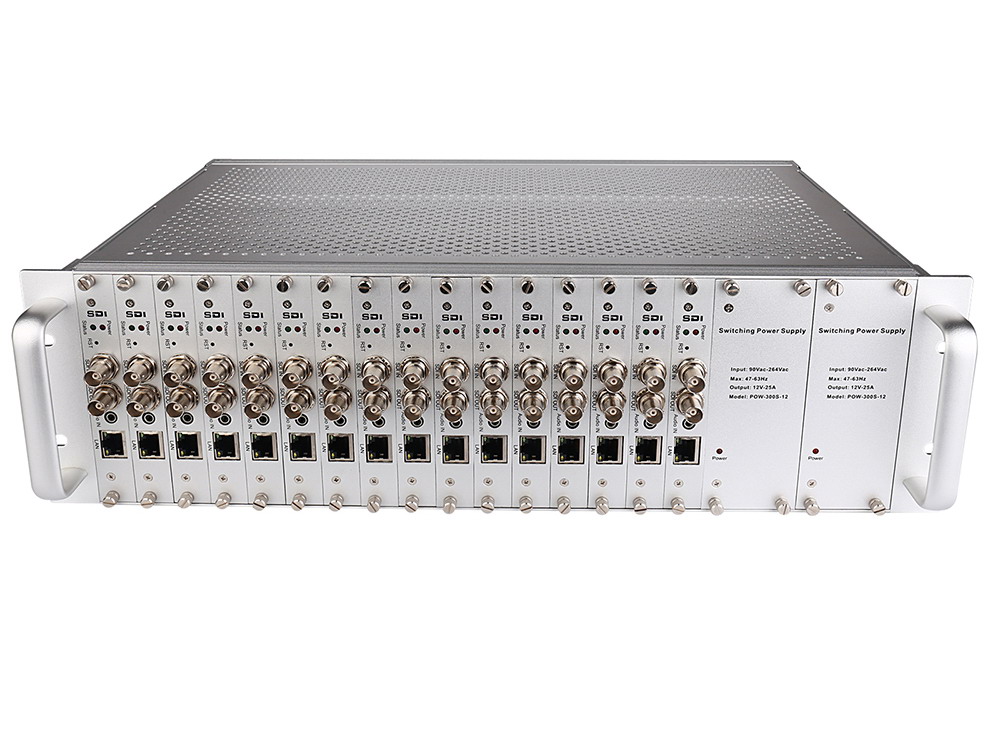

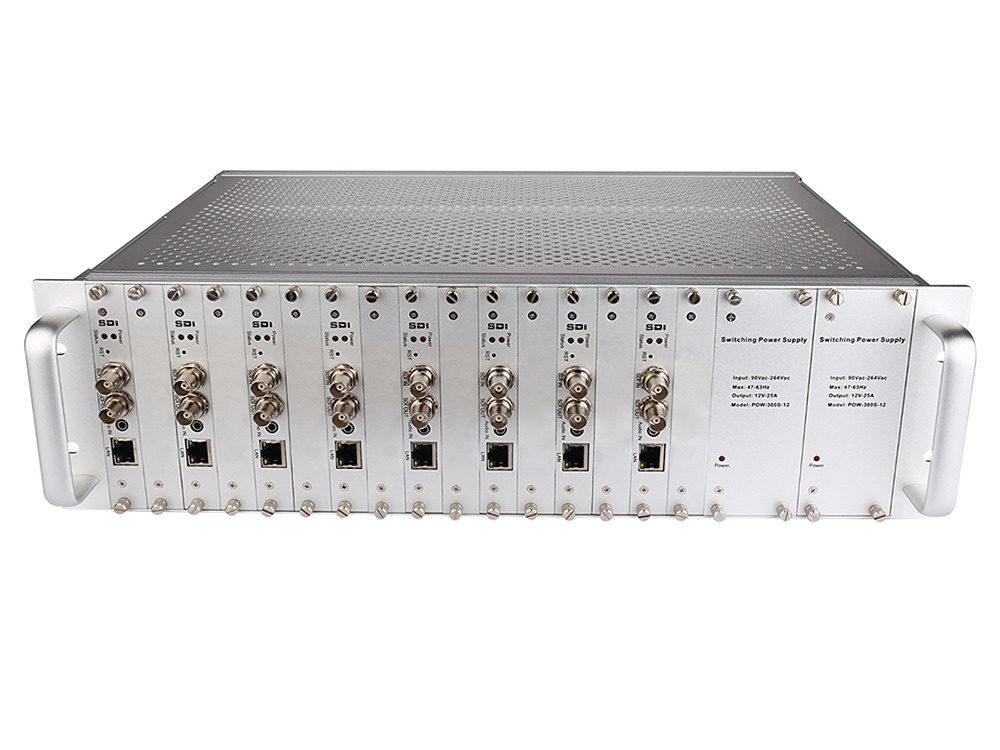

3U Rack-Mounted 16-Channel H.265 SDI IP Streaming Encoder with Loop Output

The OPR-NH1600PS is a high-density, enterprise-grade 3U rack-mounted video encoder designed for professional broadcasting, IPTV, and live streaming deployments across Pakistan. It supports up to 16 channels of SDI input with local loop-outs, utilizing advanced H.265/HEVC compression to deliver high-definition video while drastically reducing bandwidth consumption.


Key Features and Capabilities

  • High-Density 3U Chassis: Houses 16 independent SDI channels with loop output, optimizing rack space for major central hubs.

  • Next-Gen Compression: Implements efficient H.265 (HEVC) and H.264 (AVC) encoding, ideal for maximizing video quality over Pakistan’s varying regional internet bandwidths.

  • Multi-Protocol Streaming: Supports SRT, RTMP, RTSP, HTTP, HLS, UDP, and RTP for seamless integration with YouTube Live, Facebook Live, local CDN nodes, and IPTV headends.

  • Dual-Stream Output: Each channel can output a main-stream and sub-stream simultaneously for multi-bitrate delivery.

  • Audio Excellence: Supports AAC, MP3, and G.711 audio encoding with customizable sampling rates.


Product Variants Available for SKYRS Pakistan

SKYRS provides localized variants tailored to meet the infrastructural demands of major technical hubs across Pakistan:

Variant Code Regional Specialization Power Supply Primary Deployment Use-Case
OPR-NH1600PS-DualAC Karachi & Lahore Hubs Dual Hot-Swappable AC Redundant Designed for 24/7 continuous broadcast operations in Tier-3 data centers with dual-grid power feeds.
OPR-NH1600PS-DC Islamabad & Rawalpindi 48V DC Telecom Grade Tailored for telecommunications headends and secure government/corporate media networks.
OPR-NH1600PS-ST Faisalabad, Multan & Peshawar Standard AC with Surge Protection Equipped with enhanced industrial voltage stabilizers to handle regional power fluctuations.
OPR-NH1600PS-SRT Nationwide / Remote Links Standard AC (SRT-Optimized Firmware) Pre-configured with premium low-latency SRT protocols for high-reliability streaming over unstable public networks.

Technical Specifications

  • Video Input: 16 x HD/3G-SDI (BNC Interface)

  • Video Loop-out: 16 x HD/3G-SDI (BNC Interface)

  • Resolution Support: Up to 1080p at 60fps

  • Bitrate Control: CBR / VBR (16Kbps to 12Mbps per channel)

  • Network Interface: 1000M Full-Duplex Ethernet ports

  • Configuration Interface: User-friendly Web-based GUI (accessible remotely via secure IP)


SKYRS Support & Warranty Note: All variants distributed in Pakistan come with a standard 1-year local warranty, localized technical support, and firmware updates optimized for Pakistani ISP networks (including PTCL, StormFiber, Transworld, and Nayatel).
