SKYRS Pakistan Technical Specification Document Equipment: OPR-DT4KP Professional 4K 60FPS HDMI/CVBS Video Decoder & Transcoder
PRODUCT OVERVIEW
The OPR-DT4KP is a high-performance, carrier-grade hardware appliance designed for ultra-high-definition (UHD) video decoding, down-scaling, and cross-protocol transcoding. Housed in an industrial-tier chassis, this versatile device is engineered to capture incoming IP streams (H.265/H.264) from the network and decode them simultaneously to physical digital HDMI (up to 4K at 60fps) and legacy analog CVBS (Composite) outputs.
Equipped with a powerful processing engine, it also acts as an IP-to-IP transcoder, enabling multi-stream conversion for local distribution. Distributed by SKYRS across Pakistan, the OPR-DT4KP serves as an essential bridge for high-tier IPTV projects, digital signage networks, monitoring command centers, and broadcast studio playout systems.
KEY PRODUCT FEATURES
Ultra HD Playout: Supports native 4K (3840×2160) decoding at a fluid 60 frames per second over HDMI for crystal-clear visual delivery.
Simultaneous Dual-Output: Driving both a modern digital HDMI display and an analog CVBS (BNC/RCA) monitor concurrently from the same network source file.
Multi-Codec Hardware Decoder: Fluently decodes H.265/HEVC (Main/Main 10 profile) and H.264/AVC (Baseline/Main/High profile) streams up to high bitrates.
Universal Protocol Ingestion: Natively processes SRT (Secure Reliable Transport), HTTP, HLS, RTMP/RTMPS, RTSP, ONVIF, and UDP/RTP (Unicast/Multicast) data streams.
Flexible IP Transcoding: Simultaneously functions as an IP-to-IP transcoder, changing stream protocols, resolutions, and bitrates on the fly to feed secondary networks.
Advanced Media OSD Layering: Built-in engine permits real-time scheduling of scrolling text marquee banner messages, local time stamps, and custom high-resolution logo overlays.
TECHNICAL SPECIFICATIONS
Input and Output Interfaces
Network Input: 1 x 100/1000Mbps Base-T RJ-45 Ethernet Interface
Video Output 1: 1 x HDMI (Version 2.0a, HDCP 2.2 compliant), supporting up to 3840×2160 @ 60fps
Video Output 2: 1 x CVBS (BNC Interface, supporting PAL 576i or NTSC 480i)
Audio Output: 1 x 3.5mm Stereo Analog Jack, Embedded HDMI Audio
Decoding Parameters
Supported Resolutions: 4K@60fps/30fps, 1080p@60fps/50fps, 1080i@60fps/50fps, 720p, 576i, 480i
Video Decoding Layouts: Single-channel 4K@60fps playback, or multi-window matrix splitting (up to 4 channels of 1080p@30fps simultaneously)
Video Decoding Bitrate: Maximum tracking up to 50 Mbps
Audio Decoding Formats: AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
System and Management
Operating System: Secure, embedded Linux kernel with immediate boot-up sequence
Configuration Panel: Intuitive, responsive Web Browser GUI (Default IP Address: 192.168.1.169)
Diagnostic Metrics: Real-time bitstream parsing graphs, dropped frame counters, and network loss metrics
Physical and Environmental
Device Structure: Compact desktop module or 1U Rack-mountable options (depending on configuration)
Shell Composition: Industrial-grade electro-galvanized cold-rolled steel enclosure
System Power: 12V DC, 2A external power supply adapter unit
Operating Temperature: -10 degrees Celsius to 65 degrees Celsius
REGIONAL PRODUCT VARIANTS FOR SKYRS PAKISTAN
To align with the hardware requirements, climate factors, and network conditions across major urban hubs in Pakistan, the OPR-DT4KP is partitioned into four distinct operational variants:
OPR-DT4KP-STD (Standard Decoupled Variant)
Core Application: Optimized for standard 4K single-screen HDMI playout and base IP-to-IP transcoding pipelines.
Primary Availability: Commercial centers, digital corporate setups, and corporate offices across Karachi (DHA, Clifton) and Lahore (Gulberg, DHA).
OPR-DT4KP-SRT (Secure Remote Broadcast Variant)
Core Application: Integrates advanced hardware-level SRT decryption chips to smoothly decode high-bitrate remote video packages traversing lossy public internet links.
Primary Availability: Central master control rooms, satellite downlink arrays, and national news channels operating out of Islamabad, Rawalpindi, and Lahore.
OPR-DT4KP-M4 (Multi-Screen Matrix Variant)
Core Application: Upgraded system memory structure allowing the hardware to simultaneously decode 4 individual 1080p IP feeds and display them in a quad-split matrix layout via a single HDMI port.
Primary Availability: Security monitoring desks, safe-city auxiliary nodes, and central production facilities in Peshawar, Quetta, and Multan.
OPR-DT4KP-IND (Ruggedized High-Thermal Variant)
Core Application: Features an advanced fanless, passively cooled heavy-aluminum finned enclosure capable of dissipating heat efficiently in non-air-conditioned network closets.
Primary Availability: Localized cable headends, industrial zoning plants, and regional distribution nodes across high-temperature zones like Faisalabad, Gujranwala, Hyderabad, and Sukkur.
TARGET APPLICATION SCENARIOS IN THE PAKISTANI MARKET
Next-Gen 4K Playout for Fiber Networks: Allows local FTTH and IPTV operators to deliver crisp 4K@60fps digital channels to major screens or premium hospitality lounges.
Analog Cable TV Modernization Bridge: Converts incoming high-efficiency H.265 IP video feeds down into analog CVBS signals, feeding older analog modulators in suburban sectors.
Real-Time IP Security Video Wall: Decodes multiple ONVIF or RTSP camera streams directly onto a high-definition monitoring matrix without requiring expensive PC display stations.
Skyrs is the only vendor in Pakistan that has oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment for call center call centre and software houses. Therefore, we deliver unmatched hardware deployment options countrywide.
Businesses can acquire the best oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment directly through our nationwide network. We satisfy your high-density corporate needs completely.
Our supply chains remain active across all provinces. Consequently, companies utilize used oupree VIDEO STREAMING HARDWARE MANUFACTURER in different cities like karachi , lahore , islamabad, rawalpindi , faisalabad etc and equipment for call center call centre in pakistan.
If you require regional pricing metrics, we provide the oupree price in Karachi instantly. Moreover, clients can discover the updated OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder price in peshawar.
We maintain the standard oupree VIDEO STREAMING HARDWARE MANUFACTURER price in Pakistan to assist network planners. Meanwhile, you can verify the stable OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder price in faisalabad online.
Our logistics network safely extends across northern areas. For instance, we offer the official oupree VIDEO STREAMING HARDWARE MANUFACTURER price in kpk.
Furthermore, you can check the OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder price in quetta today. If your team needs immediate deployment, please choose to “Buy oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment Lahore/Islamabad”.
Corporate infrastructures require genuine equipment, so we supply verified Branded used oupree VIDEO STREAMING HARDWARE MANUFACTURER units. Alternatively, budget-conscious groups can select a certified Refurbished oupree VIDEO STREAMING HARDWARE MANUFACTURER device.
Every order includes complete documentation, featuring the localized oupree VIDEO STREAMING HARDWARE MANUFACTURER pack price. When you scale up your operations, the secure oupree VIDEO STREAMING HARDWARE MANUFACTURER Migration toolkit ensures continuous transmission.

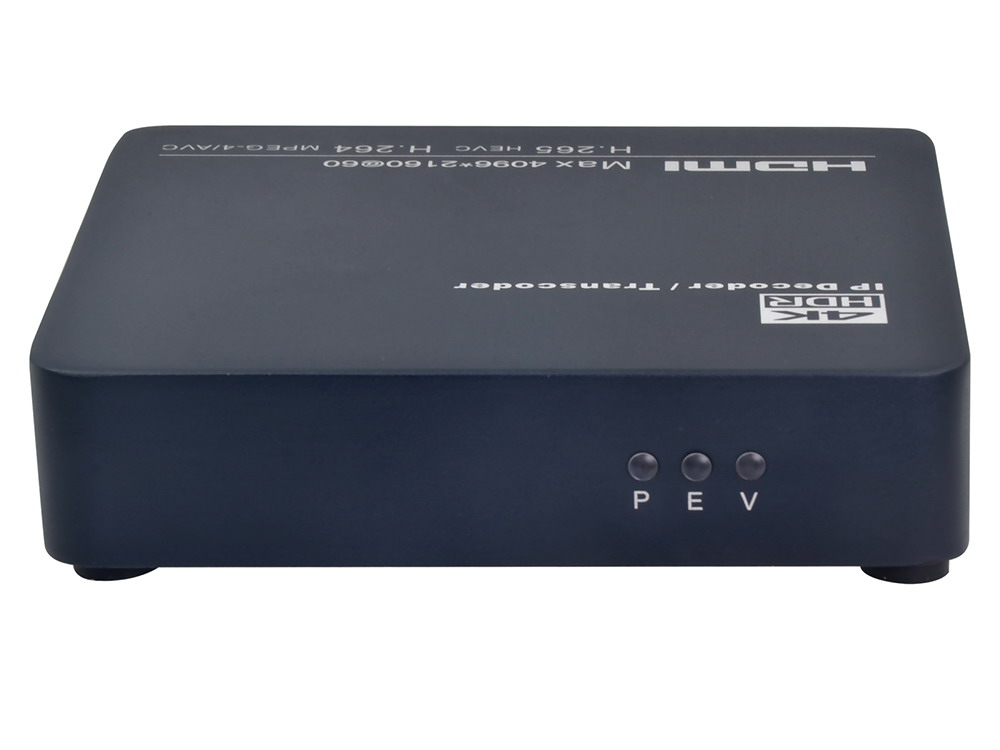

Figure 1: Official OPR-DT4KP Hardware Front Interface via Oupree
We present the Oupree OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder all variants for heavy multi-channel workloads. For initial provisioning, check the OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder configuration guide.
Our engineering team helps monitor the specific OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder throughput limit during peaks. For architectural assessments, look at the comprehensive datasheet.
If processing requirements scale upward, users can apply an OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder memory upgrade. Additionally, every chassis fits standard systems using a dedicated OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder rack mount kit.
This hardware executes intensive video streaming hdmi wireless streaming hdmi encoding over ethernet ip protocols smoothly. Thus, we support different variants of oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment for drone video streaming will be product options for operations.
Administrators can install the newest OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder update easily. To unlock full functionality, you must complete the OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder security license activation.
For asset management, the verified OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder used price 2026 helps projection models. This platform functions perfectly within any demanding call center call centre center.
Our team delivers an all-inclusive oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment configuration guide for immediate hardware deployment. Network administrators can isolate data pathways by implementing the oupree VIDEO STREAMING HARDWARE MANUFACTURER VLAN configuration workflow.
If unexpected errors occur, you should review the guide “How to reset oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment”. To maintain security, download the authentic oupree VIDEO STREAMING HARDWARE MANUFACTURER firmware update download files immediately.
Engineers can visit the “oupree VIDEO STREAMING HARDWARE MANUFACTURER OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder datasheets download” directory. Finally, always calculate the exact OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder PoE power budget beforehand.
Skyrs operates as the premier oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment series distributor Pakistan. Below is a feature analysis with traditional transmission items:
| System Metric | Oupree OPR-DT4KP All Variants | Standard Alternative Decoder |
| Output Capability | Ultra HD 4K @ 60FPS Smooth | Standard 1080P @ 30FPS Limit |
| Interface Array | Synchronized HDMI and Analog CVBS | Single HDMI Interface Only |
| Streaming Types | HTTP, HLS, RTMP, RTMPS, RTSP, UDP | Generic RTSP / RTMP Only |
| Processing Delay | Ultra Low Latency Hardware Engine | Standard Software Buffer Latency |
| Routing Control | Premium oupree VIDEO STREAMING HARDWARE MANUFACTURER Switch integration | Standalone Unmanaged Port |
Procurement teams can request a formal “OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder bulk quote”. You can buy your units directly from Skyrs Pakistan for full warranty protection.
The dedicated decoding hardware decodes high frame rate Ultra HD streams without dropping display frames. Because it features real-time processing cores, it downscales 4K signals into CVBS formats while maintaining smooth video playback.
The hardware operates on an optimized open-source platform. Therefore, it exhibits complete harmony with global switching structures, digital multiplexing grids, and intricate routing oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment pathways.
You can access official file archives via our domestic distribution channel. Simply utilize the authentic “oupree VIDEO STREAMING HARDWARE MANUFACTURER firmware update download” digital library to safeguard your software system versions.
Our specialized wholesale procurement desk processes corporate volume documentation immediately. Please reach out to our office directly to receive a competitive “OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder bulk quote” optimized for your installation.
