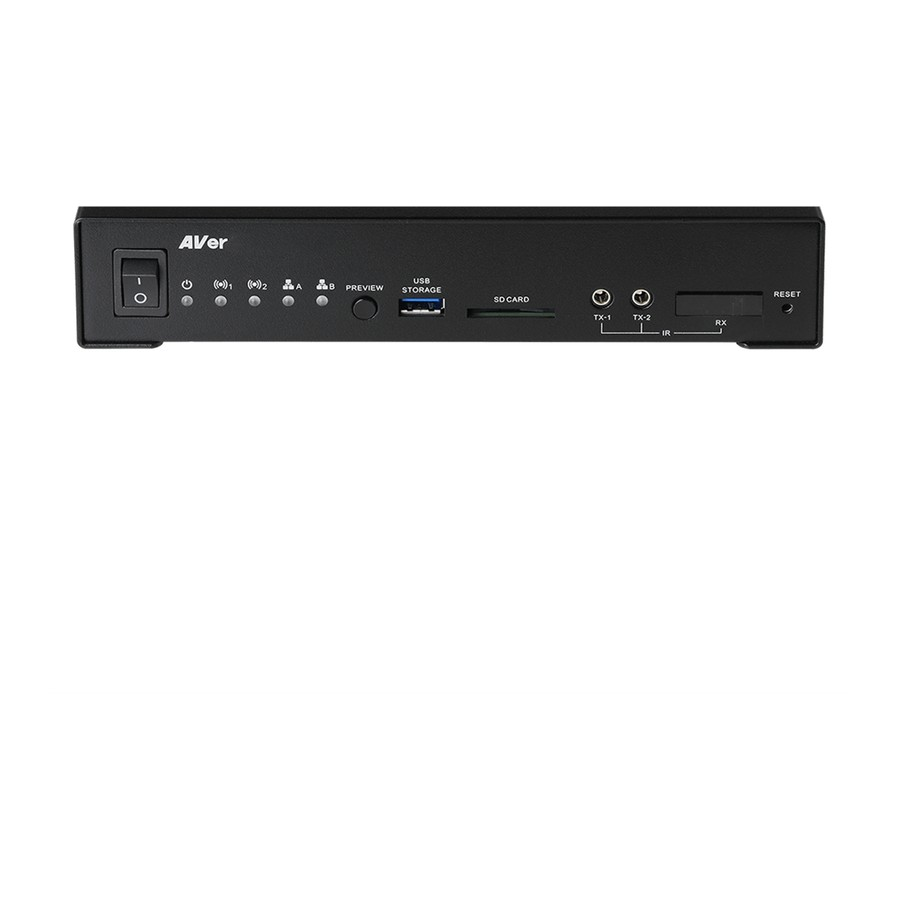

AVer SB-520 Professional Streaming Box Datasheet Authorized SKYRS Distribution & Deployment Overview (Pakistan)
Product Overview The AVer SB-520 Professional Streaming Box is an enterprise-grade multi-function encoding, recording, and media distribution system designed to integrate seamlessly with modern corporate, government, and educational video network architectures across Pakistan. Operating with advanced dual-channel capabilities, it handles raw multi-source video inputs (up to Full HD 1080p at 60 fps) and compresses them simultaneously into multiple distinct streams or recording paths, removing processing strain from standard computing equipment during major hybrid events.
Technical Specifications
Video Input Interfaces: 3G-SDI ×2, HDMI 1.4b ×2 (Embedded audio supported)
Capture & Output Resolution: Full HD 1080p at 60 fps maximum
Preview Output Path: HDMI 1.4b ×1 dedicated layout monitor pass-through
Hardware Audio Interfaces: 3.5mm Line-In ×2, 3.5mm Microphone-In ×1, Balanced XLR ×1
Video Encoding Compression: H.264 High/Main/Baseline Profiles
Audio Encoding Format: AAC Stereo
Streaming Delivery Bitrate: Adjustable parameters reaching up to 20 Mb/s
Local Recording File Formats: MP4, MOV, TS containers
Network Streaming Protocols: TCP, UDP, RTMP, RTMPS, RTSP, RTP, HLS
Network Power Deployment: Dual RJ45 Ethernet ports equipped with PoE+ (Power over Ethernet) support
Local External Storage Storage: USB 3.0 interface, SD Card Slot, and direct Network Mapped Drive support (NAS / Windows Shares)
Flexible Encoding and Layout Frameworks
2 to 2 Routing Mode: Allows operators to ingest two independent video/audio hardware streams and route them to separate CDN targets using completely isolated encoding schemas.
1 to 2 Distribution Mode: Takes a singular audio/video package and duplicates it to different target networks using localized bitrates and network transmission protocols simultaneously.
1, 1, 1 Mode: Manages live streaming to an active online presentation server while concurrently writing a raw archive duplicate into local flash storage or a networked file server.
Built-in Composite Layout Engine: Provides native support for Picture-in-Picture (PiP), Picture-by-Picture (PbP), single-source full screens, and user-customized input layout overlays without requiring external video switcher hardware.
All Product Variants Available at SKYRS Pakistan
SKYRS guarantees access to the complete manufacturing variant configurations of the SB-520 platform to match distinct security and scaling criteria within local networks:
AVer SB-520 (Standard Base SKU): The classic foundational multi-input encoding appliance equipped with dual SDI, dual HDMI, and XLR inputs ready for integration into standard server racks.
AVer SB-520 Government-Grade Secure SKU: Specially optimized variation maintaining restricted firmware access pathways, custom closed-network streaming parameters, and enhanced security options for official state structures.
AVer SB-520 Turnkey Broadcast Bundle: High-value package bundled with professional base rack mounts, extension plates, long-distance active signal converters, and certified IR blast links for high-density hardware stacks.
End to End Deployment, Installation, and Configuration Service
SKYRS provides specialized, certified deployment architecture across Pakistan to verify that the AVer SB-520 operates seamlessly alongside on-site infrastructure:
Professional Installation
Rack Mount Engineering: Structured structural positioning inside server racks or control room booths using the provided long and short chassis extensions to provide adequate airflow and clean access.
Balanced Signal Termination: Pulling and terminating high-integrity shielded audio cabling (XLR/3.5mm) and premium SDI video pipelines from existing room camera arrays directly into the SB-520 input bank.
Precision System Configuration
Advanced WebUI and CDN Mapping: Developing localized network routing tables, configuring secure static IP profiles, setting up direct integration with destination streaming networks (such as YouTube, Wowza, or corporate CDNs), and mapping storage targets onto local NAS environments.
Audio Matrix and Layout Mixing: Custom programming your preferred PiP/PbP visual arrangements, mixing embedded SDI/HDMI audio against physical line/XLR microphone inputs, and establishing precise variable bitrate (VBR) thresholds.
Ecosystem Controls: Connecting internal APIs with centralized AV matrix arrays, connecting native remote-control presets via the physical IR receiver paths, and optimizing browser-based network remote management tools.
Availability Note: Procurement of the AVer SB-520 Professional Streaming Box alongside this specialized on-site deployment, structural staging, and long-term network tuning package is available exclusively through the SKYRS engineering team within Pakistan.
Modern organizations demand elite communication tools to bridge distance effortlessly. Skyrs stands out as the ultimate provider of the best AVer video conference system Pakistan equipment. Therefore, premium workplace visual experiences are now within your immediate reach.
Skyrs serves as the premier AVer equipment vendor Karachi while offering reliable deployments across the entire nation. We deliver modern collaboration gear to businesses, software houses, and heavy corporate environments. Consequently, organizations can easily buy used AVer video conference system Pakistan gear in different cities like Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad, Quetta, Peshawar, Multan, Hyderabad, Sialkot etc.
Furthermore, we supply tailored equipment for call center call centre office home industry hospital forces etc in pakistan. Skyrs is recognized as the only specialized vendor in Pakistan that has hardware options optimized for high-volume call centers and software houses. Because of this, every workplace gets access to professional routing AVer video conference system Pakistan equipment for modern remote connectivity. Specifically, Skyrs is the only vendor in pakistan that has AVer video conference system Pakistan equipment for call center call centre and software houses with different variants of AVer video conference system Pakistan equipment for zoom ringcentral.
Different corporate environments require unique technical configurations to operate seamlessly. For example, we supply premium Branded used AVer video conference system Pakistan systems alongside certified Refurbished AVer video conference system Pakistan gear. Alternatively, customers can choose an all-in-one AVer video conference system Pakistan pack price to reduce procurement complexities.
Additionally, we maintain a vast stock of hardware variants and companion upgrades. Our inventory includes crucial expansion parts like a dedicated AVer video conference system Pakistan SB-520 Professional rack mount kit for standard server racks. In addition, we provide specialized components including high-speed hard disk, SSD, RAM, and other gadgets. As a result, businesses can smoothly execute an AVer video conference system Pakistan Migration to modernize their older network infrastructure.
AVer corporate boardroom camera units: Systems like the AVer VB342 Pro, AVer VB350, and AVer VC520 Pro2.
Next-Gen Enterprise Displays: The AVer CAM520 Pro3 and high-capacity AVer EVC-170 systems.
Multi-Site Dedicated Hardware: Elite codecs including the AVer EVC-350 and the multi-point AVer SVC-500.
Educational Tracking Tools: Specialized AVer PTC-500s teacher tracking units for smart lecture recording.
The iconic AVer video conference system Pakistan SB-520 Professional variant delivers exceptional ultra-precise video streaming functionality via advanced dual-stream encoding. This powerhouse features dual HDMI and 3G-SDI inputs that output native Full HD video over simultaneous network connections. To ensure smooth setup, we provide a detailed AVer video conference system Pakistan equipment configuration guide. This comprehensive documentation covers exact AVer video conference system Pakistan VLAN configuration steps to segregate heavy voice and video data.
Engineers can manage network traffic efficiently because the system operates within a strict AVer video conference system Pakistan SB-520 Professional throughput limit configuration. Similarly, power is delivered safely through a stable AVer video conference system Pakistan SB-520 Professional PoE power budget utilizing standard switch parameters. For storage expansions, please consult the official AVer video conference system Pakistan SB-520 Professional memory upgrade manual.
Administrators can unlock advanced operational modes by completing the AVer video conference system Pakistan SB-520 Professional security license activation. Meanwhile, you can keep your hardware secure by deploying the latest AVer video conference system Pakistan firmware update download. If you encounter system configuration issues, our team shows you how to reset AVer video conference system Pakistan equipment back to factory parameters.
The AVer video conference system Pakistan SB-520 Professional all variants excel over competitor brands due to their multi-channel streaming capabilities. Competitors often require multiple standalone encoders, whereas AVer uses built-in matrix streaming algorithms. Therefore, the SB-520 Professional delivers simultaneous video outputs across multiple distinct network protocols, while alternative systems limit users to a single destination.
Our status as an AVer official partner Pakistan guarantees authentic product access. In addition, we act as the primary AVer master distributor Pakistan to keep local businesses supplied. Thus, organizations can request a direct AVer corporate demo Pakistan to evaluate real-time performance. Contact our offices to secure a competitive AVer video conference system Pakistan SB-520 Professional bulk quote.
Whether you want to Buy AVer video conference system Pakistan equipment Lahore/Islamabad, or need the AVer video conference system Pakistan equipment series distributor Pakistan, Skyrs ensures prompt hardware delivery. Review our localized procurement matrix:
AVer video conference system Pakistan price in Pakistan: Competitive baseline corporate pricing options.
AVer video conference system Pakistan SB-520 Professional price in Karachi: Immediate warehouse stock availability.
AVer video conference system Pakistan SB-520 Professional price in peshawar: Complete tech shipments across KP.
AVer video conference system Pakistan SB-520 Professional price in faisalabad: Industrial sector unified deployments.
AVer video conference system Pakistan SB-520 Professional price in kpk: Extended public sector visual setups.
AVer video conference system Pakistan Switch options: Native network hardware for video distribution.
AVer video conference system Pakistan SB-520 Professional price in quetta: Secure hardware delivery for Balochistan offices.
AVer video conference system Pakistan SB-520 Professional used price 2026: Cost-effective refurbished deals.
Review complete internal device details via the Skyrs Product Catalog.
Download full device layout schematics directly from the AVer Global Download Center.
First, visit the official global download center and locate your exact SB-520 Professional model. Download the latest firmware package to a local computer. Next, log into the streaming box Web UI using your admin credentials and upload the file.
The complete technical datasheets are available directly on the manufacturer’s official website or through your local supplier at Skyrs. These files provide comprehensive metrics on input resolutions and bandwidth limits.
The hardware requires a standard PoE connection conforming to enterprise network specifications. The system manages power consumption efficiently, so ensure your network switch provides sufficient power per active port.
Yes, these enterprise systems offer native compatibility with leading software platforms. This means they operate flawlessly with applications like Zoom, RingCentral, Microsoft Teams, and Google Meet right out of the box.
The ecosystem utilizes advanced Human Detection AI algorithms to lock onto a target form. Presenter Mode allows the speaker to walk around the room naturally, while Zone Mode locks the frame onto specific presentation boards.
