APC SRTDBP3KR2-LA Schneider Electric SRTDBP3KR2-LA Picture Schneider Electric SRTDBP3KR2-LA Picture Schneider Electric SRTDBP3KR2-LA Picture Schneider Electric SRTDBP3KR2-LA Picture Schneider Electric SRTDBP3KR2-LA Picture + 3 + 3 APC Smart-UPS Online 2-3KVA VRLA Battery Pack Rack & Tower SRTDBP3KR2-LA

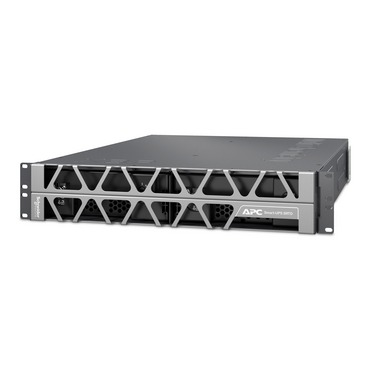

The APC Smart-UPS On-Line SRTDBP3KR2-LA is a high-performance External Battery Pack (XBP) engineered to scale and extend critical backup runtimes for next-generation APC 2kVA and 3kVA On-Line Uninterruptible Power Supply (UPS) installations. Utilizing an advanced Valve-Regulated Lead-Acid (VRLA) cell design, this rack/tower convertible enclosure ensures uninterrupted data protection, localized failover security, and strict system uptime across volatile power environments.

PRODUCT SPECIFICATIONS

• Product Type: External Battery Pack (XBP)

• Compatible UPS Systems: APC Smart-UPS On-Line SRT 2000VA (2kVA) and 3000VA (3kVA) Series

• Battery Type: Valve-Regulated Lead-Acid (VRLA) maintenance-free battery with suspended electrolyte (leakproof)

• Battery Voltage: 72V DC (Nominal)

• Ampere-Hour Capacity: 20 Ah

• Replacement Battery Cartridge (RBC) Quantity: 2 Internal Cartridges

• Battery Slots Empty: 0 (Ships fully populated and connected)

• Form Factor: 2U Rackmount / Tower convertible

• Enclosure Protection: Heavy-duty sheet-metal chassis with integrated deployment handles

• Expected Battery Life: 3 to 5 Years (Environmentally dependent)

PHYSICAL DIMENSIONS AND WEIGHT

• Rack Height: 2U Standard Space Requirement

• Net Height: 3.40 inches (86 mm)

• Net Width: 17.03 inches (432.5 mm)

• Net Depth: 24.02 inches (610 mm)

• Product Net Weight: 101.40 lbs (46.0 kg)

• Shipping Weight: 114.60 lbs (52.0 kg)

COMPATIBLE UPS VARIANTS FOR SKYRS IN PAKISTAN

SKYRS supplies, commissions, and expands the complete array of APC Smart-UPS On-Line single-phase topologies that actively link with the SRTDBP3KR2-LA battery module under local grid environments:

• APC SRT2200RMXLI: Premium 2200VA (2.2kVA) Rackmount 230V double-conversion online UPS configured for local standard network systems.

• APC SRT3000RMXLI: Mainstream 3000VA (3kVA) Rackmount 230V double-conversion online system utilizing high-density server power inputs.

• APC SRT3000XLI: High-performance 3000VA (3kVA) Tower-focused convertible online UPS optimized for localized base load isolation.

• Additional XBP Daits: Multiple SRTDBP3KR2-LA units can be linked in daisy-chain arrangements by SKYRS to achieve specialized, long-duration operational runtime thresholds.

DEPLOYMENT AND INSTALLATION BY SKYRS

As the leading enterprise backup infrastructure partner in Pakistan, SKYRS delivers precise, factory-grade physical deployment services across corporate server rooms, commercial hubs, and edge architectures:

• Heavy-Duty Structural Mounting: Secure stabilization within 4-post or 2-post server enclosures utilizing specialized heavy-duty variable-depth rail systems to handle the 46.0 kg module weight safely.

• Safe Internal Interlocking: Mechanical coupling of the high-current 72V DC hot-swappable bus links to the parent UPS chassis, eliminating arc risks or open-circuit faults during operations.

• Thermal Integration: Strategic environmental positioning inside server racks to optimize ventilation pathways, avoiding adjacent high-heat network switches to preserve VRLA cell life.

CONFIGURATION AND MANAGEMENT BY SKYRS

SKYRS infrastructure engineers perform exact logical profiling and system calibration to integrate the expanded battery architecture into localized remote management frameworks:

• Firmware Parameterization: Upgrading and flashing matching codebases across the parent UPS and external battery packs to synchronize dynamic state-of-charge calculation metrics.

• Automated Intelligence Tuning: Recalibrating the UPS microprocessor via the network interface to immediately recognize the 20 Ah internal capacity increase, ensuring exact real-time runtime estimations.

• EcoStruxure Asset Optimization: Complete mapping into local enterprise monitoring dashboards, unlocking remote diagnostics for individual module health checks, predictive wear alerts, and cell temperature auditing.

EXCLUSIVE AVAILABILITY NOTICE

Full-scale enterprise deployment, technical structural installation, and professional network configuration services for the APC SRTDBP3KR2-LA External VRLA Battery Pack alongside all corresponding 2kVA and 3kVA Smart-UPS On-Line variations are available exclusively through SKYRS in Pakistan. Powered by vendor-certified critical power engineers and backed by direct manufacturer support, SKYRS ensures specialized resilience for your vital IT infrastructure.
