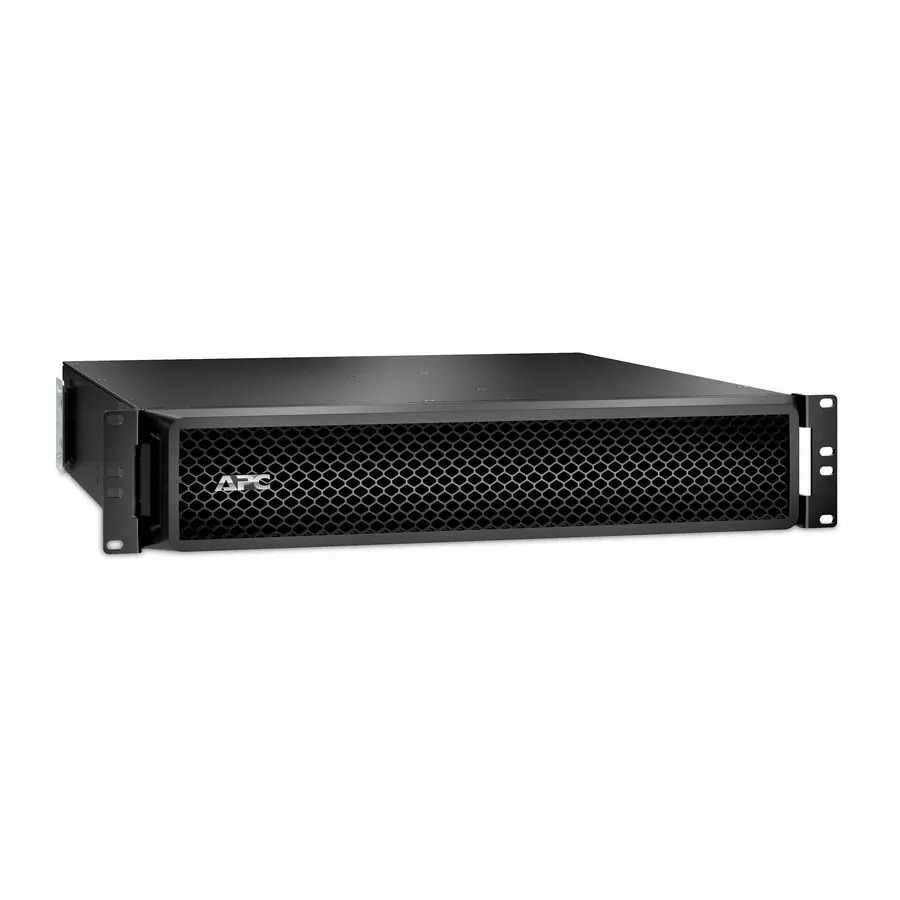

APC SMX3000RMX93 Schneider Electric SMX3000RMX93 Picture Schneider Electric SMX3000RMX93 Picture APC Smart-UPS 3kVA RM 120V SHIPBOARD SMX3000RMX93

APC Smart-UPS X 3000VA Extended Runtime Bundle Series (SMX3000RMX93 & Variants)

The APC Smart-UPS X 3000VA (SMX3000RMX93) is an enterprise-class, heavy-duty line-interactive power protection system specifically configured for long-duration backup applications. It filters raw electrical utility lines into a pure sine wave output to shield mission-critical blade servers, distributed storage area networks (SAN), and core telecommunication switches from data loss and hardware degradation.

The unique “X93” designation represents a factory-bundled, high-capacity extended runtime kit that pairs a standard low-voltage ($100\text{V}–127\text{V}$) $2\text{U}$ Smart-UPS chassis with the SMX120RMBP2U external battery enclosure right out of the box. This provides a dense $4\text{U}$ footprint engineered to handle severe grid instabilities.

Technical Specifications and Variant Ecosystem

Operating at an active capacity of $2880\text{VA} \, / \, 2700\text{Watts}$, this line-interactive platform features automatic voltage correction alongside expandable battery reservoirs. The system variants reflect different out-of-the-box network card options and administrative compliance profiles:

Key System Architecture Features

• Advanced Green Operating Mode: Achieves near 98% online thermal operating efficiency by safely bypassing unused internal components during stable utility conditions. This lowers cooling costs and minimizes corporate power usage.

• Three Switched Outlet Sub-Groups: The rear power distribution array features independent, software-governed zones. This allows network administrators to execute remote power cycling of frozen nodes, configure sequential startup profiles, and isolate non-critical loads during power dropouts.

• Dynamic Smart-Pack Recognition: The internal charging circuits auto-detect any extra downstream external battery expansion modules beyond the bundled kit upon physical connection, instantly updating remaining runtime metrics on the system console without manual tracking.

Technical Infrastructure Deployment and Localized Installation

Because the SMX3000RMX93 bundle operates inside a low-voltage input matrix ($100\text{V}–127\text{V}$), deploying this platform within standard Pakistani commercial environments requires specific electrical conditioning.

Localized Grid Transformer Engineering

The utility grid across Pakistan operates natively at $230\text{V}$ AC single-phase. To utilize the $120\text{V}$ SMX3000RMX93 system safely without inducing catastrophic over-voltage hardware failure, installation teams integrate an external heavy-duty step-down isolation transformer. This unit safely steps the local $230\text{V}$ grid down to a regulated $120\text{V}$ stream matching the NEMA L5-30P twist-lock input requirements.

Dual Physical Layout Adaptability

• Tower Layout Assembly: High-stability chassis feet snap onto the side of the casing layout. This secures the base UPS and the extended battery pack vertically side-by-side for freestanding deployment inside distributed branch offices, clinics, or retail storage facilities.

• Rackmount Cabinet Integration: Using the included heavy-duty 4-post sliding rails, the units fit securely into standard 19-inch server cabinets. The system occupies a total of $4\text{U}$ vertical space ($2\text{U}$ for the UPS core and $2\text{U}$ for the battery array).

Scalable Back-Up Interlinking

Leakproof, maintenance-free lead-acid internal battery blocks slide smoothly from the front panels. This allows seamless, hot-swappable battery replacement without dropping the downstream network load. The bundled external battery enclosure connects via rear plug-and-play high-current DC links, complete with built-in data connectors to ensure precise temperature-compensated battery charging.

Advanced Management and Automation Configuration

Following structural placement, precise engineering configuration ensures proper interaction with downstream compute platforms:

LCD Environmental Tuning

The front-mounted alphanumeric interactive LCD panel is configured to establish narrow Automatic Voltage Regulation (AVR) windows. This setup boosts low power by 30% or clips high spikes by 12% without draining internal batteries, extending cell life amid typical regional brownouts or diesel generator sync cutovers.

SmartSlot Management Card Provisioning

For base architectures like the SMX3000RMX93, an APC Network Management Card (such as the AP9641) can be integrated into the rear SmartSlot, whereas the “-NC” variant contains this out of the box. Engineers then assign static IP addresses, construct secure SNMP v3 cryptographic tracking profiles, and enable encrypted access for remote monitoring of voltage waves and thermal sensors.

Automated PowerChute Logic Scripting

Engineers implement PowerChute Network Shutdown agents directly on targeted hypervisors (such as VMware ESXi or Microsoft Hyper-V) and storage arrays. When commercial utility power fails, the scripts initiate safe, orderly virtual machine shutdowns. This protects active data pools and turns off non-critical systems first to preserve battery capacity for vital routing paths.

Exclusive Pakistan Availability Policy

Exclusive Channel Operations: Sourcing, site preparation, $230\text{V}$-to-$120\text{V}$ transformer matching engineering, physical multi-chassis rack installation, and comprehensive software configurations for the APC SMX3000RMX93 bundle series are managed and executed exclusively by SKYRS within Pakistan. Dedicated data center technical deployment teams operate directly from regional operational centers nationwide to guarantee complete system compliance and enforce full
