The Dinstar DXP60 is a premium color-screen expansion module designed to enhance the productivity of power users such as receptionists, administrative assistants, and call center managers. It seamlessly integrates with Dinstar’s high-end IP phones, providing an extensive array of programmable keys to manage high call volumes and monitor extension statuses with ease.
Dinstar DXP60 Color-Screen Expansion Module
The Ultimate Efficiency Tool for High-Volume Call Management

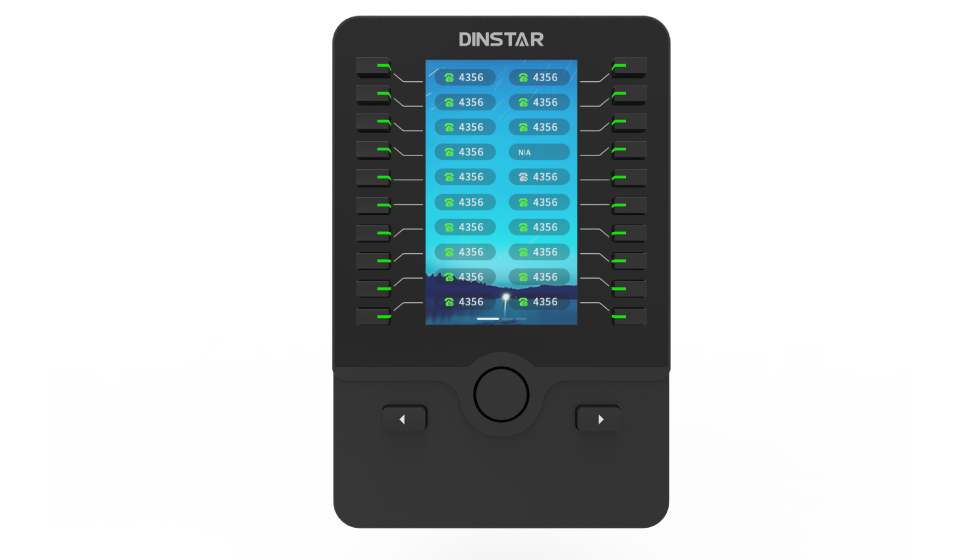

The Dinstar DXP60 features a vivid 4.3-inch color display that provides clear visual feedback and intuitive navigation. With the ability to daisy-chain up to three modules, it can expand a single desktop station to support up to 180 programmable keys, making it one of the most scalable expansion solutions available in the Pakistani market.
Key Features for the Pakistani Market
-
Rich Visual Experience: Features a 4.3-inch (272×480) backlit color LCD, offering high visual clarity and color icons that help users quickly distinguish between different functions and line statuses.
-
Massive Scalability: Supports 20 physical keys with dual-color LEDs across 3 display pages, totaling 60 programmable keys per module. Users can daisy-chain up to 3 modules for a total of 180 keys.
-
Smart Presence Monitoring: The dual-color (Red/Green) LEDs provide instant Busy Lamp Field (BLF) and Busy Line Appearance (BLA) status, essential for Pakistani corporate offices and call centers.
-

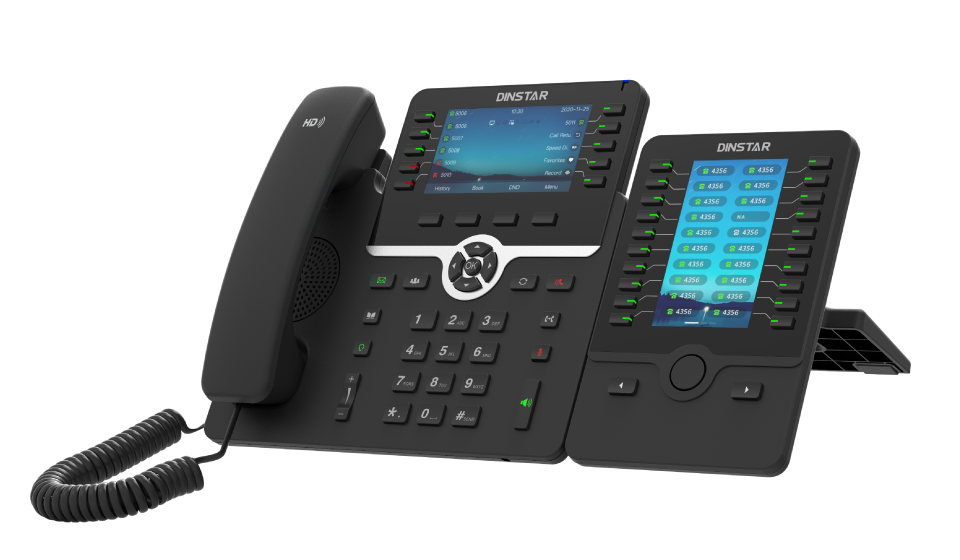

Plug-and-Play Integration: Designed specifically for Dinstar C63, C64, and C66 series IP phones. It connects via a dedicated EXT port and requires no complex software setup.
-
Telephony Functionality: Fully supports speed dial, call park, call pickup, intercom, DND, voicemail, and one-touch call transfer.
-
Ergonomic Design: Includes an adjustable stand with two tilt angles and a high-quality cast-aluminum feel that matches the aesthetics of Dinstar’s high-end business phones.
Technical Specifications
| Feature | Details |
| Display | 4.3-inch (272×480) Color LCD with Backlight |
| Programmable Keys | 20 Physical Keys with dual-color LEDs (Up to 60 per module) |
| Pages | 3 User-friendly display pages |
| Daisy-chain | Up to 3 modules (Max 180 keys) |
| Connectivity | 2x RJ45 10/100 Mbps (Upstream/Downstream) |
| Compatible Phones | Dinstar C63G/GP, C64G/GP, C66G/GP |
| Power Supply | Powered by host phone (External 5V/1A needed for >1 module) |
| Stand | Adjustable with 2 angles (45° / 50°) |
| Dimensions | 128mm x 188mm x 38.5mm |
Why Choose Dinstar DXP60 from SKYRS?
At SKYRS, we position the Dinstar DXP60 as the essential “Switchboard Upgrade.” For organizations in Karachi, Lahore, and Islamabad that have outgrown standard 2-line or 4-line phones, the DXP60 provides the visual and physical interface needed to manage complex communications without the high cost of a dedicated PC-based attendant console.
-
Best For: Receptionists, Executive Secretaries, and Call Center Supervisors.
-
Availability: Genuine stock with official SKYRS 12-month local warranty.
