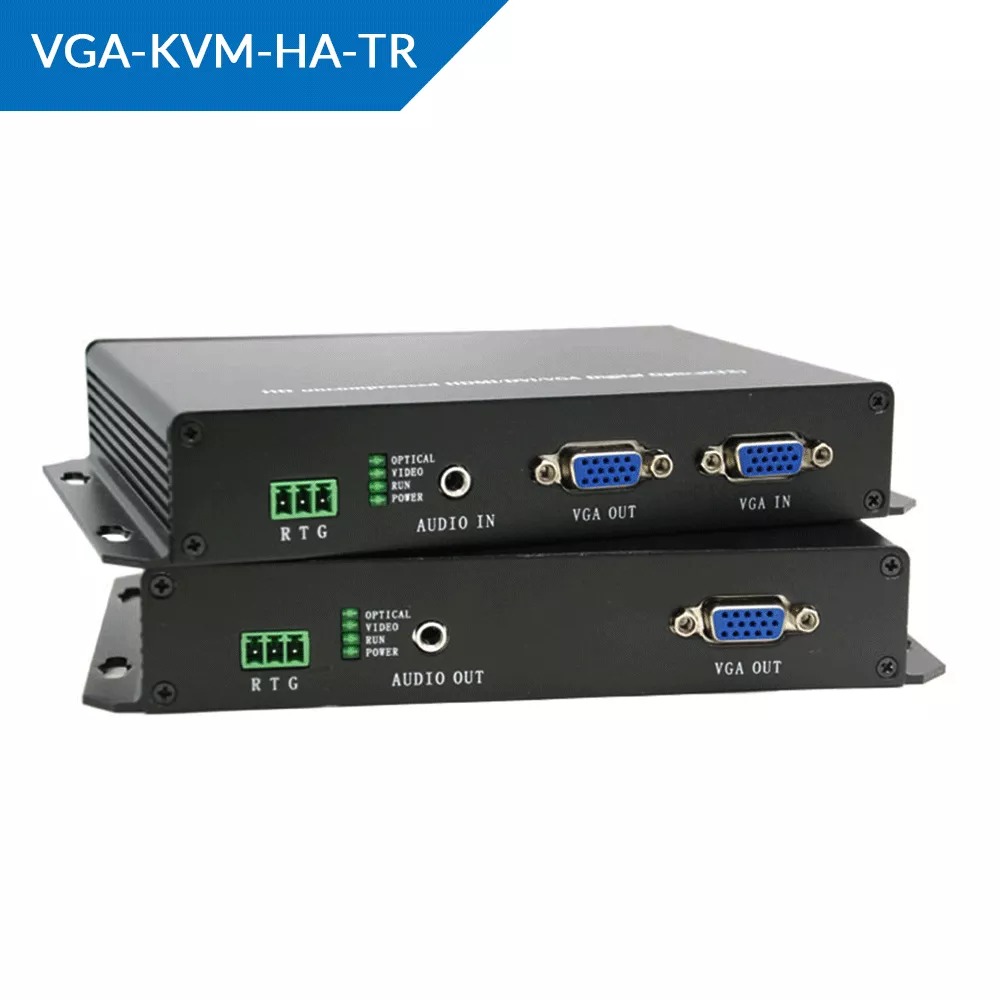

SKYRS TECHNICAL DATA SHEET VGA-KVM-HA-TR EXTENDER SERIES
The VGA-KVM-HA-TR series consists of professional-grade Video, Keyboard, and Mouse (KVM) transmitters (TX) and receivers (RX). This hardware is specifically engineered to extend analog VGA signals and USB control peripherals over long distances using reliable twisted-pair Ethernet infrastructure or dedicated fiber optic media.
Variants in this series are designed to provide Zero-Latency transmission, ideal for industrial automation, data center management, and secure monitoring environments.
PRODUCT VARIANTS AND TECHNICAL SPECIFICATIONS
This series features three tailored variants to accommodate diverse distance and physical infrastructure demands.
Variant 1: VGA-KVM-HA-TR Standard (CATx Edition)
Media Type: Cat5e / Cat6 / Cat7 UTP or STP Cable
Maximum Distance: Up to 100 Meters (FHD) / 150 Meters (VGA)
Video Support: Resolutions up to 1920×1200 @ 60Hz
Interfaces (Transmitter): 1x VGA Input, 1x VGA Loop-out, 1x USB Type-B, 1x RJ45 Port, 1x 5V DC Input
Interfaces (Receiver): 1x VGA Output, 2x USB Type-A (for KM), 1x RJ45 Port, 1x 5V DC Input
Variant 2: VGA-KVM-HA-TR-LR (Long Range CATx Edition)
Media Type: Shielded Twisted Pair (STP) Cat6 or higher
Maximum Distance: Up to 300 Meters
Video Support: Built-in Equalization/Gain Adjustment for up to 1600×1200 @ 60Hz over maximum distance
Interfaces (Transmitter): 1x VGA Input, 1x USB Type-B, 1x RJ45 Port, Audio passthrough (3.5mm), 1x 5V DC Input
Interfaces (Receiver): 1x VGA Output, 4x USB Type-A ports, 1x RJ45 Port, Built-in RGB deskew dial
Variant 3: VGA-KVM-HA-TR-FO (Fiber Optic Edition)
Media Type: Single-Mode or Multi-Mode Fiber (SC/FC Connectors)
Maximum Distance: Up to 2 Kilometers (Multi-Mode) / 20 Kilometers (Single-Mode)
Video Support: Completely immune to EMI; resolutions up to 1920×1440 @ 60Hz
Interfaces (Transmitter): 1x VGA Input, 1x USB Type-B, 1x Fiber Optic SFP/Fixed Port
Interfaces (Receiver): 1x VGA Output, 2x USB Type-A ports, 1x Fiber Optic SFP/Fixed Port
DEPLOYMENT AND SITE REQUIREMENTS
Environment: Designed for server rooms, industrial control floors, security desk setups, and remote monitoring centers.
Structural Placement: Compact metal chassis options equipped for wall-mount, under-desk mount, or standard 1U/2U server rack shelving deployment.
Cabling Integrity: For copper variants, deployment requires continuous solid-core copper cabling (patch panels decrease overall distance capability). Grounded STP is strictly advised in heavy industrial environments with electromagnetic interference (EMI).
INSTALLATION STEP-BY-STEP
Power Off: Turn off the host computer/server and the remote display monitor before making connections.
Transmitter (TX) Connection: Connect the host computer’s VGA output to the “VGA IN” port on the Transmitter using a standard VGA male-to-male cable. Connect the host computer’s USB port to the Transmitter’s USB Type-B port using the provided interface cable.
Link Setup: Plug one end of your dedicated Cat6 Ethernet cable (or Fiber Optic patch cord) into the “LINK” port of the Transmitter, and the opposing end directly into the “LINK” port of the Receiver.
Receiver (RX) Connection: Connect the remote display monitor to the Receiver’s “VGA OUT” port. Plug the target USB keyboard and mouse into the designated USB Type-A peripheral slots on the Receiver.
Power Activation: Secure the DC power adapters into both units (using the built-in screw locks if applicable) and plug them into an AC power supply. Power on the remote display, followed by the host computer.
CONFIGURATION AND FINE-TUNING
The VGA-KVM-HA-TR series operates on a driverless, hardware-based, plug-and-play architecture. No software installation is required on the host operating system.
Automatic EDID Emulation: The Transmitter features an internal EDID emulator that copies and stores the display profile automatically to ensure the host PC outputs the correct resolution, preventing display dropouts.
Manual Video Equalization (For Long Range Variants): If the extended display shows blurriness, ghosting, or color shifts due to long-cable skewing, utilize the integrated adjustment dial on the Receiver. Slowly turn the dial with a fine screwdriver until the text on the display appears sharp and the color alignment is restored.
