This technical data sheet outlines the ES931 Series High-Performance Video Encoder/Decoder platform, covering all operational variants distributed and serviced exclusively by SKYRS in Pakistan.

Product Overview: ES931 Series

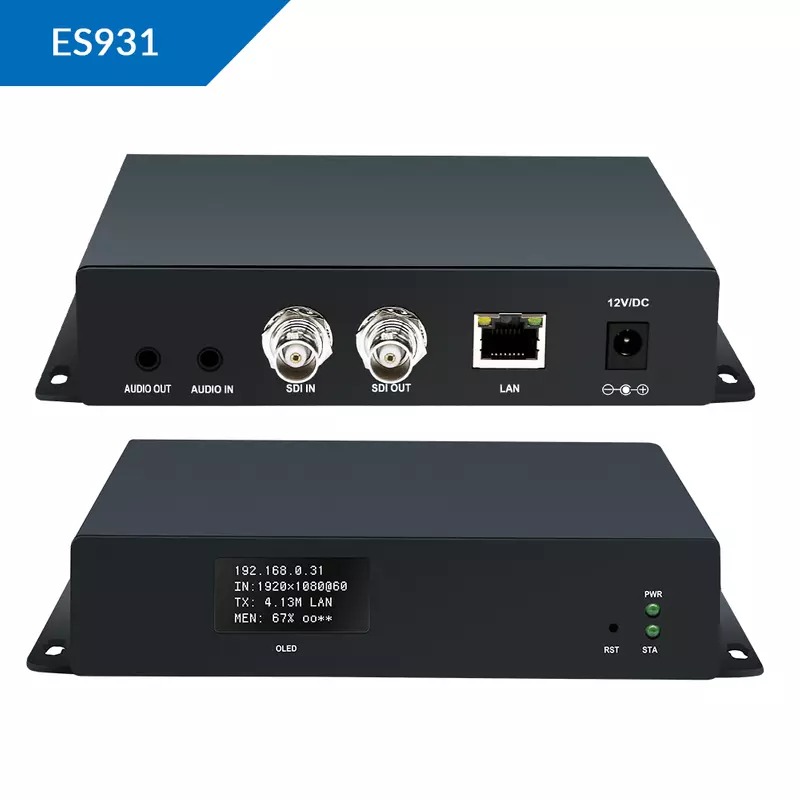

The ES931 is an enterprise-grade hardware video processing terminal that functions as both a high-definition video encoder and a low-latency network decoder. Featuring a robust, compact metal enclosure, the ES931 is engineered for point-to-point IP video contribution, digital head-end CATV matrixes, real-time remote surveillance integration, and secure multi-destination live streaming. It utilizes advanced hardware-accelerated H.265 (HEVC) compression to deliver broadcast-quality video streams while saving up to 50% more network bandwidth than traditional AVC/H.264 codecs.

Technical Specifications and Variant Matrix

SKYRS stocks and maintains two specialized variations of the ES931 hardware to accommodate specific regional broadcasting and infrastructure topologies across Pakistan:

Exclusive SKYRS Availability and Service Guardrail

Notice to Infrastructure Operators: The distribution, procurement, firmware localization, and field deployment configurations of the ES931 series are exclusively available through SKYRS within Pakistan. Systems obtained through gray markets or unauthorized parallel importers lack the proprietary firmware kernels required to guarantee stream stability over regional ISP networks (including PTCL, Transworld, Nayatel, and StormFiber).

Deployment and On-Site Installation

SKYRS field engineers deploy, secure, and terminate the ES931 hardware following precise mechanical and electrical guidelines:

Mechanical Mounting and Environmental Control

• Form Factor Footprint: The ultra-compact, fanless chassis is designed to sit directly on a rack shelf, mount behind an LED wall, or attach neatly beneath a production camera rig.

• High-Density Rack Configuration: For central control rooms or head-ends, SKYRS can house up to 4 individual ES931 modules inside a customized 1RU rackmount bracket, or up to 16 blades inside a 3RU master chassis with built-in redundant power feeds.

• Environmental Thresholds: The installation zone must be well-ventilated and kept between -20°C and 60°C with non-condensing relative humidity below 90%.

Power Delivery and Cable Patching

• Power Protection: Wire the factory-provided 12V/1A DC power adapter into an online, double-conversion UPS system. This safeguards the ES931 microchips from the voltage drops, surges, and blackouts frequent in local electrical grids.

• Signal Mapping: Connect your raw camera feed, media player, or console output to the HDMI Input. Connect a local engineering monitor to the HDMI Loop-Out port for zero-latency physical confidence monitoring.

• Network Infrastructure Link: Route a shielded Cat6 ethernet cable from the 1000M RJ45 port directly to an isolated, QoS-prioritized streaming VLAN on your core switch.

Configuration Guide via SKYRS Dashboard

System provisioning is carried out via a secure, English-language embedded Web Panel managed during the initial handover by SKYRS technicians:

Step 1: Base LAN Initialization

• Connect a deployment laptop to the same physical switch or network segment as the ES931 unit.

• Statically assign your laptop’s IP address to the default factory subnet.

• Open an enterprise browser and type the default device management IP into the URL bar to log in.

• Navigate to the Network Settings section, disable DHCP, and assign a permanent static IPv4 address, netmask, and gateway matching the production network scheme.

Step 2: Stream Mode Mapping and Destination Routing

• Open the Stream Settings workspace on the web menu.

• Configure the transmission protocol based on your current project goals:

  • Point-to-Point Contribution (SRT): Toggle the device to SRT Caller or Listener mode. To handle packet loss on local internet backbones, adjust the latency buffer to roughly 2.5 to 3 times your connection’s Round Trip Time (RTT).

  • CDN Web Distribution (RTMP/RTMPS): Enter the specific ingest URL and unique Stream Key provided by your streaming destination (such as YouTube Live, Facebook Live, Wowza, or private IPTV servers).

• Save the profile and perform a soft system restart to activate live encoding or decoding.

Step 3: OSD Customization and Signal Loss Protection

• Navigate to the OSD (On-Screen Display) Control Panel.

• Turn on text or image overlays to embed transparent corporate watermarks, dynamic system runtime timestamps, or scrolling text updates directly across any of the 4 streams at exact coordinate locations.

• Go to the Signal Recovery Screen menu and upload a default troubleshooting graphic or company logo. Set the behavior to auto-trigger when an active input is missing; if your primary HDMI cable disconnects or the source cuts out, the ES931 will push your standby image rather than dropping the feed, keeping downstream players and CDNs connected.
