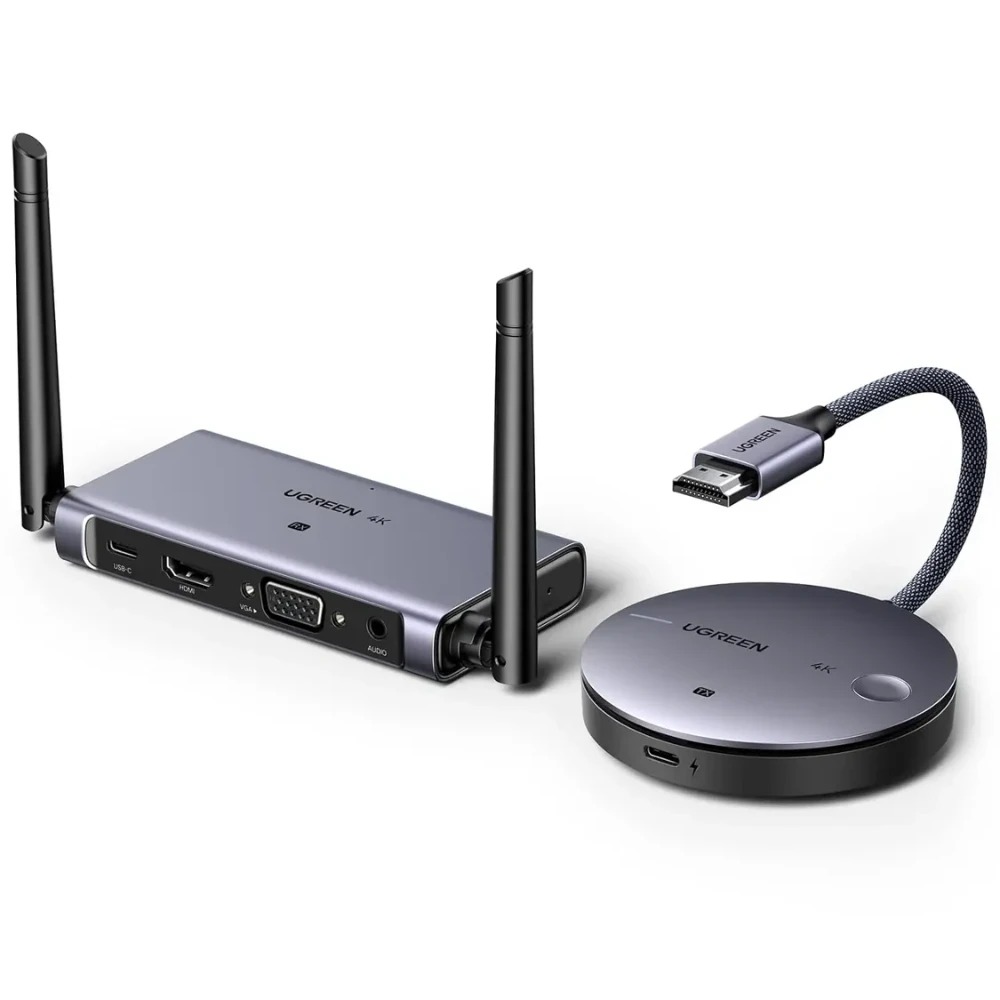

The UGREEN 90909A is a professional-grade 4K Wireless HDMI Extender Kit (Transmitter + Receiver). Designed to eliminate long cable runs, it provides a seamless 4K@30Hz video transmission solution for boardrooms, classrooms, and home theaters in Pakistan.
The 90909A uses 5GHz wireless technology to provide low-latency, high-definition video over long distances without the need for an existing Wi-Fi network.
| Feature | Specification Details |
| Model Number | 90909A (CM586) |
| Max Resolution | 4K@30Hz (Ultra HD) |
| Wireless Range | Up to 50 Meters (165ft) Line-of-Sight |
| Wireless Band | Dual-Band (2.4GHz / 5GHz) |
| Interfaces (TX) | 1 x HDMI Input, 1 x USB-C (Power) |
| Interfaces (RX) | 1 x HDMI Output, 1 x VGA Output, 1 x 3.5mm Audio Out, 1 x USB-C (Power) |
| Audio Quality | 24-bit/48kHz High-Fidelity Audio |
| Latency | <0.1s (Ultra-low latency for streaming/presentations) |
Skyrs carries the complete wireless ecosystem to ensure your specific display needs are met:
UGREEN 90909A (Elite Wireless): The 4K@30Hz dual-antenna kit. Includes both HDMI and VGA receiver ports for maximum display compatibility.
UGREEN 50M 1080P Variant: A budget-friendly version for standard high-definition presentations where 4K is not required.
UGREEN Wireless Mini Extender: A portable, dongle-style variant for users who need a more compact solution for travel.
The 90909A is designed for high-end professional deployment, requiring stable power and proper positioning for optimal 50m performance.
Transmitter (TX) Setup: Connect the TX unit to your source device (Laptop, PC, or TV Box) via HDMI. Connect the provided USB-C cable to a 5V/1A power source.
Receiver (RX) Setup: Connect the RX unit to your display (Projector, LED, or Monitor) via HDMI or VGA. Connect it to a 5V/1A power source.
Synchronization: The units are pre-paired at the factory. Simply power them on; the LED indicators will turn solid once the wireless link is established.
Audio Routing: If using a VGA monitor without speakers, connect external speakers to the 3.5mm jack on the RX unit.
Configuration and deployment expertise for the UGREEN 90909A are available only at Skyrs.
Signal Optimization: Skyrs provides technical advice on antenna positioning to overcome environmental interference in crowded Pakistani office buildings.
Dual Display Output: Our team can guide you on the simultaneous configuration of HDMI and VGA outputs for setups requiring two screens from a single wireless source.
Power Management: Only at Skyrs can you find specialized multi-port GaN chargers recommended to power both the TX and RX units without causing signal flickering due to under-voltage.
One-Click Connectivity: Support for the physical “Quick-Disconnect” button on the TX unit, allowing you to stop screencasting instantly during meetings without unplugging.
Skyrs Premium Promise: All UGREEN 90909A units from skyrs.com.pk are 100% original. Because wireless extenders are sensitive to regional wireless frequencies, our units are specifically verified for the regulatory bands used in Pakistan to ensure zero signal dropouts.
