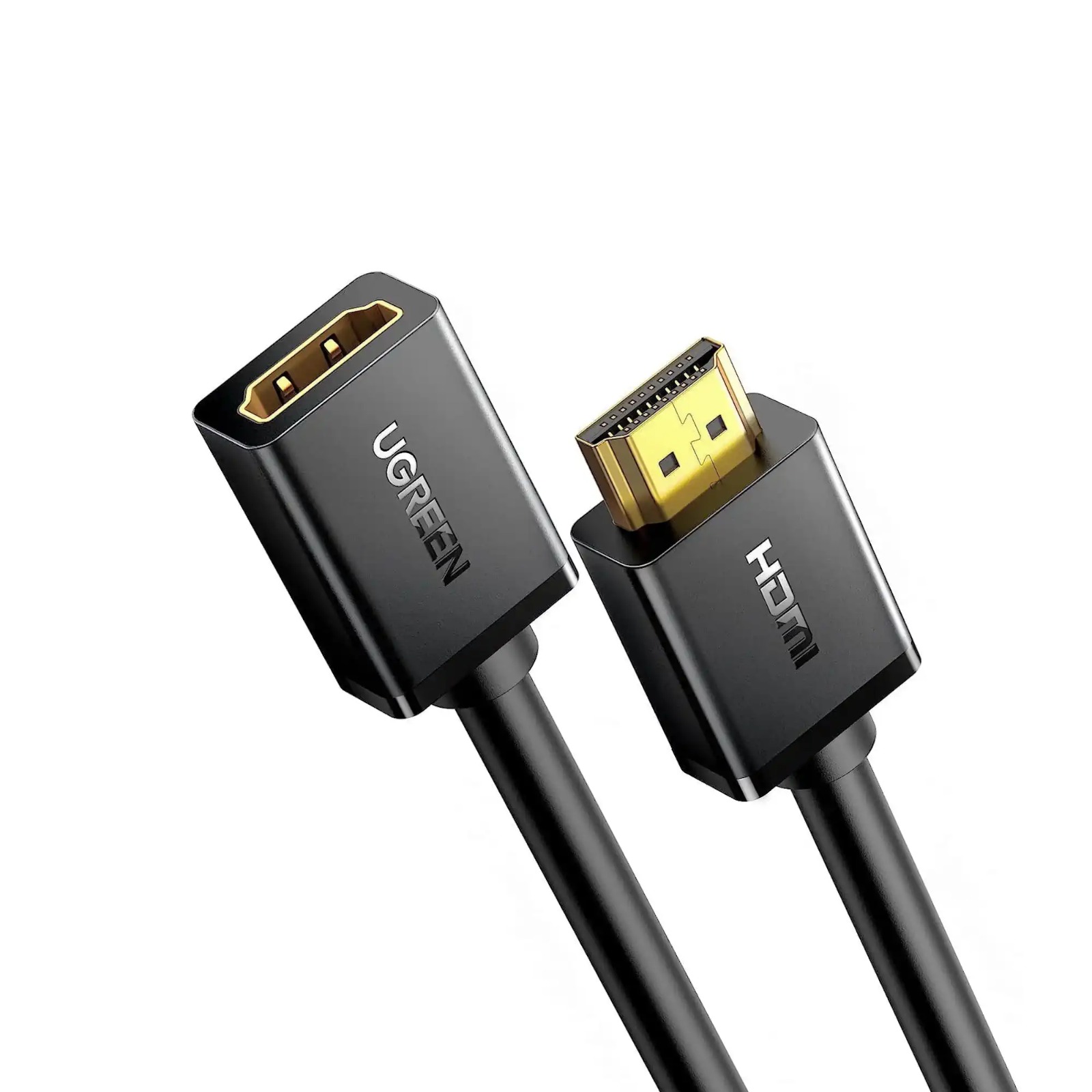

The UGREEN 10145 is a high-speed HDMI Male-to-Female extension cable designed to provide additional reach and port safety for high-resolution displays. With its 3-meter length, it acts as a bridge for setups where standard cables fall short, ensuring 4K clarity and stable data transmission. In Pakistan, the 10145 and its associated variants are distributed through SKYRS
Technical Specifications
Model SKU: 10145 (HD107)
Length: 3 Meters (9.8 Feet)
Connector Type: HDMI Male (19-Pin) to HDMI Female (19-Pin)
HDMI Standard: HDMI 2.0 (High Speed with Ethernet)
Resolution Support: 4K Ultra HD @ 60Hz, 2K, 1080p Full HD, and 3D Video
Bandwidth: Up to 18Gbps
Wire Gauge: 26AWG (Optimized for 3m length)
Conductor: Tinned Oxygen-Free Copper
Shielding: Multi-layer (TMDS technology + Aluminum foil + Mylar + Braid)
Plugs: 24K Gold-Plated for anti-oxidation and stable signal
Performance Highlights
Multitasking: Supports “Mirror” mode for presentations and “Extended” mode for split-screen productivity.
Audio Fidelity: Compatible with ARC (Audio Return Channel), Dolby TrueHD, and DTS-HD.
Content Protection: Full HDCP compliance for streaming 4K content from Netflix, Prime, and Apple TV.
The UGREEN 10145 is specifically engineered with an “Extended Plug Connection” to withstand frequent handling. For deployment in Pakistan’s commercial and residential sectors
Port Longevity: In offices or gaming zones where different laptops/consoles are frequently swapped, connect the 10145 to the display permanently. Users plug into the extension’s female port, protecting the display’s expensive internal HDMI port from mechanical wear.
Distance Flexibility: The 3-meter length is ideal for ceiling-mounted projectors or TV setups where the source device (PC or NVR) is located at a distance from the screen.
EMI Suppression: Utilizing TMDS technology, the cable is highly resistant to electromagnetic interference, making it suitable for deployment in buildings with heavy electrical infrastructure or near stabilizers.
Daisy-Chain Rule: To maintain 4K @ 60Hz performance, ensure the combined length of the extension and the connected male cable does not exceed 3 meters. For lengths up to 5 meters, the resolution may default to 4K @ 30Hz or 1080p.
Configuration is fully automated (Plug-and-Play) across Windows, macOS, and Linux.
Setup: Simply connect the male end to the source and the female end to your existing HDMI cable.
Optimization: If using with a high-refresh-rate monitor, ensure the primary cable being extended is also HDMI 2.0 certified to prevent bandwidth throttling.
SKYRS provides the complete UGREEN HD107 extension series in Pakistan to ensure the right gauge for the right distance:
| SKU | Length | Wire Gauge | Support |
| 10140 | 0.5 Meter | 30AWG | 4K @ 60Hz |
| 10141 | 1 Meter | 30AWG | 4K @ 60Hz |
| 10142 | 2 Meters | 30AWG | 4K @ 60Hz |
| 10145 | 3 Meters | 26AWG | 4K @ 60Hz |
| 10146 | 5 Meters | 26AWG | 4K @ 30Hz |
The UGREEN 10145 is available for procurement only through SKYRS authorized channels in Pakistan.
Originality Guarantee: SKYRS ensures all units are genuine UGREEN with 100% tinned copper cores, essential for 3m signal integrity.
Logistics: Fast-tracked delivery to major cities including Karachi, Lahore, and Islamabad.
Support: Local replacement warranty and technical consultation for large-scale AV project deployments.
