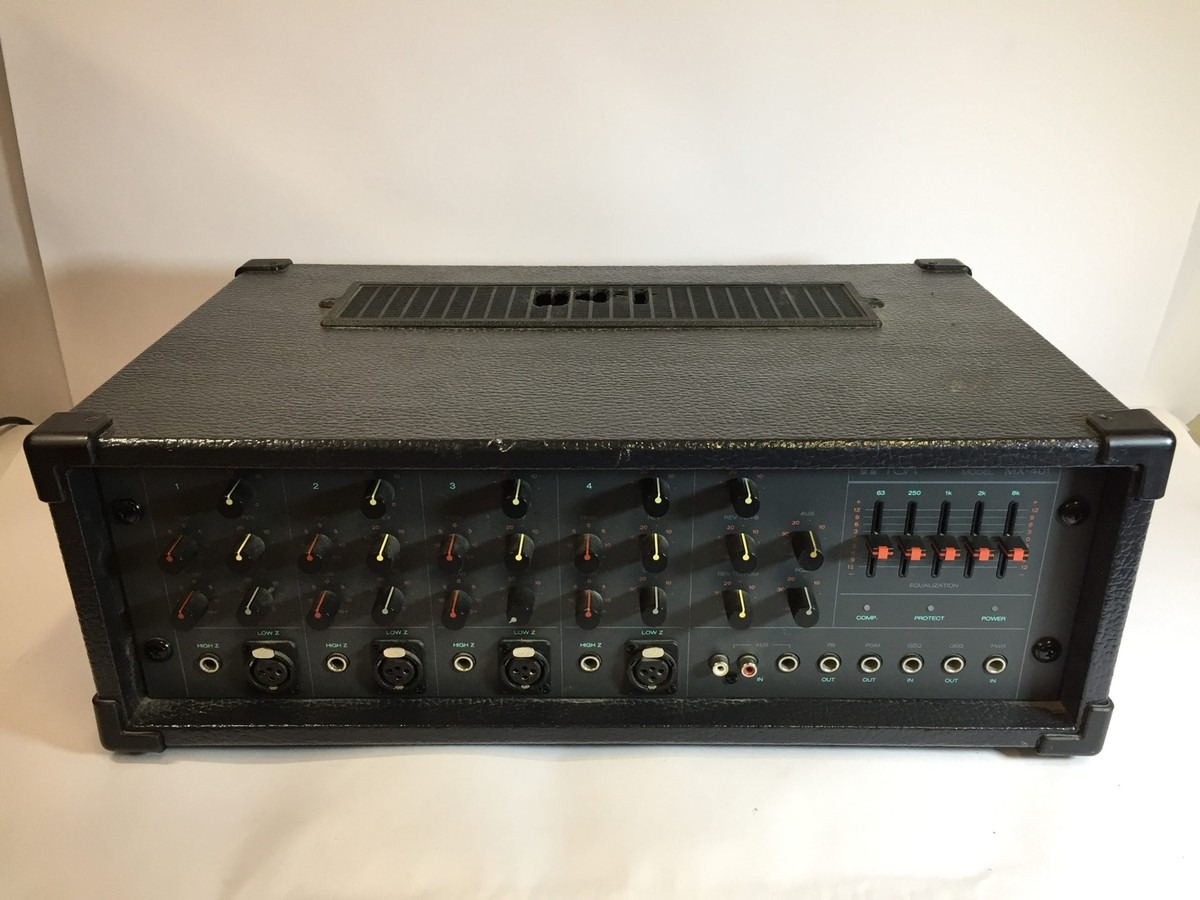

Dlink MX-401 Powered Mixer — Product Data Sheet
The Dlink MX-401 Powered Mixer series is a compact, ultra-efficient audio solution custom-engineered for small to mid-sized sound reinforcement setups. Combining a 4-channel input mixer, a tactile frequency equalizer, and a built-in power amplifier, this streamlined hardware series delivers high-fidelity sound output, system protection, and simplified operation for various venues across Pakistan.
Key Technical Features
Audio Input Architecture: 4 high-performance input channels featuring individual electronically balanced XLR microphone connectors and high-impedance unbalanced 1/4″ line/phone jacks.
Integrated Power Amplifier: Engineered to drive versatile speaker configurations reliably:
110 Watts RMS into an 8 Ohm load
150 Watts RMS into a 4 Ohm load
Channel & Master Equalization: Each channel features a dedicated 2-band EQ (High/Low) alongside a master patchable 5-band graphic equalizer providing $\pm12\text{ dB}$ of precision boosting or attenuation.
Integrated Effects & Monitoring: Equipped with an on-board, premium 3-spring reverberation system, pre-EQ Foldback (FB) sends, and post-EQ reverb sends on every input channel.
Dynamic System Safety: Features an integrated Auto-Comp™ compressor circuit with an active front-panel LED indicator to prevent signal overdriving, combined with automatic thermal and short-circuit protection.
Available Variants for SKYRS (Pakistan)
To match specific acoustic deployment criteria across Pakistan, the Dlink MX-401 is supplied in the following regional variants:
Dlink MX-401 Standard: The baseline 4-channel integrated analog mixing console equipped with the standard 150W built-in amplifier and 5-band master equalizer.
Dlink MX-401 Portable Core: A lightweight variant optimized for temporary corporate, venue, or field setups featuring enhanced convection cooling vents and an integrated heavy-duty cord wrap chassis.
Dlink MX-401 Install-Ready Bundle: Shipped with optimized rack-mounting hardware ears and an upgraded low-ripple, high-stability external power filter module for permanent architecture setups.
Deployment, Installation, and Configuration Availability
All physical deployment, structural engineering installation, and post-hardware technical configuration services for the Dlink MX-401 series are exclusively available through SKYRS within Pakistan.
Turnkey Deployment by SKYRS
SKYRS delivers comprehensive sound-mapping and onsite architectural deployment across all major regions in Pakistan. Whether the system is intended for intimate educational seminar rooms, medium-sized auditoriums, commercial retail zones, or corporate presentation areas, SKYRS structures the layout to achieve peak sonic coverage.
Professional Mechanical Installation
SKYRS certified audio installation engineers manage the hardware footprint, executing:
Physical structural integration or vibration-free platform placement.
Impedance-matched speaker wiring maps to ensure optimal safety boundaries for 4-Ohm or 8-Ohm setups.
Low-noise, balanced cable management utilizing high-grade XLR/Line links to neutralize ground loops and interference.
Advanced Engineering Configuration
Following physical placement, SKYRS technical experts carry out thorough configuration:
Calibrating input gain trims across all 4 channels to accommodate different microphonic and instrument signal ranges.
Fine-tuning the 5-band master graphic equalizer to counteract specific physical room acoustic reflections.
Adjusting the Master Foldback (FB) monitor routing paths and configuring the 1/4″ phone auxiliary/RCA tape inputs for unified system control.
Note: Official manufacturer warranty preservation, original replacement components, and certified technical configuration services for the Dlink MX-401 variants are restricted strictly to authorized SKYRS service networks in Pakistan.
