SKYRS Pakistan Technical Specification Document Equipment: MP10U Ultra-Compact H.265 UVC HDMI Media Player, Decoder, & Encoder
PRODUCT OVERVIEW
The MP10U is a highly integrated, pocket-sized multimedia processing appliance that combines the functionalities of an IP video decoder, hardware streaming encoder, and digital signage media player into a single robust unit. Housed in a compact, lightweight aluminum enclosure, it supports advanced H.265 (HEVC) and H.264 (AVC) video processing architectures.
The device can decode network IP streams or local USB media files directly to an HDMI display, while simultaneously serving as a UVC (USB Video Class) driver-free capture adapter for computers. Distributed across Pakistan by SKYRS, the MP10U provides an exceptionally cost-effective, versatile solution for digital signage, video conferencing front-ends, localized CCTV decoding, and long-distance point-to-point media distribution.
KEY PRODUCT FEATURES
True Multi-Functional Architecture: Operates seamlessly as an IP-to-HDMI decoder, a USB media file player, or a local media-to-IP streaming encoder.
Universal UVC Driver-Free Output: Features a dedicated USB output port that acts as a standard USB Video Class capture card, allowing direct, plug-and-play integration into PC streaming software like OBS, vMix, Zoom, and Teams.
Efficient Dual-Codec Processing: Supports H.265/HEVC and H.264 video standards, allowing high-fidelity playback and bandwidth-saving compression.
Flexible Web UI Control: Dual-mode embedded configuration panel with separate dedicated factory default IP configurations for Encoder mode (192.168.1.168) and Decoder mode (192.168.1.169).
Advanced On-Screen Display (OSD): Enables real-time regional text overlays, timestamps, and custom graphic logo insertions on live video outputs.
Industrial Reliability: Embedded Linux system structure engineered for continuous 24/7/365 operational uptime with high thermal threshold parameters.
TECHNICAL SPECIFICATIONS
Hardware and Interface
Network Port: 1 x 100/1000 Mbps Full-Duplex RJ-45 Ethernet Interface
Video Output: 1 x HDMI (Type A, Supporting up to 1080P at 60fps)
Audio Output: 1 x 3.5mm Stereo L/R Analog Jack, Embedded HDMI Audio
USB Input Port: USB Host for U-Disk/External Hard Drive media file playback
USB Output Port: USB UVC Type Video Capture link for PC operating systems
Decoding Mode Specifications
Inbound Network Streams: H.265 Main Profile, H.264 Baseline/Main/High Profile
Supported IP Protocols: HTTP, HLS, RTSP, RTMP/RTMPS, SRT, UDP, RTP, ONVIF
Max Decoding Throughput: 1 Channel at 3840×2160 at 30fps, or 2 Channels at 1080P at 60fps, or 4 Channels at 1080P at 30fps
Local USB Media Playback: Supports playlist looping, shuffle modes, and single-track repeats for digital signage files
Encoding Mode Specifications
Video Coding Standard: H.264/AVC or H.265/HEVC (Compresses USB media content directly to the network)
Stream Output Resolution: Matches file source properties up to 1080P at 60fps
Compression Bitrate: Adjustable range from 32 kbps to 32,000 kbps
Audio Sampling Architecture: 8000 Hz to 48,000 Hz, L/R Stereo, Formats: AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Physical and Electrical
Chassis Dimensions: Ultra-miniature footprint (85mm x 55mm x 30mm)
Net Product Weight: Approximately 130 grams
System Power: 12V DC, 1A input line with highly efficient low consumption (under 5 Watts)
Operating Temperature: -20 degrees Celsius to 80 degrees Celsius
REGIONAL PRODUCT VARIANTS FOR SKYRS PAKISTAN
To suit specific localized media deployment environments, field monitoring networks, and retail marketing infrastructures within major Pakistani cities, the MP10U series is deployed in four targeted functional variants:
MP10U-STD (Standard Pocket Media Terminal)
Primary Configuration: Base hybrid media player, decoder, and UVC capture unit with standard gigabit networking.
Ideal Deployment: Corporate boardrooms, retail digital signage loops, and IT workstations across Karachi (DHA, Clifton, I.I. Chundrigar) and Lahore (Gulberg, Model Town).
MP10U-4K (Ultra HD Playback Variant)
Primary Configuration: Upgraded internal graphics processing module optimized specifically for high-bitrate true 4K local media decoding and presentation display layout.
Ideal Deployment: Premium electronic retail displays, command control rooms, and luxury presentation venues in Islamabad, Rawalpindi, and Lahore.
MP10U-IND (Industrial Wide-Temperature Variant)
Primary Configuration: Equipped with an upgraded ruggedized, passably cooled alloy chassis with enhanced heat-sink modules to withstand severe climate environments without thermal throttling.
Ideal Deployment: Outdoor advertising billboards, industrial campus public addresses, and remote CCTV decoding stations across high-temperature zones like Multan, Faisalabad, Sukkur, and Hyderabad.
MP10U-DC5V (Mobile Field Production Variant)
Primary Configuration: Modified power management system that operates over standard 5V USB power inputs instead of standard 12V mains, enabling operation via portable power banks or vehicle accessory outlets.
Ideal Deployment: Mobile DSNG vans, field broadcast setups, and on-location news gathering operations within Peshawar, Quetta, and roaming rural regions.
TARGET APPLICATION SCENARIOS IN THE PAKISTANI MARKET
Low-Cost Digital Signage: Allows retail businesses and banks to display synchronized commercial loops from a USB drive while maintaining a remote IP-override network stream channel if needed.
IP Camera Monitoring Decoder: Directly acts as a dedicated endpoint hardware decoder to translate ONVIF or RTSP security camera feeds onto localized LED reception monitors without relying on a full NVR computer setup.
Web Conferencing and Education Bridge: Functions as a bridge in remote learning configurations by converting professional camcorder HDMI signals into an instantly recognized UVC camera source for online classrooms.
Skyrs is the only vendor in Pakistan that has oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment for call center call centre and software houses. Therefore, we deliver unmatched hardware deployment options countrywide.
Businesses can acquire the best oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment directly through our nationwide network. We satisfy your high-density corporate needs completely.
Our supply chains remain active across all provinces. Consequently, companies utilize used oupree VIDEO STREAMING HARDWARE MANUFACTURER in different cities like karachi , lahore , islamabad, rawalpindi , faisalabad etc and equipment for call center call centre in pakistan.
If you require regional pricing metrics, we provide the oupree price in Karachi instantly. Moreover, clients can discover the updated MP10U H.265 UVC HDMI Media Player price in peshawar.
We maintain the standard oupree VIDEO STREAMING HARDWARE MANUFACTURER price in Pakistan to assist network planners. Meanwhile, you can verify the stable MP10U H.265 UVC HDMI Media Player price in faisalabad online.
Our logistics network safely extends across northern areas. For instance, we offer the official oupree VIDEO STREAMING HARDWARE MANUFACTURER price in kpk.
Furthermore, you can check the MP10U H.265 UVC HDMI Media Player price in quetta today. If your team needs immediate deployment, please choose to “Buy oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment Lahore/Islamabad”.
Corporate infrastructures require genuine equipment, so we supply verified Branded used oupree VIDEO STREAMING HARDWARE MANUFACTURER units. Alternatively, budget-conscious groups can select a certified Refurbished oupree VIDEO STREAMING HARDWARE MANUFACTURER device.
Every order includes complete documentation, featuring the localized oupree VIDEO STREAMING HARDWARE MANUFACTURER pack price. When you scale up your operations, the secure oupree VIDEO STREAMING HARDWARE MANUFACTURER Migration toolkit ensures continuous transmission.

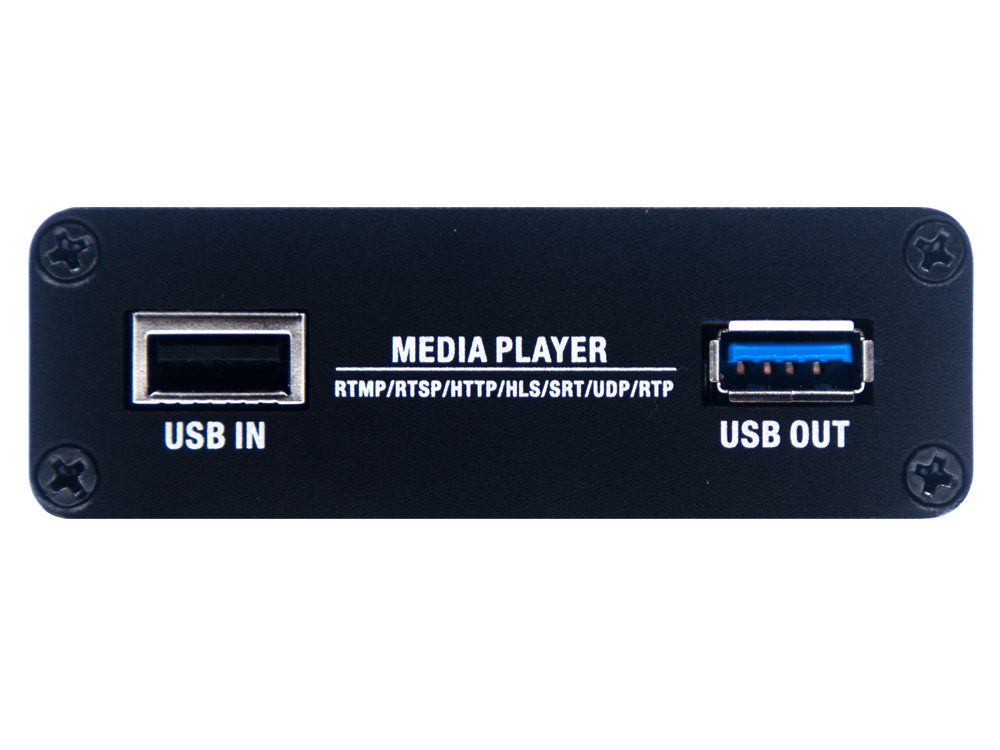

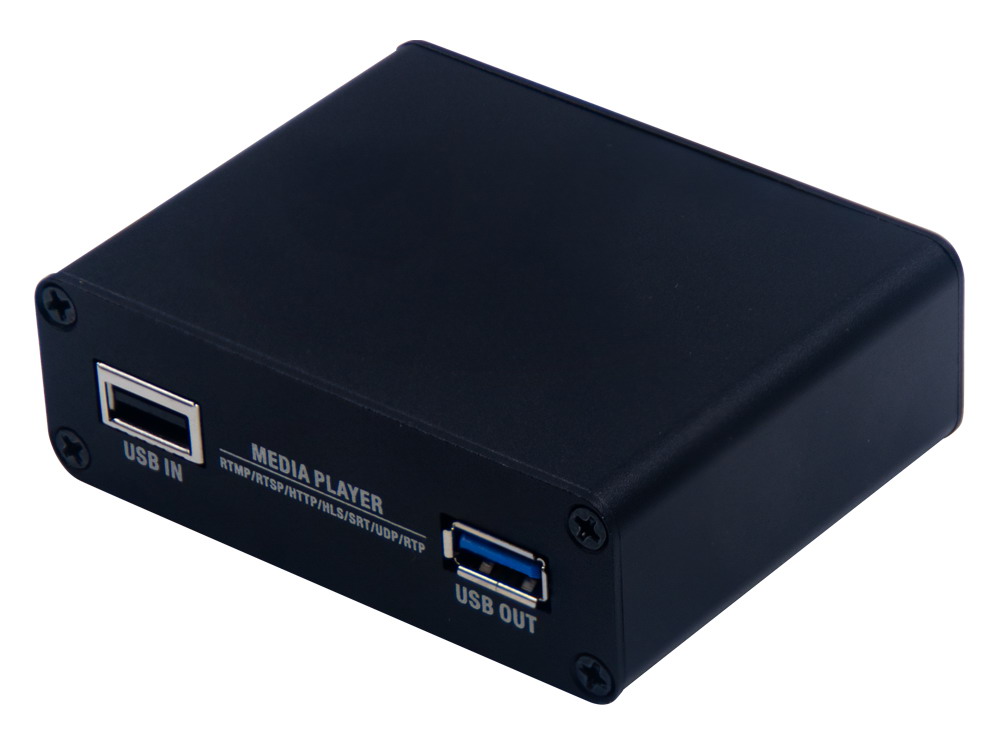

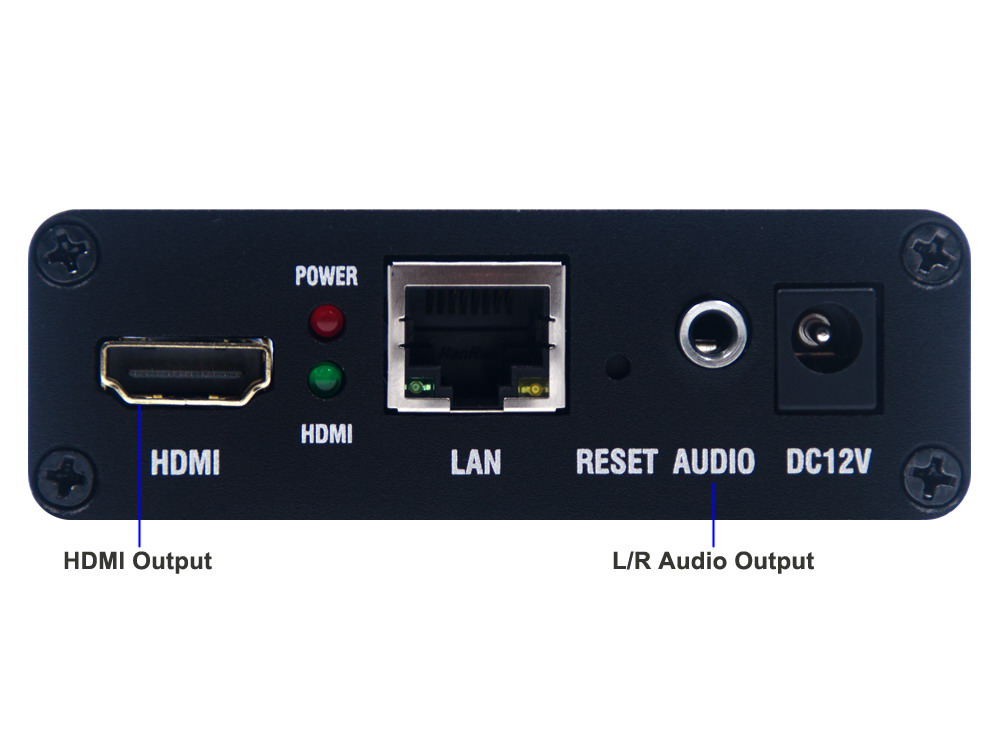

Figure 1: Official MP10U Media Player Hardware Interface via Oupree
We present the Oupree MP10U H.265 UVC HDMI Media Player all variants for heavy multi-channel workloads. For initial provisioning, check the MP10U H.265 UVC HDMI Media Player configuration guide.
Our engineering team helps monitor the specific MP10U H.265 UVC HDMI Media Player throughput limit during peaks. For architectural assessments, look at the comprehensive datasheet.
If processing requirements scale upward, users can apply an MP10U H.265 UVC HDMI Media Player memory upgrade. Additionally, every chassis fits standard systems using a dedicated MP10U H.265 UVC HDMI Media Player rack mount kit.
This hardware executes intensive video streaming hdmi wireless streaming hdmi encoding over ethernet ip protocols smoothly. Thus, we support different variants of oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment for drone video streaming will be product options for operations.
Administrators can install the newest MP10U H.265 UVC HDMI Media Player update easily. To unlock full functionality, you must complete the MP10U H.265 UVC HDMI Media Player security license activation.
For asset management, the verified MP10U H.265 UVC HDMI Media Player used price 2026 helps projection models. This platform functions perfectly within any demanding call center call centre center.
Our team delivers an all-inclusive oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment configuration guide for immediate hardware deployment. Network administrators can isolate data pathways by implementing the oupree VIDEO STREAMING HARDWARE MANUFACTURER VLAN configuration workflow.
If unexpected errors occur, you should review the guide “How to reset oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment”. To maintain security, download the authentic oupree VIDEO STREAMING HARDWARE MANUFACTURER firmware update download files immediately.
Engineers can visit the “oupree VIDEO STREAMING HARDWARE MANUFACTURER MP10U H.265 UVC HDMI Media Player datasheets download” directory. Finally, always calculate the exact MP10U H.265 UVC HDMI Media Player PoE power budget beforehand.
Skyrs operates as the premier oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment series distributor Pakistan. Below is a feature analysis with traditional transmission items:
| System Metric | Oupree MP10U All Variants | Standard Alternative Player |
| Output Capability | 4K Ultra HD HDMI Output | Basic 1080P Output |
| Capture Interface | UVC Driverless USB Capture | Manual PCIe Capture Card |
| Streaming Types | HTTP, HLS, RTMP, RTMPS, RTSP, UDP | Generic RTSP Only |
| Compression Standard | H.265 HEVC and H.264 AVC | Basic H.264 Only |
| Routing Control | Premium oupree VIDEO STREAMING HARDWARE MANUFACTURER Switch integration | Standalone Unmanaged Port |
Procurement teams can request a formal “MP10U H.265 UVC HDMI Media Player bulk quote”. You can buy your units directly from Skyrs Pakistan for full warranty protection.
The hardware leverages an automated UVC driverless architecture to receive and output video fields. Because the system runs on an optimized platform, it decodes local files and passes network streams without installation delays.
The unit runs on a secure embedded system kernel. Therefore, it maintains complete harmony with advanced network hardware fabrics, streaming matrices, and internal routing oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment setups.
Administrators can initiate a clean hardware reset using the integrated management dashboard interface. Alternatively, apply the steps found in “How to reset oupree VIDEO STREAMING HARDWARE MANUFACTURER equipment” for structural refreshes.
Our dedicated enterprise sales division processes wholesale volume inquiries immediately. Please contact our main distribution office to receive a competitive “MP10U H.265 UVC HDMI Media Player bulk quote” designed for your company.
Tags: #OupreePakistan #MP10UPlayer #UVCEncoder #IPStreaming #4KMediaPlayer #DroneStreaming #SkyrsDistributor #CallCenterHardware
