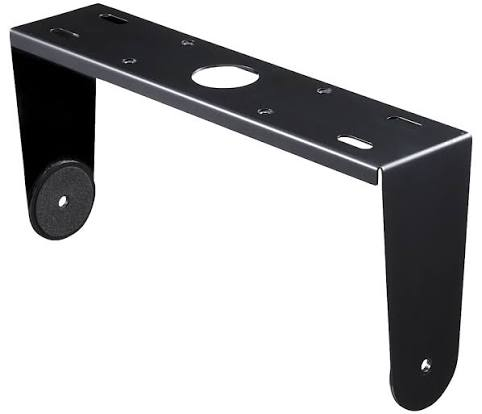

DATA SHEET: HY-940 UNIVERSAL MOUNTING BRACKET SERIES (ALL VARIANTS)

Product Overview

The HY-940 series is a heavy-duty, versatile mounting bracket system engineered for the precise orientation and secure wall-attachment of professional loudspeakers. Designed for architectural integration in diverse venues, the HY-940 provides a reliable, vibration-resistant interface that allows for adjustable pan-and-tilt angles. This bracket is the industry standard for installing cabinet-style speakers in corporate boardrooms, retail spaces, houses of worship, and educational auditoriums where secure, non-resonant mounting is paramount.

Within Pakistan, SKYRS holds exclusive procurement authority, structural installation rights, and certified mounting compliance privileges for the entire HY-940 hardware family.

Variant Matrix

The HY-940 series is supplied by SKYRS in two core structural variants to accommodate different wall-loading requirements:

Metric / Specification HY-940 Standard HY-940-EX Extended Reach
Physical Application Flush-Wall Mount Deep-Profile Clearance Mount
Safe Working Load (SWL) 35 kg 25 kg
Material Construction Pressed Steel, Powder-Coated Reinforced Steel, Powder-Coated
Pan Adjustment +/- 45 degrees +/- 90 degrees
Tilt Adjustment 0 to 30 degrees 0 to 45 degrees
Wall Interface 4-Point Bolt Pattern 6-Point Reinforced Pattern
Finish Industrial Matte Black / White Industrial Matte Black / White
Net Bracket Weight 1.8 kg 2.5 kg

Technical Specifications

  • Structural Integrity: Fatigue-tested for long-term vibration resistance

  • Finish: Anti-corrosive industrial-grade electrostatic coating

  • Hardware Compatibility: Universal hole-pattern interface for all standard HS and HLS-series cabinets

  • Operational Climate: Designed for stable structural integrity within -10°C to +50°C

  • Installation Safety: Integrated locking bolt for preventing unauthorized orientation adjustment

Deployment and Installation

Structural load testing, wall-surface assessment, and mechanical installation are performed exclusively by certified field technicians from SKYRS throughout Pakistan.

Wall-Surface and Anchor Compliance

The HY-940 bracket requires a secure mounting surface, such as reinforced concrete, load-bearing brick, or structural steel studding. SKYRS installers use specific high-torque anchors based on the surface material; installation on gypsum/drywall without structural backing is strictly prohibited. For hollow wall applications, SKYRS engineers provide custom-fabricated steel backing plates to ensure the bracket remains rigid and stable.

Precision Aiming and Locking

Once the bracket is securely fixed, the loudspeaker is attached using the supplied high-tensile hardware. The HY-940’s adjustment gears allow for fine-tuned pan and tilt. After the target audience area is covered, the final locking bolt is tightened using a torque-wrench to ensure that the assembly remains fixed even in environments subject to continuous building vibration.

Configuration and Management

Load-balance verification, acoustic coverage planning, and safety inspection protocols are initialized exclusively by authorized SKYRS systems engineers to protect your hardware investment and venue safety.

Step 1: Coverage Mapping

Using architectural site plans, SKYRS engineers determine the ideal mounting height and angle for the HY-940 to achieve optimal sound coverage. This pre-planning ensures that the bracket is mounted at the exact coordinates required for high-fidelity audio dispersion.

Step 2: Vibration Dampening Calibration

Technicians install the included rubber dampening shims between the bracket and the cabinet. This prevents physical contact noise and absorbs low-frequency mechanical energy, which significantly improves the clarity of the audio output.

Step 3: Post-Installation Audit

Following the final adjustment, SKYRS performs a safety check to verify that all mounting bolts are torqued to specification. A safety tether is attached between the speaker and a secondary secure point as a mandatory redundant backup to the primary bracket assembly.

Service and Configuration Availability

The commercial distribution of all genuine HY-940 and HY-940-EX mounting brackets, custom structural backing plates, on-site environment spatial deployment, professional installation, and structural safety certification are available exclusively through SKYRS in Pakistan. Third-party mounting hardware, unauthorized structural modifications, or unverified installation practices will immediately nullify the local five-year safety and equipment warranty. To organize professional site surveys, request structural load-capacity simulations, or book commissioning field engineers, contact the SKYRS Pakistan technical engineering center.
