Hiksemi Consumer eMMC Price in Pakistan | All Variants

Here is the product datasheet and deployment guide for the Hiksemi Consumer eMMC lineup, tailored for SKYRS Pakistan.

Hiksemi Consumer eMMC Series Datasheet

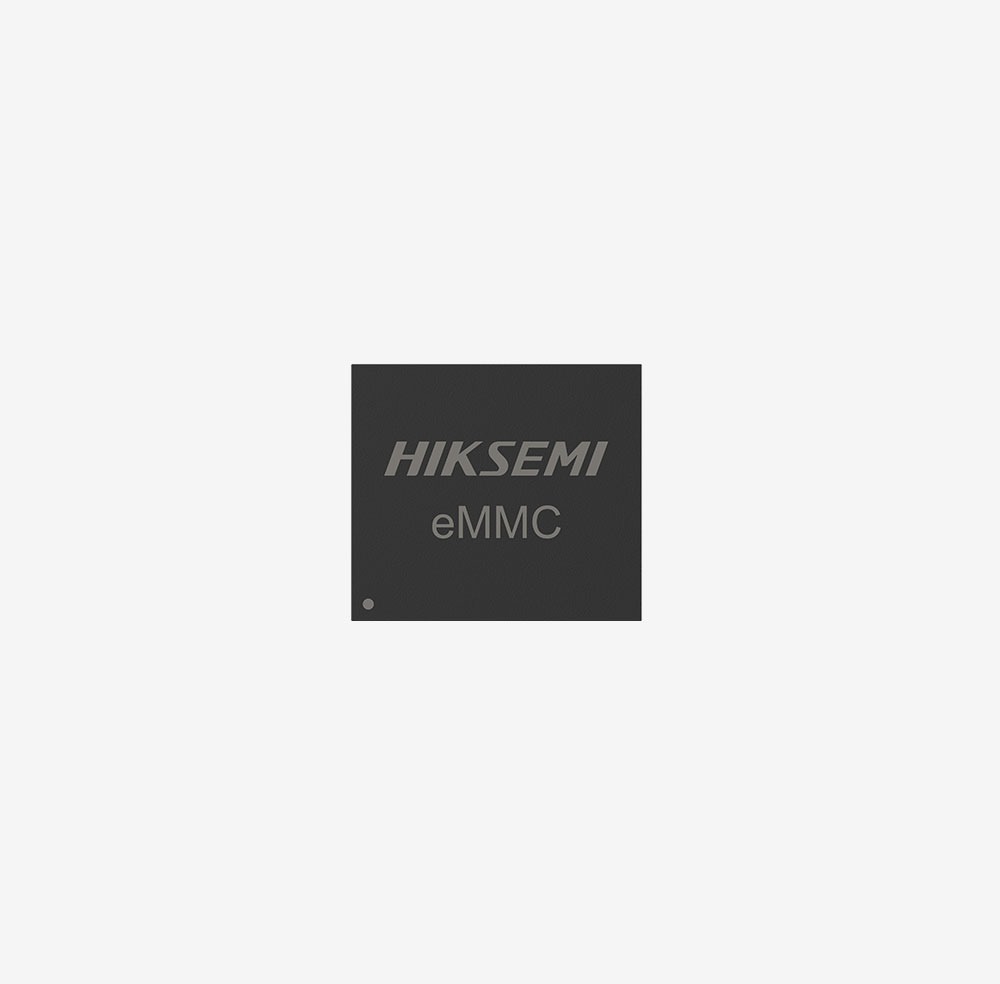

The Hiksemi Consumer eMMC (embedded MultiMediaCard) series is a high-performance, ultra-compact embedded storage solution optimized for smart devices, tablets, OTT boxes, and embedded systems. Distributed exclusively by SKYRS in Pakistan, these chips combine high-density 3D NAND flash with an advanced controller to deliver stable data transmission and long-term reliability.

Key Features

  • High Efficiency: Powered by advanced controller algorithms to optimize read/write speeds.

  • Ultra-Compact Footprint: Standard BGA packaging allows for seamless integration into slim device architectures.

  • Industrial-Grade Reliability: Features advanced Bad Block Management, ECC (Error Correction Code), and Wear Leveling.

  • Power-Optimized: Low power consumption modes to extend the battery life of host devices.

Product Selection & Variants

Capacity Part Number (Standard) Interface Package Type Max Read/Write (MB/s)* Target Applications
16GB HS-eMMC-Consumer-16G eMMC 5.1 BGA 153 260 / 40 IoT Devices, Smart Meters
32GB HS-eMMC-Consumer-32G eMMC 5.1 BGA 153 280 / 80 Linux Boards, IP Cameras
64GB HS-eMMC-Consumer-64G eMMC 5.1 BGA 153 310 / 140 Smart TVs, OTT Boxes, Tablets
128GB HS-eMMC-Consumer-128G eMMC 5.1 BGA 153 320 / 160 Advanced Automotive/Infortainment

Note: Performance metrics are based on internal testing. Actual speeds may vary depending on the host hardware, OS, and application workload.

Technical Specifications

  • Standard Protocol: JEDEC eMMC 5.1 compliant (backward compatible with older versions)

  • Bus Width: 1-bit, 4-bit, 8-bit

  • Operating Voltage:

    • Core Voltage (VCC): 3.3V

    • I/O Voltage (VCCQ): 1.8V / 3.3V

  • Operating Temperature: -25°C to 85°C (Consumer/Extended range)

  • Storage Temperature: -40°C to 85°C

Deployment, Installation, and Configuration

Because eMMC is an embedded, surface-mounted storage IC, deployment requires specialized hardware tools and precise engineering protocols.

1. Installation & Hardware Deployment

  • Mounting Method: Surface Mount Technology (SMT) using standard lead-free reflow soldering profiles.

  • Package Compatibility: Standard FBGA 153-ball layout.

  • Moisture Sensitivity: Must handle according to IPC/JEDEC J-STD-020 standards (ensure proper baking if components have been exposed to moisture before reflow).

  • Replacement/Rework: Requires a dedicated BGA rework station, precision stencils for reballing, and high-quality flux to avoid thermal stress on surrounding PCB components.

2. Software Configuration & Partitioning

  • Host Controller Initialization: Ensure the host SoC firmware (U-Boot, BIOS, or Bootloader) is configured to initialize the eMMC 5.1 bus interface at the correct I/O voltage (1.8V preferred for HS400 speeds).

  • Boot Partitioning: Hardware boot partitions (Boot 1 and Boot 2) must be configured via the host controller if the device is intended to store system bootloaders.

  • RPMB Configuration: The Replay Protected Memory Block (RPMB) can be securely provisioned with a cryptographic key during production for applications requiring secure boot and credential storage.

  • File System Recommendation: Ext4, F2FS (Flash-Friendly File System), or FAT32 depending on the OS environment (Linux/Android/RTOS).

Availability Notice

Exclusive Distribution: The complete variant lineup of Hiksemi Consumer eMMC chips is available in Pakistan only at SKYRS.

SKYRS provides localized technical support, bulk procurement options, and official warranty fulfillment for commercial clients, manufacturing hubs, and repair centers across Pakistan. Contact your dedicated SKYRS account representative for bulk tier pricing, sample requests, and technical integration assistance.
