Product Overview

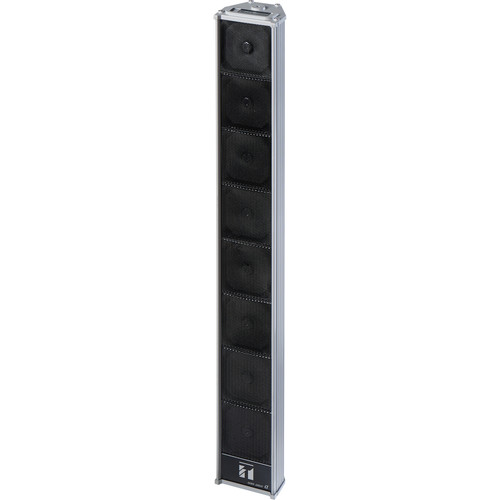

The HA-1010-AM QU series represents an elite lineup of long-range outdoor slim horn array speakers engineered for high-intelligibility mass notification and critical voice paging over expansive spaces. By aligning eight high-efficiency horn units in a vertical line array, the HA-1010 achieves flat acoustic wavefront transmission, providing sound propagation more than twice as far as conventional standalone horn setups. The system features tightly controlled vertical directivity that drastically reduces ceiling/ground echo, allowing clear mass notifications to reach targets up to 600 meters away. Typical deployments include airports, shipping ports, perimeter military bases, industrial parks, and sports arenas.
Within Pakistan, SKYRS is the exclusive technology integrator, procurement authority, and deployment partner for the complete HA-1010-AM QU horn array product range.
Variant Matrix
The HA-1010 platform is distributed through SKYRS in dedicated constant-voltage versions to meet specific project tap demands and safety profiles across Pakistan:
| Parameter / Model Metric | HA-1010-AM QU (Enterprise Baseline) | HA-1010-AMQ (High-Output Core) | HA-1010-EB (High-Capacity Node) |
| Primary Voltage Focus | 70V Line Dedicated Subnet | 70V / 100V Dual Line Core | 100V Line Heavy Industrial |
| Internal Driver Layout | 8x Integrated Horn Units | 8x Integrated Horn Units | 8x Performance-Tuned Units |
| Rated Input Power | 50 Watts | 60 Watts | 50 Watts |
| Continuous Impedance | 100Ω (50W) / 200Ω (25W) | 83Ω (60W) / 170Ω (30W) | 200Ω (50W) / 330Ω (30W) |
| Acoustic Sensitivity | 114 dB SPL (1W, 1m) | 114 dB SPL (1W, 1m) | 114 dB SPL (1W, 1m) |
| Maximum Calculated SPL | 131 dB SPL (50W, 1m) | 132 dB SPL (60W, 1m) | 132 dB SPL (50W, 1m) |
| Frequency Response | 350 Hz to 7,000 Hz | 350 Hz to 7,000 Hz | 350 Hz to 7,000 Hz |
| Environmental Rating | IPX5 Dust/Fluid Shielding | IP66 Complete Weather Seal | IPX5 Weatherproofed Case |
| Net Transducer Weight | 13.5 kg (29.76 lb) | 13.5 kg (29.76 lb) | 13.5 kg (29.76 lb) |
Technical Specifications
Dispersion Directivity Boundary: Constant coverage pattern mapping 90° Horizontal by 15° Vertical (measured at 2 kHz reference)
Enclosure Material: Salt-resistant, corrosion-treated structural aluminum paneling finished with protective gray polyurethane paint
Front Protecting Grille: Impact-resistant punched aluminum mesh casing (matte black)
Rigid Support Bracket: Heavy-gauge stainless steel framework (SUS 304 grading)
Safe Operating Envelope: Continuous operational reliability spanning -20°C to +55°C outdoor temperature fields
Deployment and Installation
Structural load testing, acoustic throw-vector calculations, and physical mounting execution are handled completely by certified network engineers from SKYRS throughout Pakistan.
Strict Orientation Alignment
The HA-1010-AM QU features an integrated internal moisture drain hole located on the bottom plate immediately adjacent to the speaker cord emergence point. The line array must always be mounted vertically with the designated directional arrow label on the rear pointing UP. Installing the unit inverted or beyond authorized tilt angles will result in direct rainwater gathering within the internal horn drivers, causing instantaneous voice coil shorts.
Rigging Stability and Pole Brackets
To securely fix this 13.5 kg linear column against architectural walls or high-elevation masts, installers must deploy structural stainless steel anchors. For deployments requiring precise horizontal panning (-45° to +45° adjustments), engineers mount the system utilizing matching heavy-duty pole bands and specialized Q-HA-1100 series mounting bracket plates anchored directly onto building ironwork.
System Configuration
Transformer tap mapping, zone load matching, and active equalizer tuning are managed through authorized procedures to preserve local replacement warranties.
Step 1: Transformer Line Tap Selection
Prior to sealing up the external junction box, configure the internal core input impedance leads to pull appropriate wattage for the segment. For the HA-1010-AM QU running on a 70V matrix, match lines to 100 Ohms for a full 50W output or 200 Ohms for a mid-tier 25W configuration. Never mismatch source voltages to avoid amplifier protection tripping.
Step 2: Acoustic Throw Optimization
Adjust the downward mechanical pitch of the array column on its mounting brackets. Because of the extremely narrow 15-degree vertical dispersion beam, a slight tilt modification error can overshoot the intended listening area completely. The angle must be locked securely utilizing the supplied M10 installation nuts torque-matched to field limits.
Step 3: Central Signal Processing Equalization
The narrow horn array design requires dedicated digital signal processing to avoid low-end feedback loop saturation. Program mandatory low-cut processing (high-pass filter curve initiated at 350 Hz, minimum 18 dB/octave slope) inside the central matrix controller. This protects the array drivers from sub-audible mechanical stress and optimizes vocal projection frequencies.
Service and Configuration Availability
The procurement of all HA-1010-AM QU system variants, heavy-duty outdoor mounting hardware, on-site environment spatial deployment, physical installation, and precise signal matrix configuration are available exclusively through SKYRS in Pakistan. Third-party wiring modifications, independent bracket alterations, or unverified tap adjustments will instantly void the local five-year commercial replacement warranty. To schedule professional EASE acoustic long-range simulations, request site audits, or book commissioning field engineers, contact the SKYRS Pakistan system engineering office.
