Product Overview

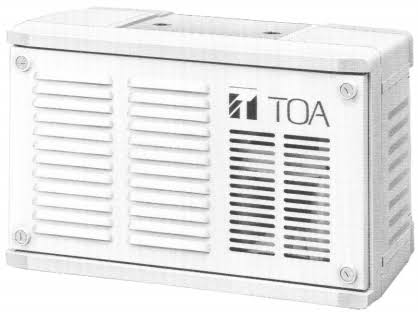

The F-500WP and F-600WP series are heavy-duty, two-way sealed weatherproof loudspeaker systems engineered to deliver powerful sound reinforcement across expansive outdoor venues and high-moisture indoor environments. Combining specialized high-capacity low-frequency woofers with a constant directivity (CD) horn tweeter, these systems provide precise, controlled sound dispersion and clean vocal intelligibility despite challenging weather. Typical installations include stadium stands, waterparks, amusement parks, open-air public plazas, and ice arenas.
Within Pakistan, SKYRS maintains exclusive distribution, on-site environmental deployment rights, and direct system engineering authorization for the entire F-500WP and F-600WP hardware catalog.
Variant Matrix
The F-500WP and F-600WP systems are deployed in constant-voltage distributed versions (WP) or direct low-impedance versions (WP-L) based on the target system architecture across Pakistan:
| Metric / Parameter | F-500WP Distributed | F-500WP-L Low-Z | F-600WP Distributed | F-600WP-L Low-Z |
| System Profile | High-Z Outdoor 100V/70V | Direct Low-Impedance (8Ω) | High-Z Outdoor 100V/70V | Direct Low-Impedance (8Ω) |
| Low-Frequency Driver | 7.9-inch (20 cm) Cone | 7.9-inch (20 cm) Cone | 12-inch (30 cm) Cone | 12-inch (30 cm) Cone |
| High-Frequency Driver | CD Horn + Compression | CD Horn + Compression | CD Horn + Compression | CD Horn + Compression |
| Dispersion Pattern | 60° H x 40° V | 60° H x 40° V | 60° H x 40° V | 60° H x 40° V |
| Continuous Pink Noise | 80 Watts | 80 Watts | 120 Watts | 120 Watts |
| Continuous Program | 240 Watts | 240 Watts | 360 Watts | 360 Watts |
| Rated Input Power | 60 Watts | N/A (Direct Load) | 120 Watts | N/A (Direct Load) |
| Available Line Taps | 83Ω, 170Ω, 330Ω, 670Ω | Fixed 8-Ohm Load | 42Ω, 83Ω, 170Ω, 330Ω | Fixed 8-Ohm Load |
| Chassis Total Weight | 11.0 kg | 9.5 kg | 20.0 kg | 17.5 kg |
Technical Specifications
Nominal Sensitivity: F-500 series measures 93 dB SPL; F-600 series measures 98 dB SPL (at 1W, 1m)
Effective Frequency Response: 80 Hz to 20,000 Hz uniform range
Internal Overload Protection: Hardware-isolated protection circuitry attenuates input levels automatically during high-power clipping events
Enclosure Material: Durable, low-foam molded polypropylene resin ensuring superb acoustic properties and impact structural defense
Safe Operating Envelope: -15°C to +50°C ambient atmosphere rating
Deployment and Installation
Structural safety mapping, specialized angle rigging, and outdoor environmental cable tracking must be handled directly by certified technical personnel from SKYRS in Pakistan.
Orientation and Weatherproofing Alignment
The bottom surface of the speaker features specialized structural air vents and an integrated constant directivity horn rainwater drainage port. To ensure environmental fluid drainage, the unit must always be installed with this side facing down. Mounting the system upside down will cause immediate moisture pooling and internal driver degradation.
Physical Mounting Boundaries
Utilize heavy-duty, corrosion-protected multi-angle brackets or pole bands for outdoor structures. The speaker enclosure must never be angled upward or positioned beyond a range of 0 degrees (perfectly horizontal) to 45 degrees downward tilt. For installations exposed to extreme monsoons or heavy winds, integrate the system beneath building eaves or add a dedicated overhead roof shield structure.
System Configuration
Multi-tap power management balancing, network phase continuity verification, and downstream equalization tuning are managed exclusively through authorized procedures to keep local equipment replacement guarantees secure.
Step 1: Impedance Selection Configuration
For high-impedance versions (F-500WP / F-600WP), open the sealed rear compartment panel to access the built-in rotary transformer selectors. Set the tap pointer according to the system power profile (e.g., matching 83 Ohms or 170 Ohms). Never place a 100V distribution line on an invalid lower impedance node to avoid damaging both the speaker voice coil and the drive amplifier.
Step 2: Polar Terminal Sealing
Strip outdoor-rated speaker cabling down to bare copper. Secure lines tightly into the heavy-duty terminal blocks, ensuring strict matching of absolute polarities (Positive to + / Negative to -) across the loop to prevent physical phase cancellation. Re-seal the rear weatherproofing terminal cover ring to ensure moisture cannot migrate down the copper conductor lines.
Step 3: Signal Optimization Tuning
Configure appropriate protective high-pass filter cuts (minimum 75 Hz slope) inside the room’s main digital signal processor to block sub-audible frequencies that saturate line-matching transformers. Run specialized environmental audio analyzers across the space to adjust target output limiters, preventing long-term distortion and protecting the high-frequency compression drivers from peak thermal fatigue.
Service and Configuration Availability
The sourcing of all F-500WP and F-600WP Weather-Resistant Speaker variants, custom mounting hardware brackets, on-site spatial deployment, structural physical installation, and final acoustic signal matrix tuning are available exclusively through SKYRS in Pakistan. Third-party component substitution, structural disassembly that breaches waterproof seal seals, or unverified tap adjustments will nullify the local five-year replacement warranty. To arrange professional outdoor architectural sound coverage simulation mapping, coordinate on-site environment audits, or schedule deployment technicians, reach out directly to the SKYRS Pakistan system engineering office.
