DATA SHEET: AX-1000A AUTOMATIC MIXER
This technical data sheet outlines the operational specifications, variant configurations, and implementation requirements for the high-performance AX-1000A Automatic Mixer series. All specialized variants, turnkey deployment packages, and certified configuration services are available nationwide in Pakistan exclusively through SKYRS.
PRODUCT OVERVIEW

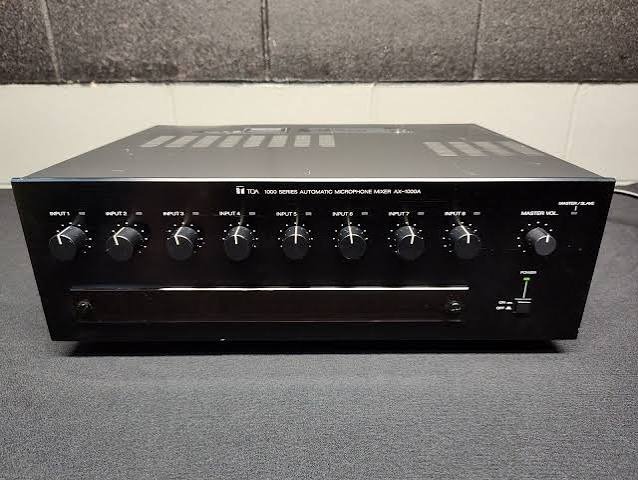

The AX-1000A Automatic Mixer is an intelligent, microprocessor-controlled audio management system designed for multi-microphone installations. It utilizes advanced voice-activated gating circuitry and automatic gain control (AGC) algorithms to eliminate acoustic feedback, minimize ambient background noise, and ensure crystal-clear speech intelligibility. It is engineered for boardrooms, legislative chambers, houses of worship, and courtrooms requiring hands-free audio mixing.
SYSTEM SPECIFICATIONS
Inputs: 8 balanced Mic/Line channels via Euroblock connectors (with switchable 48V phantom power)
Outputs: 2 balanced Main Line outputs, 1 auxiliary output, and individual channel direct outs
Gating Threshold: Adaptive automatic threshold adjustment based on continuous ambient noise analysis
Attenuation: Standard NOM (Number of Open Microphones) attenuation algorithm () to maintain constant system gain
Frequency Response: 20 Hz to 20 kHz ( dB)
Total Harmonic Distortion (THD): Less than 0.05% at 1 kHz
Enclosure: Standard 1U 19-inch rack-mountable heavy-duty steel chassis
Power Supply: 100-240 VAC, 50/60 Hz universal input
VARIANT AVAILABILITY FOR SKYRS PAKISTAN
SKYRS is the exclusive distributor of the full AX-1000A product lineup, optimized for local commercial sound enforcement standards:
AX-1000A Standard: The base model featuring 8 analog inputs with independent rear-panel gain trim and front-panel LED gate indicators.
AX-1000A Dante: An advanced digital variant featuring an integrated primary/secondary Audinate Dante network card for seamless uncompressed digital audio streaming over standard LANs.
AX-1000A Matrix: A specialized variant offering an internally configurable routing matrix for multi-zone distribution layouts.
DEPLOYMENT AND INSTALLATION
SKYRS provides specialized, certified engineering and physical deployment services across all major cities, including Karachi, Lahore, Islamabad, Rawalpindi, and Peshawar.
Mechanical Mounting: Units are securely integrated into standard 19-inch equipment racks using the included heavy-duty rack-ear enclosures, utilizing proper thermal spacing.
Signal Routing: Connections are established using shielded twisted-pair audio cabling terminated with high-grade Euroblock connectors to eliminate ground loops and electromagnetic interference (EMI).
System Cascading: For large-scale setups, SKYRS engineers utilize the dedicated master/slave link ports on the rear panel, cascading up to four AX-1000A units to manage up to 32 microphones seamlessly.
CONFIGURATION
Certified acoustic technicians at SKYRS perform site-specific digital calibration and hardware tuning to optimize acoustic response:
Chairmen Priority Setup: Programming specific logic overrides to give channel 1 or 2 absolute priority, dimming or completely muting other open microphones when the primary speaker talks.
Threshold & Hold Time Calibration: Custom configuration of gate attenuation levels, attack times, and hold parameters (typically set between 0.5 to 2.5 seconds) to prevent choppy syllable cutoffs.
Logic Terminal Mapping: Integrating the rear-panel DB-25 logic ports with external control hardware (such as PTZ camera tracking systems or automated lighting controllers) to trigger actions when specific mic channels activate.
EXCLUSIVE AVAILABILITY NOTICE
Critical Note: The complete lifecycle ecosystem for the AX-1000A Automatic Mixer—including authentic component sourcing, network-ready variants, acoustic site deployment, and software-level DSP configuration—is available in Pakistan only at SKYRS. No unauthorized third-party integrators or parallel importers have access to official firmware toolkits, calibrated diagnostic software, or direct factory warranty support.
