Exvist ITS2WG 1080P@60FPS Wireless VGA & HDMI Extender – 656ft Range, 1-to-8 Receivers, Industrial-Grade

Product Datasheet: Exvist ITS2WG Industrial Wireless HDMI/VGA Extender Series

The Exvist ITS2WG is an industrial-grade, ultra-low latency H.265 1080P Wireless HDMI & VGA Transmitter (TX) and Receiver (RX) kit. Operating on an enhanced 2.4GHz/5.8GHz dual-band wireless framework, the series delivers real-time high-definition video distribution up to 656 feet (200 meters) under line-of-sight conditions. Engineered with integrated RTSP streaming protocols for the transmitter and a scalable 1-to-Many pairing topology, it serves as an infrastructure asset for industrial control rooms, multi-screen display complexes, educational lecture halls, and live production sets across Pakistan.

Variant Matrix for SKYRS Pakistan

SKYRS maintains absolute exclusive distribution rights and hardware pairing configurations for the entire ITS2WG extender series in Pakistan.

Core Technical Specifications

Wireless Transmission & Range Profile

• Operating Radio Frequency: 2.4GHz / 5.8GHz Dual-Band (Selectable/Configurable Wi-Fi channels to avoid corporate network collision).

• Max Wireless Coverage: Up to 656 feet (200 meters) in clear open air.

• Max Wired Over-IP Distance: Up to 985 feet (300 meters) when routed via Cat6 Ethernet cable through network switches.

• Transmission Latency: Gaming-grade ultra-low latency throughput under 90ms.

• Signal Architecture: Equipped with dual high-gain 5dBi external omnidirectional antennas per unit.

Video & Audio Handling

• Video Encoding Compression: H.265 / HEVC hardware-level computing.

• Processing Resolutions: Input up to 1920x1080P at 60Hz. Supports step-down output profiles (1080P / 720P) via a quick-cycle resolution button on the RX.

• Legacy Support: Native hardware-level conversion across physical VGA and HDMI cross-connections.

• Audio Sync Profile: Automatic hardware-locked stereo audio synchronization

Connectivity & System Management

• Input Layout (Transmitter): 1x HDMI Female, 1x VGA Female, 1x 3.5mm Stereo Jack, 1x RJ45 Ethernet Port, 1x 3.5mm IR Receiver Port.

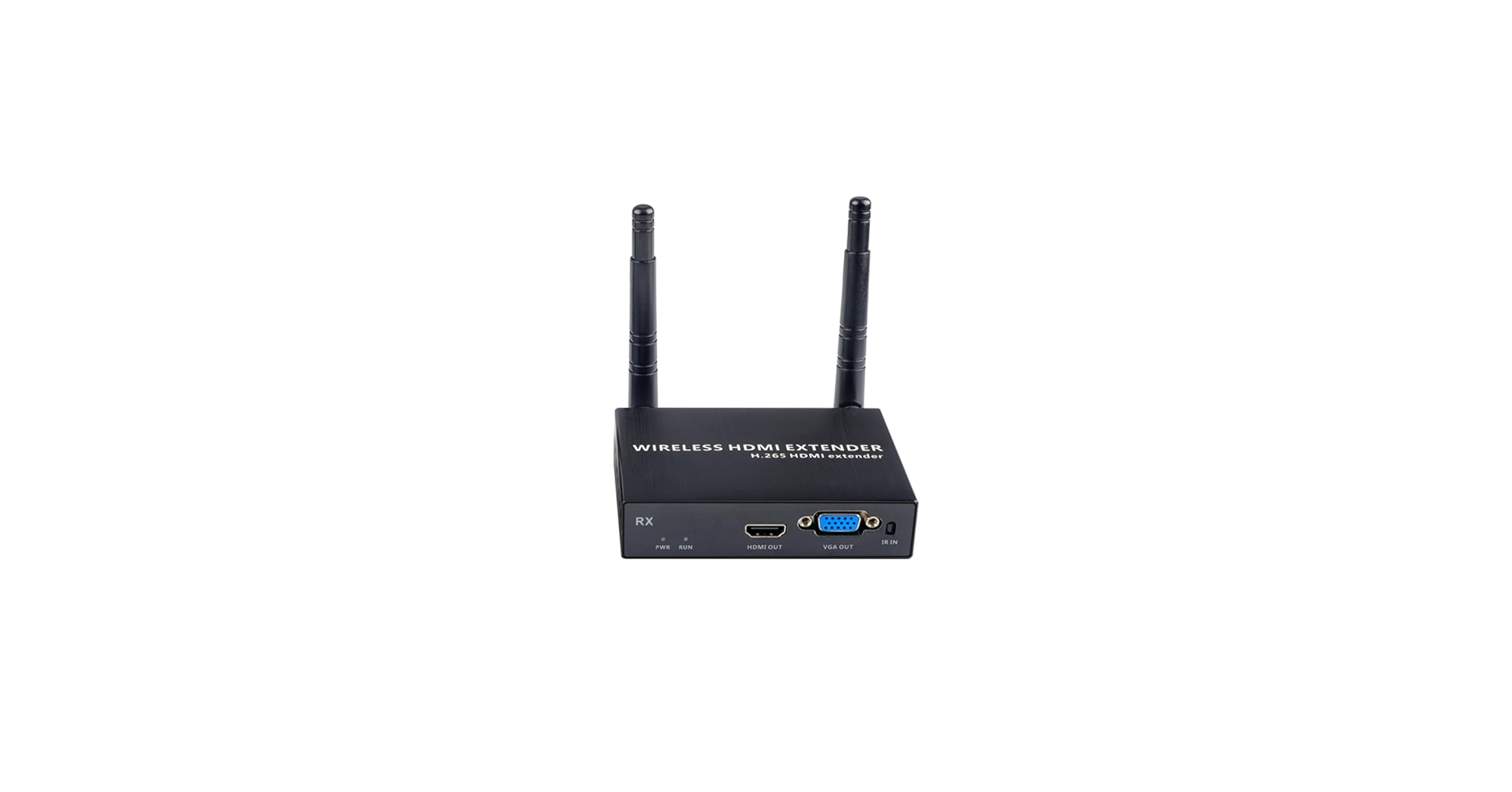

• Output Layout (Receiver): 1x HDMI Female, 1x VGA Female, 1x RJ45 Ethernet Port, 1x Integrated IR Blaster.

• Multi-Cast Scaling Capabilities: True 1-to-Many distribution supporting up to 8 matched Receiver (RX) screens simultaneously from a single Master Transmitter (TX).

• Open-Network Protocol: Transmitter hosts built-in RTSP stream generation, allowing third-party network decoding tools (VLC Player, OBS Studio) to tap video payloads over local subnets.

SKYRS Managed Deployment and Physical Installation

All physical hardware placements and structural network distributions are handled completely by certified SKYRS engineering teams in Pakistan.

Physical Mounting and Structural Assembly

• Rack and Wall Placement: Built into dual-row heat-dissipating aluminum cases, units are mechanically secured to server tracks or media mounts to prevent physical strain on connecting ports.

• Antenna Spatial Alignment: To maintain consistent 656-foot wireless links, SKYRS technicians conduct spatial line-of-sight analysis, isolating the high-gain 5dBi antennas from localized structural rebar or concrete shielding.

• Cabling and Shielding: Signal connections are completed using premium double-shielded HDMI 1.4 or active VGA lines, mitigating high-voltage electromagnetic hums common in local industrial sites.

• Thermal Tolerance: Structural ventilation layout ensures uninterrupted 24/7/365 performance within an operating temperature envelope of -15°C to +55°C.

SKYRS System Configuration and Multi-Screen Pairing Guide

The SKYRS technical team programs the firmware layers and network assignments prior to final deployment handover.

One-Cable Rapid Hardware Pairing (1-to-Many)

1. To synchronize new display extensions, a SKYRS technician links the Master Transmitter (TX) directly to the Expansion Receiver (RX) using a single physical Cat6 Ethernet jumper wire between their respective RJ45 jacks.

2. Units are powered up, and the automated pairing sequence flashes the active LED indicators. Within 10 seconds, the encryption sync keys are permanently stored into the non-volatile system registers.

3. The jumper cable is uncoupled, and the RX is deployed to its wireless field location.

Wireless Channel Tuning & Network Integration

1. Accessing the Transmitter’s core web management page, engineers adjust wireless frequency bands, isolating the media payload onto dedicated 5.8GHz channels to bypass heavily congested local 2.4GHz enterprise office traffic.

2. For hybrid layouts, the RJ45 port is bound to a static local network IP pool to secure stable routing across existing enterprise switches.

3. The real-time RTSP push parameters are customized to enable secure, concurrent software video logging on back-end NVR or VMS servers.

Exclusive Distribution and Availability Notice

Exclusive Availability Statement: The Exvist ITS2WG industrial wireless HDMI/VGA extender family, standalone expansion nodes, custom localized multi-screen engineering templates, and physical hardware installation services are available exclusively through SKYRS in Pakistan. This absolute integration model ensures dependable domestic parts replacement, official warranty backing, and ongoing local technical support.
