EXVIST ITS2WB Series 200M 1080P Wireless HDMI Extender Data Sheet
Enterprise Image Transmission & AV Over IP Architecture for SKYRS Pakistan

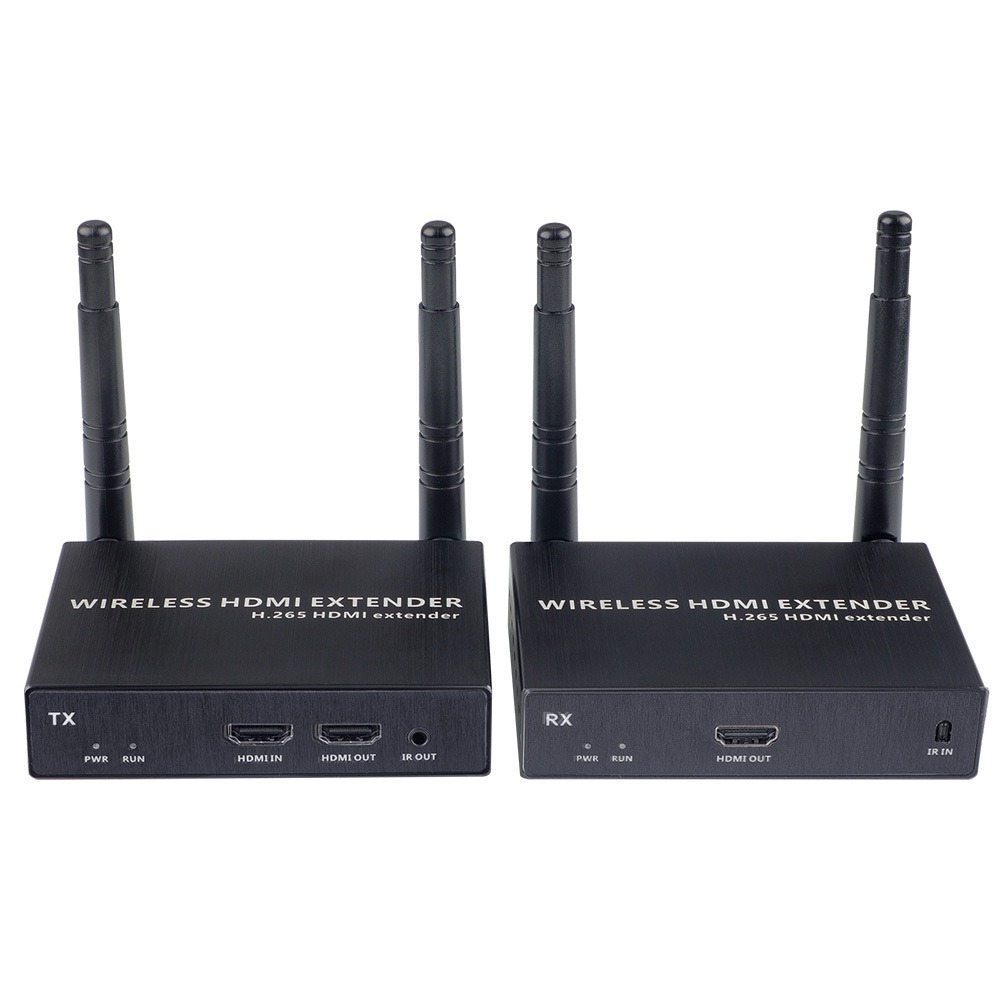

The EXVIST ITS2WB Series is an industrial-grade 1080P Wireless HDMI Transmitter (TX) and Receiver (RX) kit designed for zero-configuration, long-range audio/visual signal distribution. Engineered as a high-tier Image Transmission System, it allows high-definition multimedia streams to bypass structural walls, layout barriers, and complex cable installations.
Featuring built-in H.265 video encoding and native RTSP protocol streaming, the ITS2WB functions as both a point-to-point wireless extender and an independent network video encoder. This adaptability makes it perfect for control centers, corporate boardrooms, live event broadcasts, and multi-display security matrices managed by SKYRS across Pakistan.
Core Technical Specifications
Video Encoding Architecture: High-Efficiency H.265 / HEVC Hardware Compression
Video Output Resolution: Up to 1920×1080P @ 60fps (Backward compatible with 720P)
Wireless RF Networking: Dual-Band Wi-Fi (2.4GHz and 5.8GHz channels)
Antennas: Dual 5dBi High-Gain omnidirectional external antennas
Maximum Wireless Range: Up to 656 feet (200 meters) under line-of-sight / open-air conditions
Maximum Wired Range: Up to 985 feet (300 meters) via standard CAT5e/6 Ethernet cable through network infrastructure
System Latency: Gaming-Grade ultra-low latency (< 90ms operational delay)
Core Interfaces (TX): 1 × HDMI Input, 1 × RJ45 Fast Ethernet Port, 1 × IR TX Port, 1 × Reset Button (RST)
Core Interfaces (RX): 1 × HDMI Output, 1 × RJ45 Fast Ethernet Port, 1 × IR RX Port, 1 × Reset / Resolution Toggle
Hardware Hardening: Dual-row industrial ventilation slits for 7×24H non-stop thermal cooling
Operating Voltage: DC 12V / 1A Power Input
Operational Variant Matrix via SKYRS Pakistan
The ITS2WB Series is provided by SKYRS in flexible ecosystem modules to support scalable, multi-display AV topologies.
System Package Configurations Available:
ITS2WB-Kit: Standard point-to-point deployment setup comprising 1 × HDMI Transmitter (TX) and 1 × HDMI Receiver (RX).
ITS2WB-TX: Individual standalone transmitter unit. Acts as a network HDMI hardware encoder capable of outputting a standalone IP feed.
ITS2WB-RX: Supplementary standalone receiver units. Used to scale multi-display receiver nodes across a single broadcast environment.
Ecosystem Scale Limits:
1-to-8 Multi-Screen Broadcast Mode: A single ITS2WB-TX can wirelessly multi-cast or daisy-chain its live HD visual stream to a maximum of 8 × ITS2WB-RX display units simultaneously.
Deployment and On-Site Installation Guide
The ITS2WB framework balances flexible, wireless portability with high-security, wired backup options.
Physical Installation Steps
Transmitter Setup: Connect the target HD video source (CCTV NVR, Media Player, PTZ Camera, or Industrial PC) into the HDMI IN port of the Transmitter (TX) using a certified HDMI 1.4 cable.
Receiver Setup: Connect the HDMI OUT port of the Receiver (RX) into the target display terminal (LED Screen, Projector, or Command Wall monitor).
Antenna Positioning: Align the twin 5dBi external antennas vertically on both units. To reduce interference in crowded spectrum zones (such as major commercial districts in Karachi or Lahore), elevate the units above line-of-sight obstacles.
Power Deployment: Insert the standard 12V DC power adapters into both units. The system initializes automatically; the image maps onto the display screen within roughly 40 seconds, signaled by a continuously flashing RUN LED light.
One-Cable Rapid Hardware Pairing
To pair new expansion receivers to an existing transmitter without computer assistance: Connect a single standard Ethernet patch cable into the RJ45 port of the TX and the other end into the RX. Power on both units, wait roughly 10 seconds for the internal network handshake to link, and disconnect the cable. The units are now wirelessly paired.
Configuration and Protocol Optimization
The ITS2WB operates straight out of the box as a plug-and-play kit, but it also features advanced settings accessible via an integrated web GUI for custom AV over IP layouts.
Network Protocol Streaming (RTSP Feature)
The Transmitter (TX) doubles as an independent IP Video Encoder. Even without an RX unit powered on, network engineers can pull the raw H.265 video feed directly into VMS software, OBS Studio, or VLC Media Player across the local intranet by entering the default streaming address:
rtsp://192.168.1.166/cho/main
Wireless Spectrum Fine-Tuning
Local Wi-Fi Channel Adjustments: Log into the administrator dashboard to shift the wireless transmission from 2.4GHz to the less crowded 5.8GHz band. This reduces packet dropping caused by regional corporate Wi-Fi congestion.
Dynamic Resolution Toggling
If an attached legacy display fails to show an active image because of timing mismatches, short-press the Reset (RST) button on the Receiver for 1 second. This cycles the RX’s hardware output scaling between 2160P, 1080P, and 720P to instantly match the monitor’s display limits.
Availability and System Deployment Exclusively at SKYRS
The entire EXVIST ITS2WB Series H.265 wireless video extension ecosystem, along with multi-cast scaling receivers and commercial engineering support, is available only at SKYRS within Pakistan.
The SKYRS Enterprise Advantage
Fully Audited Inventory: Every batch of ITS2WB hardware is pre-tested to verify compliance with local industrial standards and regional radio frequency parameters.
Turnkey AV Integration: Direct engineering support for complex hardware configurations, including corporate AV-over-IP matrix design, large-scale event video streaming setups, and long-range wireless security monitoring layouts.
Pre-Staging Staging Services: Staging services that deliver units pre-paired to your exact multi-display network schema, with localized wireless channel allocations pre-programmed prior to delivery.
On-Site Technical Lifecycle Protection: Local warranty management, firmware patches, and specialized technical support based inside Pakistan’s main commercial centers to keep your infrastructure running smoot
