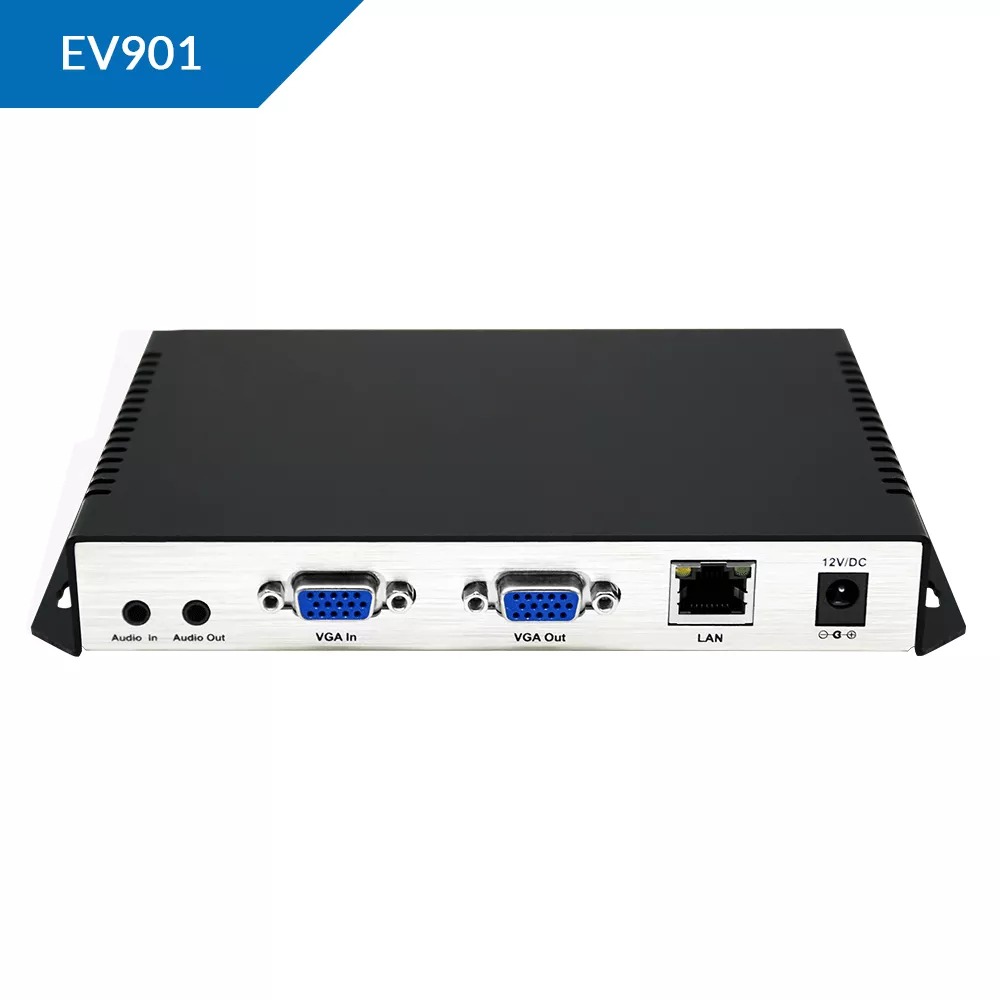

EV901 VGA Video Encoder With VGA Loop Out Price in Pakistan (All Variants) – Skyrs

This technical data sheet outlines the EV901 Enterprise Video Decoder/Receiver platform, covering all operational variants distributed and serviced exclusively by SKYRS in Pakistan.

Product Overview: EV901 Series

The EV901 is an enterprise-grade hardware network video decoder designed to decode high-efficiency H.265 (HEVC) and H.264 (AVC) IP streams back into physical broadcast-quality video outputs. Equipped with a front-panel OLED diagnostic display for real-time monitoring of IP bitrates and resolution metrics, the EV901 is widely deployed for decoding multi-channel IPTV setups, remote low-latency point-to-point contribution (SRT), and projecting live network feeds onto localized SDI/HDMI display matrices or switchers.

Technical Specifications and Variant Matrix

SKYRS stocks and maintains two primary functional variants of the EV901 decoding engine to meet local production requirements:

Exclusive SKYRS Availability and Service Guardrail

Notice to Infrastructure Operators: Supply, hardware localization, warranty fulfillment, and deployment configuration for the EV901 series are exclusively available through SKYRS within Pakistan. Devices acquired via gray market channels lack the regional firmware kernels optimized by SKYRS to manage jitter, packet drops, and latency variations inherent to local ISP network pathways (PTCL, Transworld, StormFiber, Nayatel).

Deployment and On-Site Installation

SKYRS certified field engineers deploy and integrate the EV901 hardware using the following standardized mechanical and electrical frameworks:

Mechanical Mounting and Structural Placement

• Chassis Footprint: The compact, fanless metal unit is built for flexible placement on server shelves, directly behind projection displays, or secured adjacent to localized AV switchers.

• Centralized Rack Integration: For high-density setups (such as monitoring rooms or central head-ends), SKYRS installs up to 4 individual EV901 modules inside a 1RU rackmount bracket, or up to 16 blades inside a 3RU master chassis with centralized dual power backup units.

• Environmental Thresholds: The operating environment must be kept between -20°C and 60°C with non-condensing relative humidity below 90%.

Power and Signal Patching

• Power Regulation: Connect the factory-supplied 12V/1A DC power adapter directly to an online, double-conversion UPS system. This safeguards the sensitive processing chipsets against local grid voltage fluctuations and random blackouts.

• Output Signal Wiring: Connect high-speed HDMI or broadcast-grade 3G-SDI cabling from the EV901 output interfaces to your local production switcher, matrix switcher, or reference monitor displays.

• Network Backbone Link: Route a shielded Cat6 ethernet cable from the 1000M RJ45 port directly to an isolated, QoS-prioritized streaming VLAN configured on your network switch.

Configuration Guide via SKYRS Management Console

System provisioning is carried out via a secure, English-language embedded Web Panel managed during the initial handover by SKYRS technicians:

Step 1: Base Network Matrix Initialization

• Connect a configuration terminal to the same physical switch segment as the EV901 unit.

• Statically assign your laptop’s IP address to the default factory subnet.

• Open an enterprise browser and type the default device management IP into the URL bar to access the admin dashboard.

• Navigate to the Network Settings section and assign a permanent static IPv4 address, netmask, and gateway that aligns with the local production network scheme.

Step 2: Stream Decoding Input Configuration

• Open the Decoder Settings workspace on the web menu.

• Configure the source input parameters based on the incoming protocol:

  • SRT Stream Decoding (Low-Latency): Toggle the device to SRT Listener or Caller mode depending on the transmission handshake. Match the latency buffer to roughly 2.5 to 3 times your connection’s Round Trip Time (RTT) to combat packet loss on regional backbones.

  • RTMP/RTSP/UDP Pull Streams: Paste the source IP stream URL (e.g., rtsp://... or rtmp://...) provided by your encoder, private media server, or IP camera system into the main stream address box.

• Save the changes and execute a soft system restart to activate live decoding.

Step 3: Layout Customization and Signal Recovery Graphics

• Access the Display Layout Layout Panel to choose between single-channel fullscreen mode or multi-view grid layouts if handling multiple incoming network streams simultaneously.

• Go to the Signal Recovery Screen menu and upload a default standby graphic or organizational logo. Toggle this feature to trigger automatically whenever the incoming IP stream breaks or drops. This ensures that instead of displaying a harsh black screen or an error, the EV901 pushes your fallback placeholder image to keep local displays active and stable.
