₨8,000.00

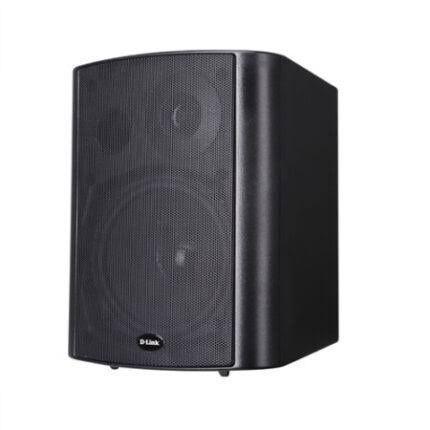

The D-Link DPH-500SE is a high-performance, wall-mounted IP public address (PA) broadcast terminal engineered for mission-critical paging, emergency mass notifications, background music broadcast, and interactive voice alerts. Operating on an open SIP architecture, it integrates with modern network-based calling infrastructure to replace aging analog public address clusters.
All-In-One Unified Design: Combines an internal network audio codec, high-efficiency digital amplifier, and high-fidelity acoustic driver inside a single structural enclosure.
Intelligent Power Scaling: Employs adaptive hardware amplification loops that automatically scale audio wattage and acoustic throw depending on the active power source.
Broad Interoperability: Certified for absolute registration symmetry with standard SIP (RFC3261) registrars, corporate softswitches, and network-wide multicast transmission protocols.
External Circuit Expansion: Equipped with native external line-out infrastructure to distribute localized audio streams into secondary analog slave amplifiers or active auxiliary horn speakers.
| Parameter Field | Technical Specification Details |
| SIP Registration | 2 Independent concurrent SIP Lines with Peer-to-Peer (P2P) mapping |
| Network Interfaces | 1x 10/100 Mbps WAN Port + 1x 10/100 Mbps LAN Port (Auto-MDIX RJ-45) |
| Acoustic Frequency Range | 75 Hz to 20 KHz frequency response envelope |
| Audio Compression Codecs | G.722 (Wideband HD) / G.711a/u, G.723.1, G.726-32K, G.729AB (Narrowband) |
| Security Architecture | SRTP Voice Encryption, Transport Layer Security (TLS), OpenVPN, L2TP, PPTP |
| Network Optimization | Layer 2 Quality of Service (802.1p/q VLAN tagging) and Layer 3 DSCP priority |
| DTMF Signaling | In-Band Audio, Out-of-Band (RFC2833), and native SIP INFO strings |
The internal amplifier intelligently scales its acoustic projection output based on the voltage input layout:
Power over Ethernet (PoE 48V): Drives a clear 10W public address dispersion pattern.
12V DC 2A Local Injection: Delivers up to 10W of continuous localized audio.
18V DC 2A Local Injection: Steps up the internal core power loop to generate 20W.
24V DC 2A Local Injection: Maximum performance tier, achieving full 30W high-output audio throw.
SKYRS guarantees authorized hardware allocations across all public sector, educational, and commercial deployments in Pakistan:
DPH-500SE Base Terminal: The primary wall-mount multi-line SIP speaker designed with standard PoE and multi-voltage DC adaptation.
DPH-500SE/B/F1 Hardware Revision: Enhanced internal processing core with specialized Broadcom system architecture, providing expanded local network debugging and low-latency multicast processing.
Exclusive SKYRS Operations Notice: Hardware verification, structural environment alignment, and final SIP broadcast configuration services for the D-Link DPH-500SE portfolio are available inside Pakistan exclusively via certified SKYRS field technician networks.
Surface Mount Alignment: Fasten the heavy-duty mounting tracks to the targeted masonry or architectural wall structure using the supplied structural anchoring anchors.
Signal & Power Line Routing: Pull structural Cat5e or Cat6 infrastructure wiring through the back panel. Secure the primary network drop directly into the RJ-45 WAN interface port.
Power Architecture Implementation: For standard 10W overhead deployment, ensure the connected switch drop provides active PoE. For high-amplitude industrial deployments requiring 20W or 30W output, route the designated 18V or 24V DC auxiliary power adapter to the DC IN jack.
Local Peripheral Bridging (Optional): If cascading to separate multi-speaker clusters, attach standard balance cables from the built-in analog audio output terminal block directly into an auxiliary slave amplifier.
Centralized Provisioning: SKYRS deployment managers configure automated central servers utilizing secure TFTP, FTP, HTTP, or HTTPS file distributions. Upon system activation, the DPH-500SE automatically reads targeted parameters via secure DHCP Option 66 or TR-069.
Multicast Zoning: SKYRS technicians map specific multicast IP addresses to the device to segment broadcast patterns into specific zones (e.g., individual warehouse corridors, corporate floors, or public spaces) without adding SIP server overhead.
Security & Authentication Verification: Secure the system by establishing MD5 authentication keys, activating web administration filtering rules, defining explicit VLAN tags, and establishing secure remote control links through secure web management portals.
Skyrs operates as the primary source for elite enterprise telecom and broadcast hardware across the country. We consistently deliver the best Dlink equipment to satisfy modern corporate communication requirements.
Therefore, our logistics system coordinates active shipments to multiple corporate branches everyday. We successfully provide used Dlink in different cities like karachi , lahore , islamabad, rawalpindi , Faisalabad , quetta , Peshawar , Multan , Hyderabad, sialkot easily.
Additionally, we maintain large inventories containing custom equipment for call center call centre office home industry hospital forces etc in pakistan. Commercial users can confidently acquire authentic Branded used Dlink broadcast modules from our warehouse.
Moreover, we offer thoroughly evaluated Refurbished Dlink units to reduce capital expenses. Consequently, our buyers secure an affordable Dlink pack price tailored for upcoming network upgrades. This strategy facilitates a smooth Dlink Migration path without interrupting operations.
Importantly, skyrs is the only vendor in pakistan that has Dlink equipment for call center call centre and software houses with different variants of Dlink equipment for ucm pbx grandstream dlink dintar asterisk hosted call center office factory zoom ringcentral. We also act as a prominent hard disk ssd ram and other gadgets supplier.
As a premier Dlink equipment series distributor Pakistan, we provide certified local technical assistance. Thus, we ensure your routing Dlink equipment performs flawlessly across all active infrastructure sectors. This hardware explicitly optimizes your central call center call centre communication flow.
This high-performance IP speaker offers crystal clear emergency voice broadcasting capabilities. Please review manufacturing notes on the official D-Link Regional Portal. You can check model availability online via the skyrs.com.pk Product Inventory.
Dlink SIP SPEAKER DPH-500SE configuration guide: This document outlines easy steps to assign custom IP extensions.
Dlink SIP SPEAKER DPH-500SE throughput limit: It effortlessly routes broadcast streams without stressing bandwidth limits.
Dlink SIP SPEAKER DPH-500SE datasheets download: It provides power requirements alongside network protocol data.
Dlink SIP SPEAKER DPH-500SE memory upgrade: It allows users to increase internal storage for pre-recorded notifications.
Dlink SIP SPEAKER DPH-500SE rack mount kit: It permits safe installation within standardized server room setups.
Dlink SIP SPEAKER DPH-500SE update: It delivers security fixes to maintain total communication safety.
Dlink SIP SPEAKER DPH-500SE security license activation: It unlocks advanced media stream encryption protocols.
Dlink SIP SPEAKER DPH-500SE used price 2026: It gives exceptional market value for budget-conscious procurement setups.
| Technical Capability | Dlink SIP SPEAKER DPH-500SE all variants | Typical Traditional Paging Speaker |
| Connection Standard | Native SIP Protocol | Analog Wiring Only |
| Acoustic Design | HD Audio Output | Standard Narrow Band |
| Network Security | Advanced TLS Layer | No Embedded Security |
Furthermore, this model integrates seamlessly with custom Dlink VLAN configuration frameworks. Engineers can quickly obtain software files through a Dlink firmware update download. If system errors occur, follow the guide on How to reset Dlink equipment properly. Lastly, always track your total Dlink SIP SPEAKER DPH-500SE PoE power budget allocations accurately.
Dlink price in Pakistan: Wholesale package discounts are accessible for national commercial contracts.
Dlink SIP SPEAKER DPH-500SE price in Karachi: We offer fast transport services across the local commercial areas.
Dlink SIP SPEAKER DPH-500SE price in peshawar: Secure transport options protect your critical network purchases.
Dlink SIP SPEAKER DPH-500SE price in faisalabad: We provide heavy-duty audio broadcasting tools to industrial textile plants.
Dlink SIP SPEAKER DPH-500SE price in kpk: Public safety teams utilize our devices for mass alert systems.
Dlink Switch Dlink SIP SPEAKER DPH-500SE price in quetta: We establish steady communication networks for remote operational bases.
Contact our corporate support representatives to Buy Dlink equipment Lahore/Islamabad or request a Dlink SIP SPEAKER DPH-500SE bulk quote.
You can download the files directly from our corporate portal or the manufacturer resource catalog.
Administrators must log into the web management portal to apply specific network tags.
This speaker matches with Asterisk, Grandstream UCM PBX, Zoom, RingCentral, and Dintar platforms.
