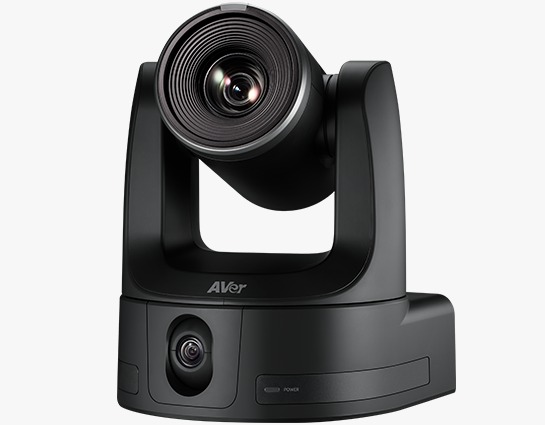

The AVer TR535 is an enterprise-grade 4K dual-lens Pro-AV tracking camera engineered for high-impact video conferencing, elite live streaming, academic lecturing, and corporate presentations. By merging an ultra-powerful 30X optical zoom telephoto PTZ lens with a fixed panoramic wide-angle module, the TR535 delivers seamless, operator-free tracking alongside picture-in-picture visualization across modern enterprise infrastructures
Dual-Lens Imaging Matrix: Features a primary 1/2.8-inch 4K Sony Exmor CMOS sensor on the PTZ module alongside a secondary 1/2.8-inch 4K Sony Low Lux CMOS panoramic sensor housed in the static base.
Extreme Zoom Architecture: Equipped with a 30X optical zoom lens (paired with 12X digital zoom for 360X total magnification) to capture crystal-clear details across vast venues ($\text{HFOV}: 62.3^\circ \text{ to } 2.5^\circ$).
Panoramic Baseline Lens: The auxiliary secondary wide-angle lens operates with a fixed $113^\circ$ diagonal field of view ($\text{HFOV}: 105^\circ$) to provide unbroken situational awareness across the entire presentation floor.
Comprehensive Video Output: Streams native 4K Ultra HD video at up to 60 frames per second concurrently over dual HDMI, USB 3.2 Gen 1, and IP streaming interfaces. Supports up to 1080p at 60fps via the 3G-SDI broadcast interface.
Flexible Streaming Architecture: Native support for local network streaming configurations using SRT, RTSP, RTMP, RTMPS, HTTP, HTTPS, and H.264/H.265 compression protocols.
Simplified Single-Cable Topology: Built-in support for the high-capacity PoE++ standard (802.3bt), grouping control parameters, uncompressed 4K video streams, and DC operating power into one Cat6A connection
The TR535 utilizes its dual-lens infrastructure to eliminate tracking dropouts. While the fixed wide-angle lens monitors the spatial geography of the entire room, it passes real-time coordinate data to the primary 4K PTZ tracking assembly:
Presenter Mode: Latches onto a primary presenter with full-body or half-body framing options. Integrates custom Shield Zones to mask out moving peripheral objects or high-traffic background regions.
Zone Mode: Automatically transitions perspective to targeted pre-defined physical zones (such as dynamic digital displays, podiums, or whiteboards) when the presenter enters them.
Segment Mode: Divides large horizontal stages into up to four distinct graphical segments, prioritizing content zones as the speaker navigates through them.
Hybrid Mode: Intelligently switches back and forth between Presenter Tracking and Zone Tracking behaviors on the fly based on human physical trajectories and gestures.
Voice Tracking Ready: Integrates with leading professional microphone systems via AVer PTZ Link software to allow the camera to jump smoothly to active meeting participants using targeted audio direction.
The TR535 ecosystem is scaled across distinct hardware combinations tailored by SKYRS for specific target environments in Pakistan:
Primary Unit: AVer TR535 (Dual-Lens 4K Master Unit).
Paired Components: AVer CL01 Hardware Joystick Controller (RS-232/IP cross-control).
Target Environment: University auditoriums, corporate presentation halls, and live corporate broadcasting suites.
Complementary Hardware: TR535 integrated alongside AVer FONE540 enterprise speakerphones or paired with AVer VB Series soundbars (VB350 / VB342 Pro).
Target Environment: Ultra-wide corporate executive boardrooms, international distance-briefing chambers, and government training hubs.
Exclusive Engineering & Availability at SKYRS
SKYRS provides specialized structural planning, technical localization, and certified engineering deployment for the AVer TR535 ecosystem across Pakistan—including Karachi, Lahore, Islamabad, Faisalabad, Peshawar, and Quetta.
Optical Alignment Mapping: Engineers evaluate room depth, lens sightlines, and lighting parameters to ensure ideal vantage points for both the PTZ head and the static panoramic sensor.
Rigid Structural Anchoring: Technicians execute heavy-duty ceiling bracket configurations or reverse-wall stabilization procedures to handle the system’s 3.6 kg chassis, eliminating lens jitter at full 30X optical zoom extension.
Signal Infrastructure Laydown: Deploying premium dual-shielded Cat6A cables for PoE++ delivery alongside broadcast-grade 3G-SDI coaxial lines and high-speed HDMI distribution pathways.
Network Tuning: Provisioning static IP schemas, optimizing VBR/CBR bitrate boundaries (from 512 Kbps to 64 Mbps), and mapping RTSP/SRT configurations through the local enterprise firewall.
AI Engine Calibration: Tailoring target detection metrics, designating custom spatial Shield Zones, and configuring custom pan/tilt travel speeds via the centralized Web UI.
Audio Routing Protocols: Linking 2-channel stereo audio lines through local line inputs, adjusting AAC-LC compression matrices, and configuring automated audio preset triggers.
Simultaneous Output Assessment: Stress-testing uncompressed 4K video paths concurrently across USB, HDMI, and IP streams to guarantee seamless, artifact-free performance.
AI Tracking Cross-Examination: Testing tracking agility against rapid presenter movements, lighting changes, and multiple cross-walking subjects to verify target locking.
Technical Operational Handover: Providing full system training to on-site IT personnel, covering preset indexing (up to 256 presets via IP/RS-232), remote controls, and custom layout presets.
