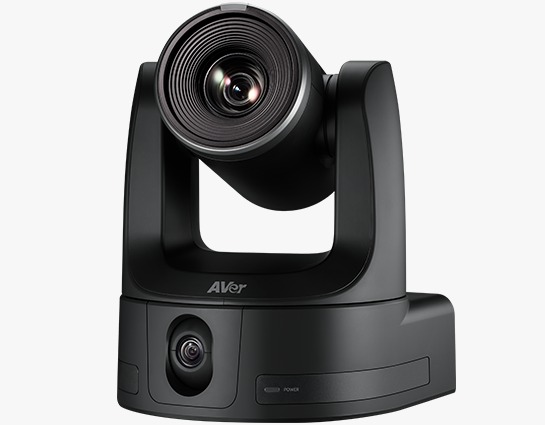

The AVer TR335N is an advanced single-lens 4K PTZ tracking camera designed for high-end video conferencing, distance learning, live events, and house of worship broadcasting. Featuring premium NDI HX3 integration, a powerful 30X optical zoom lens, and human-detection artificial intelligence, the TR335N provides broadcast-grade video tracking without requiring dedicated manual operators.
High-Fidelity Imaging: Built with a 1/2.8-inch 4K Sony Exmor CMOS sensor delivering 8 Megapixels of sharp resolution and exceptional low-light performance (0.5 lux minimum illumination).
Deep Zoom Optics: Equipped with a 30X optical zoom lens paired with a 12X digital zoom, providing an impressive 360X total magnification factor ().
Concurrent Multi-Channel Output: Streams crisp native 4K Ultra HD video at up to 60 frames per second concurrently over HDMI, USB 3.1 Type-B, and IP networks, while supporting up to 1080p at 60fps over its 3G-SDI interface.
NDI HX3 Technology: Native execution of the NDI HX3 protocol, providing ultra-low latency (<100ms) and near-lossless video streaming using a fraction of the bandwidth required by traditional high-bandwidth NDI setups.
Flexible Streaming & Control Protocols: Full support for SRT, RTSP, RTMP, RTMPS, HLS, and VISCA over IP, alongside classic hardware control via RS-232 and RS-422.
PoE+ Infrastructure Integration: Powered over a single network drop utilizing the PoE+ standard (802.3at), consolidating power, control data, and 4K video feeds.
The TR335N features advanced AI-driven human detection algorithms that respond intelligently to presenters and space constraints:
Presenter Mode: Automatically locks onto a primary presenter, offering full-body or half-body tracking. The system smoothly tracks the subject even if they leave the main stage or step into the audience.
Zone Mode: Focuses on content rather than human tracking alone. Users can create up to four custom Content Zones (such as whiteboards, presentation screens, or demo tables). The camera dynamically locks into these zones when the presenter steps into them.
Hybrid Mode: Merges Presenter and Zone tracking profiles. The camera relies on predefined content zones as the presenter navigates them, but instantly switches to active human tracking the moment the speaker ventures beyond those zones.
Gesture Control Interface: Presenters can toggle tracking on or off or switch tracking modes via simple intuitive hand gestures, eliminating the need for remotes.
Voice Tracking Compatible: Combines with leading professional microphone systems via AVer PTZ Link software or localized MT300N matrix modules for voice-guided automated position recall.
The following certified AVer TR335N system variants and ecosystem expansions are provisioned exclusively through SKYRS in Pakistan:
Primary Model: AVer TR335N (4K NDI HX3 Base Unit)
Target Environment: Medium-to-large university lecture halls, executive corporate auditoriums, and dedicated live web-casting facilities.
Ecosystem Components: Multiple TR335N cameras paired alongside the AVer CL01 Hardware PTZ Joystick Controller or integrated with AVer VB Series soundbars (VB350).
Target Environment: Broad-scale multi-angle corporate environments, governmental distance briefings, and premium hybrid meeting venues.
Exclusive Engineering & Availability at SKYRS
SKYRS provides specialized layout engineering, localized distribution, and full turnkey technical deployment for the AVer TR335N ecosystem across major metropolitan markets in Pakistan, covering Karachi, Lahore, Islamabad, Faisalabad, Peshawar, and Quetta.
Sightline Spatial Audits: Engineers evaluate the room’s physical dimensions, light levels, and structural paths to ensure optimal camera tracking coverage.
Vibration-Free Mounting: Technicians deploy certified dual-ceiling or heavy-wall anchor systems to secure the 2.0 kg camera chassis, preventing camera shake when the lens extends to full 30X optical zoom.
Signal Cable Laydown: Deployment of shielded Cat6A drops for PoE+ transmission alongside parallel broadcast-grade 3G-SDI and premium HDMI routing arrays.
NDI HX3 Workflow Commissioning: Setting up static IP allocations, optimizing VBR/CBR bitrate boundaries (512 Kbps to 32 Mbps), and mapping secure RTSP/SRT/NDI streams through local enterprise firewalls.
AI Engine Customization: Mapping custom preset zones, setting up gesture control thresholds, and adjusting pan/tilt tracking acceleration parameters (up to preset speed) via the Web UI.
Audio Matrix Integration: Routing local line/mic audio through the 3.5mm stereo terminal, matching AAC-LC encoding parameters, and setting up PTZ Link for voice tracking.
Simultaneous Stream Stress Test: Testing native 4K video feeds running concurrently through USB, HDMI, and IP outputs to ensure zero frame drop across local decoders.
AI Tracking Field Validation: Fine-tuning tracking agility against fast presenter movements, target obstructions, and cross-walking personnel to guarantee continuous target lock.
Technical Operations Handover: Providing deep system training for local IT teams, covering preset indexing (up to 256 presets via IP/RS-232), privacy sleep modes, and Web UI remote management
