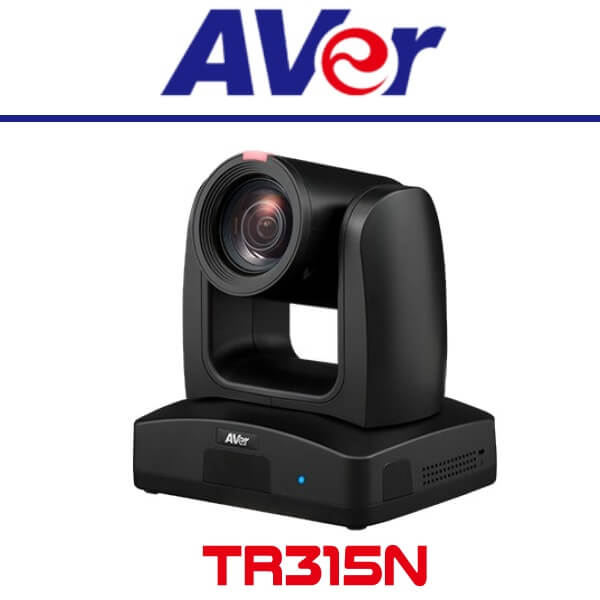

AVer TR315 AI Auto Tracking PTZ Camera Datasheet Exclusively Distributed and Supported by SKYRS Pakistan
The AVer TR315 is an enterprise-grade AI Auto Tracking PTZ camera designed for corporate boardrooms, modern classrooms, auditoriums, and premium video conferencing spaces in Pakistan. Delivering elite 4K Ultra HD video at 60 fps, it eliminates the need for manual camera operation by utilizing advanced machine-learning human detection tracking.
Key Technical Specifications
Image Sensor: 1/2.8 inch 8 Megapixel Sony Exmor CMOS Sensor
Video Output Resolution: Up to 4K Ultra HD at 60 fps (3840 x 2160) via HDMI, USB, and IP
Optical Zoom: 12X Optical Zoom (maintains seamless focus during movement)
Digital Zoom: 12X Digital Zoom
Field of View (FOV): Horizontal FOV: 72.8° (Wide) to 6.7° (Tele)
PTZ Movement Range: Pan: ±170°; Tilt: -30° to +90°
Multi-Interface Connectivity: 3G-SDI, HDMI, USB 3.0 Type-B, LAN (Gigabit Ethernet), RS-232, RS-422, Audio Line-In / Mic-In
Power Delivery: PoE+ (Power over Ethernet Plus IEEE 802.3at) or DC 12V
Advanced AI Tracking & Image Processing
Presenter Mode: Automatically locks onto and tracks a designated speaker (full or half-body) as they move across a stage, ignoring audience interference.
Zone Mode: Targets up to four pre-defined content areas (such as whiteboards or digital displays), prioritizing presentation materials over human movement.
Hybrid Mode: Smartly switches between Presenter and Zone tracking dynamically based on the speaker’s active position.
Gesture Control: Intuitively triggers or cancels tracking via simple hand gestures.
Voice Tracking Ready: Integrates with selected ceiling or tabletop microphones via AVer PTZ Link software for automated camera position shifts based on voice localization.
Wide Dynamic Range (WDR): Uses advanced algorithms to automatically balance high-contrast or backlit environments, ensuring clear exposure.
Available Variants for SKYRS in Pakistan
SKYRS provides complete localized variations tailored to different spatial requirements and network topologies across Pakistan:
Variant 1: AVer TR315 Standalone Unit
Best For: Integrating directly into legacy AV matrix systems, existing broadcasting racks, or software-based streaming environments.
Includes: Camera unit, IR Remote control, 12V power adapter, RS-232/DIN cables, and standard wall/ceiling mount brackets.
Variant 2: AVer TR315 UC Room Solution Bundle
Best For: Native software integration with platform environments such as Microsoft Teams Rooms (MTR) and Zoom Rooms.
Includes: TR315 Camera combined with enterprise USB expansion speakerphones/microphones and dedicated computing endpoints for complete platform synchronization.
Variant 3: AVer TR315 Pro AV Hardware Production Kit
Best For: Multi-camera auditorium setups, live hybrid events, or educational distance-learning networks requiring physical controls.
Includes: TR315 Camera paired with an external hardware management station, an AVer MT300N matrix tracking box, or an AVer physical IP/Serial joystick controller.
Deployment Installation and Configuration Availability Only at SKYRS
To guarantee optimal uptime, network isolation, and seamless hardware operation, this complete professional lifecycle service is handled exclusively on-site by certified SKYRS infrastructure engineers anywhere in Pakistan.
Professional Site Survey and Structural Installation
Optical Alignment: SKYRS engineers perform precise site measurements to calculate optimal throw distances, lens angles, and height placements, avoiding room glare or blind spots.
Structural Mounting: Rigid inverted ceiling mounting or heavy-duty wall bracket reinforcement with concealed, low-voltage cable containment to ensure a clean finish.
Enterprise Cabling: Standard deployment of high-grade Cat6 PoE+ lines, 3G-SDI, and high-speed HDMI infrastructures back to central command consoles or AV network closets.
Advanced Network Configuration and Protocol Tuning
Subnet and IP Optimization: Isolation of camera video streams into dedicated AV-VLANs with static IP assignments to manage local network bandwidth effectively.
Web UI Security Hardening: Configuration of custom security credentials, port management, and firmware validation to comply with corporate IT security architectures.
AI Algorithm Calibration: Precision tuning of human detection parameters. SKYRS specialists map the spatial boundaries of your environment, saving custom Presenter, Zone, and PTZ presets directly into the system’s firmware memory.
Unified Communications Platform Sync and Training
Software Handshake Verification: Thorough testing with major communication tools including Zoom, Teams, Cisco Webex, vMix, Panopto, and Echo360 to guarantee driver compatibility.
Local Support and Handover: Complete operational walk-through and hand-off training for the customer’s on-site IT or administrative team, covering manual remote control overrides and software management utilities.
