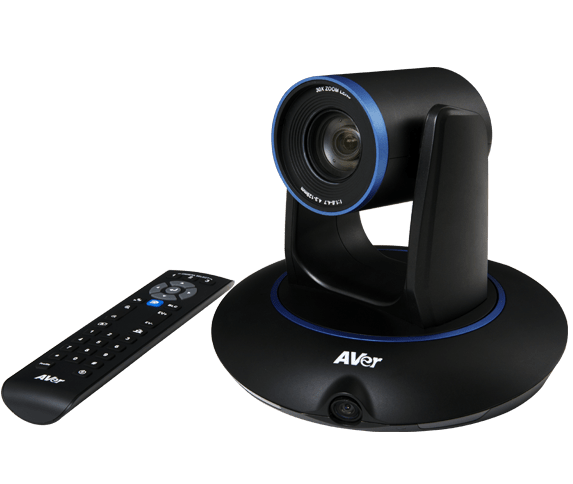

The AVer PTC500+ is a flagship, broadcast-grade Full HD 1080p dual-lens auto-tracking camera designed for large-scale auditoriums, elite distance learning setups, government lecture halls, and high-end video conferencing environments. By pairing a powerful 30X optical zoom PTZ tracking camera with a secondary 120° wide-angle panoramic lens, it delivers a comprehensive view of the environment while seamlessly maintaining an absolute tracking lock on the presenter.
Tracking PTZ Camera Sensor: 1/2.8″ 1080p Exmor CMOS Sensor (2 Megapixels)
Panoramic Camera Sensor: Secondary 1/2.8″ Low-Lux CMOS Sensor with Wide Dynamic Range (WDR)
Output Resolution: Full HD 1080p at 60fps, 50fps, 30fps (Multi-format scaling down to 720p)
Optical Zoom Lens: 30X
Digital Zoom Lens: 12X (Total combined zoom matrix up to 360X)
Panoramic Lens FOV: Ultra-wide Diagonal FOV (DFOV) of 120°, Horizontal FOV (HFOV) of 110°
Mechanical PTZ Range: Pan: ±175°, Tilt: +90° / -30°
Wide Area Tracking: Gives presenters absolute freedom to walk down from the stage and interact with audiences or students without dropping tracking lock, even if lines of sight are temporarily blocked by furniture or pillars.
Stage Tracking: Restricts tracking movement along a specific performance plane, utilizing up to 8 customizable “shielding zones” to block out visual environmental interferences like ceiling fans or moving projection screens.
Segment Tracking (Multi-Zone Focus): Establishes up to 4 specific structural zones (such as content boards or digital displays). The camera autonomously snaps to the designated display area as soon as the presenter steps inside its coordinates.
Simultaneous Video Outputs: 3G-SDI (Dual layout outputs), HDMI, IP (Ethernet), and Plug-and-Play USB (Type-B)
Audio Input Line: 3.5mm Stereo Mic-in / Line-in supporting advanced AAC-LC and PCM codecs
Control Ports: RS-232 (DIN8), RS-422, IP (RJ45)
Network & Streaming Architecture: H.264, MJPEG; IPv4, TCP, UDP, HTTP, DHCP, RTSP, RTMP, ONVIF, and VISCA over IP
SKYRS maintains complete stock logistics and specialized support pipelines within Pakistan for all physical color profiles of the PTC500+ platform:
AVer PTC500+ (Standard Dark Charcoal Finish): Optimized for traditional auditoriums, dark-themed corporate environments, and broadcast media production desks.
AVer PTC500+ White (Alpine White Finish): Crafted specifically for architectural alignment inside clean medical theaters, modern corporate huddle hubs, and bright university lecture centers.
As the authorized integration specialist for premium AVer Pro AV infrastructure across Pakistan, SKYRS delivers full turnkey field services directly managed by certified in-house engineers.
Dual-Lens Optical Alignment: Structural placement via high-stability wall mount brackets or heavy-duty ceiling mount arrays. The dual-lens matrix requires precise geometric calibration to ensure proper interplay between the panoramic landscape view and the primary tracking lens.
Structured Infrastructure Cabling: Specialized termination of high-bandwidth dual 3G-SDI, HDMI, and USB paths. Power architectures are optimized through PoE+ (Power over Ethernet) to deliver power, serial control, and multi-stream video lines across a single Cat6 network cable.
Unified Communications Interfacing: Custom port mapping to provide flawless plug-and-play and IP network linking into enterprise tools like Zoom, Microsoft Teams, Webex, and hardware-based RTMP streaming equipment.
AI Calibration & Shielding Zones: Custom programming of the target acquisition thresholds, stage tracking limits, and shielding coordinate parameters via the built-in AVer Web UI.
Central Control Integration: Linking the tracking network with external control hardware, such as the AVer CL01 PTZ joystick controller keyboard, or centralized room automation control panels.
Exclusive Availability Note: Authorized hardware procurement pipelines, genuine manufacturer-backed warranties, replacement components, and professional field deployment, installation, and configuration services for all AVer PTC500+ variants are available exclusively through SKYRS within Pakistan.
