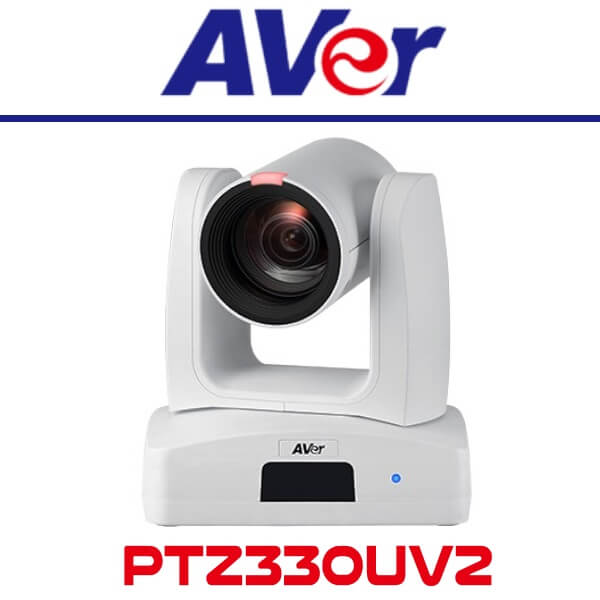

AVer PTC330UV2 AI Auto Tracking Camera Data Sheet
The AVer PTC330UV2 is a premier 4K AI Auto Tracking PTZ camera designed for high-end video conferencing, broadcasting, distance learning, and corporate presentation environments. Integrating advanced human-detection AI with a powerful 30X optical zoom lens, it delivers ultra-precise tracking and broadcast-quality video streams.
Image Sensor: 1/2.8″ 4K Exmor CMOS sensor (8 Megapixels)
Output Resolution: Up to 4K Ultra HD at 30fps / 1080p at 60fps
Optical Zoom: 30X
Digital Zoom: 12X (Total 360X Zoom capability)
Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps)
Pan / Tilt Angles: Pan: ±170°, Tilt: +90° / -30°
Presenter Mode: Tracks the speaker dynamically across the room or stage, ignoring other moving objects or obstructions.
Zone Mode: Locks onto predefined content areas (e.g., whiteboards, displays) rather than the presenter’s personal movements.
Hybrid Mode: Blends preset section tracking with dynamic human following for seamless visual transitions.
Video Outputs: 3G-SDI, HDMI, IP (Ethernet), and USB 3.0 (Type-B)
Audio Inputs: Mic-in, Line-in (2-channel stereo with AAC-LC/PCM codecs
Control Interfaces: RS-232, RS-422, IP
Network Protocols: IPv4/IPv6, RTSP, RTMP, HTTP, DHCP, VISCA over IP
SKYRS fulfills diverse aesthetic and architectural requirements across corporate offices and educational institutions in Pakistan by offering all standard variants of this flagship system:
AVer PTC330UV2 (Standard Charcoal/Black): Ideal for traditional auditoriums, media centers, and dark-themed executive boardrooms.
AVer PTC330UV2W (Alpine White): Optimized for modern minimalist spaces, hospitals, clean-room environments, and bright university lecture halls.
As the specialized integrator for AVer professional systems in Pakistan, SKYRS provides end-to-end turnkey services natively managed by certified engineers.
Site Surveys: Comprehensive spatial evaluation to analyze acoustic profiles, sightlines, and lighting parameters.
Structural Mounting: Secure deployment utilizing dual ceiling mount brackets (included), customized wall mounts, or integrated desk placements. Upside-down structural orientation is fully supported via built-in image flip and mirror mechanisms.
Clean Cable Architectures: Structured termination of SDI, HDMI, USB, and Cat6 network infrastructure. System power is cleanly routed through PoE+ (Power over Ethernet) to eliminate separate DC power line footprint requirements.
Network & Streaming Provisioning: Network calibration using static IP allocation or DHCP parameters to stream multi-channel audio/video effortlessly through standard platforms (Zoom, Microsoft Teams, Webex).
AI Target Calibration: Setup and fine-tuning of the Human Detection AI engine, including the programmatic outlining of “Tracking Zones” and “Preset Boundaries.”
Control Matrix Integration: Programming of PTZ management software, configuration of the physical remote, or linking with hardware-based AV matrix switchers (such as the AVer CL01 PTZ controller).
Exclusive Availability Note: Comprehensive supply logistics, local hardware warranties, post-purchase maintenance SLA agreements, and full deployment/configuration services for all AVer PTC330UV2 variants are managed directly by SKYRS engineering teams within Pakistan.
