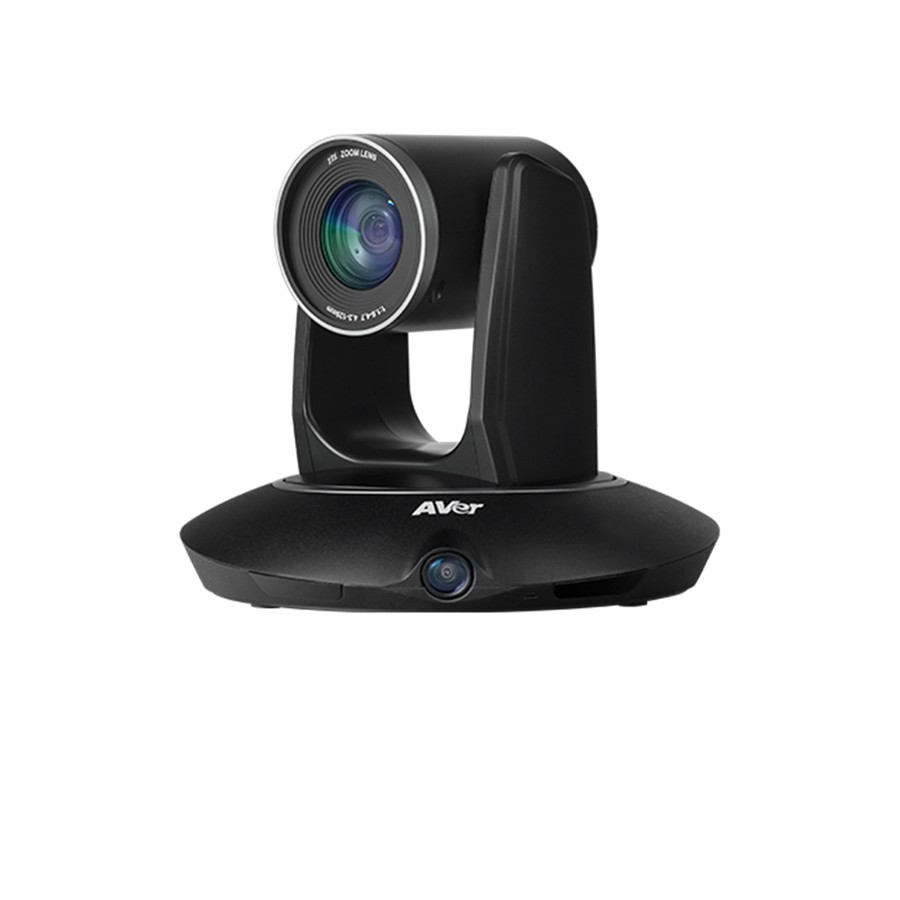

AVer PTC115+ Dual-Lens AI Auto Tracking Camera Data Sheet
The AVer PTC115+ is an advanced, broadcast-ready Full HD 1080p dual-lens auto-tracking camera tailored specifically for elite lecture capture, distance learning, and large-scale video conferencing. Featuring a unique hybrid design, it couples a high-magnification PTZ tracking camera with a super-wide secondary panoramic lens. This allows the system to analyze whole-room environments while simultaneously locking onto presenters with unparalleled precision.
Primary PTZ Sensor: 1/2.8″ Full HD Exmor CMOS Sensor (2 Megapixels)
Panoramic Sensor: Secondary 1/2.8″ Low Lux CMOS Sensor with WDR (2 Megapixels)
Output Resolution: Full HD 1080p at 60fps, 50fps, 30fps (Multi-format downward scaling to 720p)
Optical Zoom Lens: 15X (Select variants scale up to 22X based on manufacturing block revisions)
Digital Zoom: 12X (Total combined zoom matrix up to 180X)
Panoramic Lens FOV: Super-wide Diagonal FOV (DFOV) of 120°, Horizontal FOV (HFOV) of 110°
PTZ Mechanical Angles: Pan: ±175°, Tilt: +90° / -30°
Wide Area Tracking: Gives the speaker total freedom to traverse large auditoriums or interact with participants without dropping target focus, even if lines of sight are temporarily broken.
Stage Tracking: Fluids camera framing specifically along a performance line or stage boundary, utilizing up to 8 customizable shielding zones to block environmental video interference like structural fans or overhead projectors.
Segment Tracking (Content Focus): Programmatically establishes up to 4 specialized Content Zones (such as dynamic whiteboards or media boards), prioritizing display clarity directly over the presenter’s path.
Multi-Presenter Detection: Accurately targets the main speaker while simultaneously detecting and adjusting for secondary individuals entering the field of view.
Simultaneous Video Outputs: 3G-SDI (Dual layout support), HDMI, IP (Ethernet), and Plug-and-Play USB (UVC/UAC protocols)
Acoustic Audio Input: Line-in / 3.5mm Stereo jack supporting AAC-LC, G.711, and PCM formatting
Control Infrastructure: RS-232 (DIN8), IP (RJ45)
Network & Streaming Architecture: H.264, MJPEG; IPv4, TCP, UDP, HTTP, DHCP, RTSP, RTMP, ONVIF, and VISCA over IP
SKYRS guarantees immediate commercial pipeline access and long-term technical hardware support across Pakistan for the full structural lineage of the PTC115+ series:
AVer PTC115+ (Standard Charcoal Black Finish): Optimally designed for formal presentation spaces, command control desks, and traditional corporate conference environments.
AVer PTC115+ White (Alpine White Finish): Custom tailored to fit the clean interior compliance demands of modern medical training centers, contemporary smart classrooms, and open-plan design rooms.
As the premier systems integration expert for AVer professional Pro AV architectures across Pakistan, SKYRS delivers a clean, fully managed turnkey experience using on-site certified engineering crews.
Dual-Lens Optical Alignment: Precise positioning via custom L-type heavy-duty wall mounts or robust overhead ceiling plates. The dual-lens architecture requires exact leveling to optimize the interaction between the panoramic view and the primary tracking lens.
Structural Infrastructure Cabling: Integration and clean wire dressing for high-bandwidth dual 3G-SDI, HDMI, and USB paths. Power architectures are supported over PoE+ (Power over Ethernet IEEE 802.3at) to allow one-cable runs containing control, video streams, and device power.
Video Ecosystem Calibration: Precision matching of camera streams to interface natively with enterprise collaboration platforms, including Zoom, Microsoft Teams, Cisco Webex, and local RTMP hardware streaming encoders.
AI Engine Customization: Configuring coordinate maps for Content Zones, tailoring tracking response speeds, and establishing trigger parameters through the secure AVer Web UI.
Control System Interfacing: Programming the camera network to talk seamlessly to hardware control desks, such as the AVer CL01 PTZ joystick keyboard controller, or centralized automation infrastructure.
Exclusive Availability Note: Local authorized equipment procurement, authentic manufacturer warranties, original replacement components, and specialized field engineering deployment, installation, and configuration services for the AVer PTC115+ system are available exclusively via SKYRS inside Pakistan.
