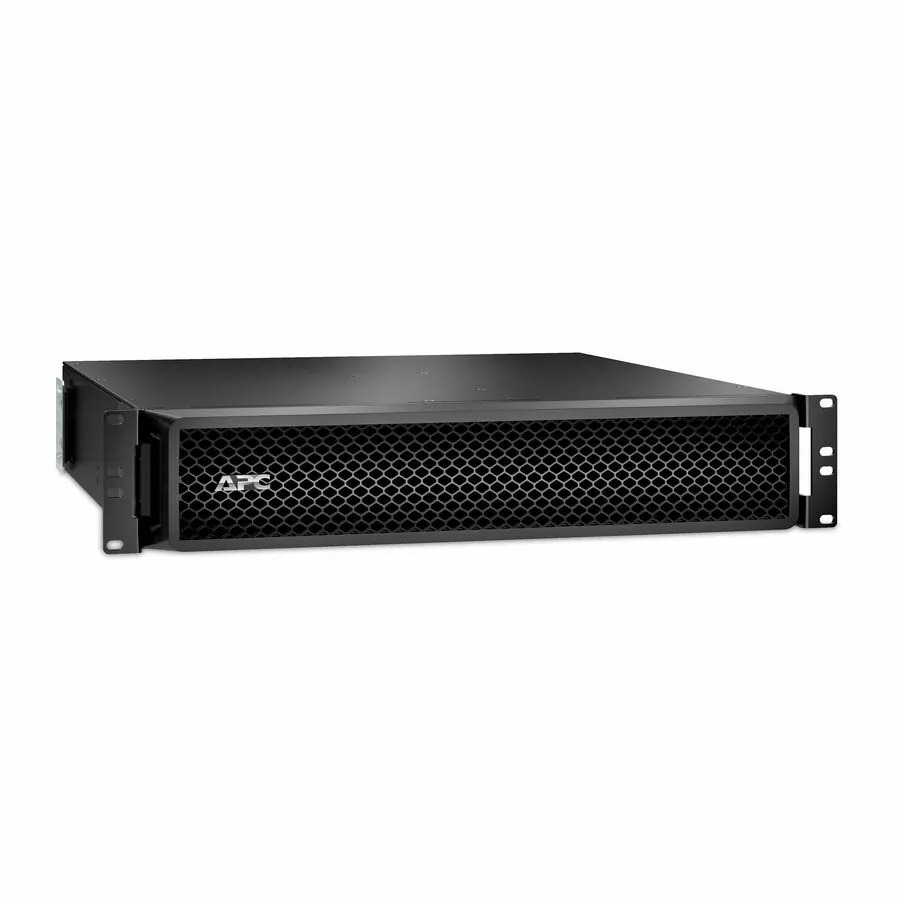

APC SMX2200RMHV2U APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime SMX2200RMHV2U

APC Smart-UPS X 2200VA High-Voltage Series (SMX2200RMHV2U & Variants)

The APC Smart-UPS X 2200VA (SMX2200RMHV2U) series is an enterprise-class, line-interactive power protection system designed for high-density servers, critical storage arrays, and advanced telecommunication nodes. Operating on a native high-voltage window (208V–240V), this series is perfectly matched with standard industrial utility lines. Built into a slim, space-saving 2U rack/tower convertible chassis, it bridges short-depth installation convenience with dynamic runtime scalability.

Technical Specifications and Variant Lineup

The SMX2200RMHV2U family delivers pure sine wave backup energy to avoid operational distortions. While sharing an identical 1980-watt core topology, distinct variants offer tailored out-of-the-box management options:

Advanced Operational Enhancements

• Ultra-Efficient Green Mode: A patent-pending operational architecture that automatically bypasses internal components during stable utility grid conditions. This minimizes thermal emission and power bills without compromising line-interactive protection.

  ADI

• Granular Switched Outlet Groups: Divided into three separately programmable outlet banks to accommodate automated, progressive load-shedding parameters or target independent equipment reboots.

  ADI

• Smart External Connector Integration: Intelligent battery monitoring circuitry automatically senses the attachment of external 2U battery expansion modules (SMX120RMBP2U). It seamlessly rewrites internal runtime calculations on the console interface.

  Network Warehouse

Technical Infrastructure Deployment and Installation

Integrating high-voltage (208V–240V) hardware into active enterprise setups requires qualified site deployment to avoid configuration errors and grid-balancing failure.

Grid and Power Matching

The native 230V electrical configuration of the SMX2200RMHV2U aligns safely with the standard utility grid configuration across Pakistan. Field integration engineers deploy heavy-duty input source adapters to convert industrial lines safely into the unit’s rear-mounted IEC 320 C20 inlet, matching input circuit breakers to prevent overloading during battery recharge phases.

Dual Physical Adaptations

The system features universal physical chassis properties to adapt smoothly to modern equipment footprints:

• Tower Layout Installation: Stabilizing foot attachments are fastened to the exterior walls, permitting upright freestanding tower orientations inside regional communications spaces.

• Rackmount Cabinet Integration: Heavy-duty variable chassis rails align securely into standard 19-inch IT frames, using 2U of vertical space while offering compact depths for maximum airflow circulation.

Scalable Back-Up Linking

Internal leakproof Valve Regulated Lead-Acid (VRLA) batteries slide tightly into the chassis face. If applications demand deeper backup time, supplementary external 2U battery cabinets (SMX120RMBP2U) are daisy-chained via heavy-duty rear DC connectors, coupled with dedicated data wires to prevent thermal runtime issues.

Advanced Management and System Configuration

Once physical mounting is complete, engineering teams optimize internal firmware values to guarantee comprehensive network safety:

Localized Interface Tuning

The interactive, multi-lingual front LCD panel is custom-configured to define accurate voltage-transfer thresholds. This shields the unit from triggering unnecessary battery discharge cycles during minor regional grid variations or local backup generator transitions.

Network Interface Provisioning

For standard models upgraded with an add-on Network Management Card (NMC), or for pre-integrated units (SMX2200RMHV2UNC), engineers configure dedicated static IP structures, secure SNMP polling traps, and network encryption layers. This enables secure monitoring of remaining battery percentages, ambient temperature metrics, and power logs from a central location.

Automated PowerChute Logic Scripting

Engineers program PowerChute Network Shutdown agents directly across target server blades, hypervisors (such as VMware ESXi or Microsoft Hyper-V), and connected storage networks. During extended outages, the automation triggers an orderly shutdown process—saving running databases and safely turning off auxiliary hardware first to preserve remaining runtime for vital routing circuits.

Exclusive Pakistan Availability Policy

Exclusive Channel Operations: All service lines including structural hardware sourcing, step-down voltage engineering, physical rack assembly, and multi-node software configuration for the APC SMX2200RMHV2U portfolio are handled and executed exclusively by SKYRS within Pakistan. Dedicated data center deployment teams operate directly out of nationwide operations hubs to maintain strict technical compliance and enforce full localized warranty execution.
