Yealink W90 DECT IP Multi-Cell System
Exclusively Available and Supported by SKYRS Pakistan
The Yealink W90 DECT IP Multi-Cell System provides organizations across Pakistan with seamless mobility, enterprise scalability, and reliable wireless communication. Designed for expansive spaces such as warehouses, multi-floor offices, healthcare facilities, and hospitality campuses, this multi-cell system eliminates wireless blind spots while guaranteeing premium high-definition voice performance and uninterrupted handover capabilities.
Yealink W90 Product Variants Available Exclusively at SKYRS
The specialized Yealink W90 multi-cell network infrastructure is built using dedicated ecosystem variants optimized for flexible business scaling:
Yealink W90DM (DECT Manager): The centralized management intelligence unit for your entire wireless network infrastructure. It manages up to 60 base stations, orchestrates cross-base seamless handover protocols, and handles all unified SIP provisioning without actively transmitting RF signals.
Yealink W90B (DECT Multi-Cell Base Station): The specialized RF radio unit that provides physical wireless coverage. Fitted with rotatable external antennas, it pairs directly with the W90DM to transmit signals and maintain cell-to-cell voice synchronization.
Yealink Virtual Integrator Manager (VIM): An optional virtual machine software deployment layer that integrates multiple DECT Managers. This variant scales large enterprises up to an incredible 10 DECT Managers, 600 base stations, and 2,500 active handsets.
Key Technical Specifications and Performance Capabilities
Massive Scalability: A standard multi-cell cluster supports 1 W90DM, 60 W90B base stations, 250 SIP accounts, and 250 synchronized wireless endpoints.
Simultaneous Call Capacity: Up to 250 parallel system calls (managing up to 8 narrowband or 4 wideband calls simultaneously per individual W90B base station).
Rotatable External Antennas: Provides flexible RF steering with an indoor range between 30 to 50 meters and an outdoor line-of-sight range up to 300 meters.
Elite Audio Standards: Integrates full-duplex speakerphone technology and high-fidelity audio processing via the advanced Opus and G.722 wideband codecs.
Robust Network Synchronization: Supports dual-mode Air Sync and LAN Sync, ensuring ultra-stable roaming handovers even in areas with severe structural interference.
Enterprise Wireless Deployment and Site Installation Protocols
SKYRS delivers end-to-end professional deployment engineering across Pakistan:
1. RF Site Survey and Coverage Planning To guarantee smooth, uninterrupted audio roaming, SKYRS utilize the Yealink DECT Deployment Toolkit to systematically map signal metrics. Base stations are placed strategically to establish precise signal overlap zones before structural mounting.
2. Physical Hardware Mounting
The sleek, pearl-white W90 chassis supports rapid wall mounting with included expansion alignment anchoring.
The hardware integrates rotatable dual external antennas, which must be manually adjusted during installation to steer coverage into complex building corridors or high-density racking.
3. Power Infrastructures
W90 systems leverage flexible Power over Ethernet (PoE 802.3af Class 1) to operate directly via data lines.
Where PoE switches are unavailable, devices can alternatively run on an official Yealink DC 5V/1.2A external power supply adapter.
Advanced Multi-Cell System Configuration and Provisioning
Network configuration is streamlined via targeted administration protocols:
1. Automated Zero-Touch Provisioning The configuration architecture leverages an automated IP Discovery Tool for immediate tracking of the W90DM on the network. Mass deployment across multiple corporate campuses is achieved using Redirection and Provisioning Service (RPS) templates over secure HTTPS/TLS.
2. Centralized Network Configuration Interface System administrators can control the entire multi-cell ecosystem using a single web-based GUI hosted natively on the W90DM DECT Manager. This allows central directory binding (LDAP/XML Remote Phonebooks), firmware rolling updates, and immediate CSV-based bulk import of user accounts.
3. Endpoint Registration and Handset Syncing Compatible wireless endpoints—such as Yealink premium mobile handsets (W56H, W53H, W59R, W73H, W78H) and conferencing stations (CP930W, CP935W)—are registered over-the-air through the central interface using quick IPUI authentication tokens, preventing interference with active calls on neighboring nodes.
Exclusive Procurement and Technical Service Availability
Availability Notice: The entire Yealink W90 Multi-Cell platform architecture—inclusive of authorized local warranties, official replacement components, professional site mapping, and post-installation technical SLA support—is available in Pakistan exclusively through SKYRS.
Skyrs proudly operates as the leading supplier of high-end enterprise wireless solutions across the country. Consequently, businesses can upgrade their communication platforms. Skyrs is the only vendor in pakistan that has Yealink W90 equipment for call center call centre and software houses with different variants of Yealink W90 equipment for ucm pbx grandstream Yealink W90 dintar asterisk hosted call center office factory zoom ringcentral. We maintain a full inventory of supplementary hardware components. These include customized server systems, dedicated storage drives, fast SSD expansions, and upgraded server RAM modules.
Furthermore, our enterprise stock accommodates any active call center call centre, high-tech office, smart home, heavy industry, modern hospital, or defence forces network.
We satisfy regional communication demands efficiently. Therefore, corporate clients can acquire components across multiple territorial territories instantly:
Corporate Hubs: Buy Yealink W90 equipment Lahore/Islamabad directly from our distribution centers. We provide the most economical Yealink W90 price in Pakistan.
Southern Logistics: Request an immediate Yealink W90 Yealink W90 W90 price in Karachi for expanding wireless roaming networks.
Northern Frontier: Check the updated Yealink W90 Yealink W90 W90 price in kpk or request a Yealink W90 price in peshawar from our sales team.
Industrial Hubs: Contact us for an accurate Yealink W90 Yealink W90 price in faisalabad or purchase units in Sialkot.
Regional Capitals: We offer a fast Yealink W90 Switch Yealink W90 price in quetta alongside local delivery options in Multan and Hyderabad.
Volume Purchases: Request a comprehensive Yealink W90 bulk quote through our dedicated Yealink W90 equipment series distributor Pakistan channel.

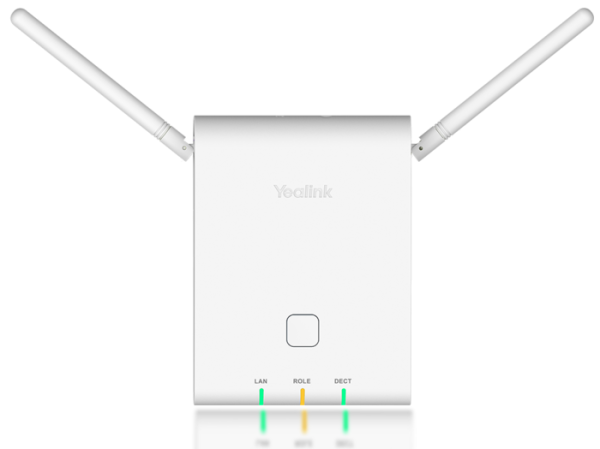

Figure 1: Official manufacturer physical depiction of the multi-cell enterprise station.
The system provides premium wireless stability over expansive architectural spaces. For example, the specialized base station features an advanced multi-cell system architecture. This ensures that Yealink W90 signals stay strong during active mobile handovers.
[Main Network Gateway] ---> [Yealink W90 DECT Manager] ---> [Multiple W90 Base Stations]
|
+---> Managed Routing Layer ---> [Seamless Mobile Handset Roaming]
Administrators can use the official Yealink W90 equipment configuration guide to complete multi-cell network setups easily. Additionally, the network hardware manages a high Yealink W90 throughput limit to prevent voice packet drops.
To expand network reach safely, engineers can implement a secure Yealink W90 VLAN configuration to separate enterprise voice channels. Every deployment functions smoothly within a defined Yealink W90 PoE power budget over standard Ethernet cables.
| Technical Metrics | Yealink W90 All Variants | Basic Competitor DECT Alternatives |
| Simultaneous Calls | Handles up to 250 active corporate calls | Limited to fewer than 40 parallel calls |
| Base Support | Connects up to 60 base modules together | Restricted to simple standalone single bases |
| System Maintenance | Simple Yealink W90 firmware update download | Complex manually controlled file upgrades |
| License Management | Fast Yealink W90 security license activation | Expensive per-device hardware licensing keys |
Whether you source a Branded used Yealink W90 module or a certified Refurbished Yealink W90 unit, we provide optimal hardware quality. Every kit features an attractive Yealink W90 used price 2026 structure.
This helps your business secure a lower Yealink W90 pack price on bulk deployments. Review the full technical features on the official Yealink Manufacturer Resource Portal. Alternatively, purchase your units through the Skyrs Online Product Catalog today.
Q1: How to reset Yealink W90 equipment to factory settings?
First, disconnect the device power supply cable safely. Next, hold down the physical device button while reconnecting power until the status indicators flash completely.
Q2: Where can I find a secure Yealink W90 Yealink W90 datasheets download?
You can download official engineering documents directly from our website at skyrs.com.pk or through the manufacturer portal.
Q3: How do I apply a new Yealink W90 memory upgrade or a Yealink W90 rack mount kit?
First, open the server chassis structure carefully. Next, install certified modules into open slots, or attach the mount brackets to your network rack enclosure.
