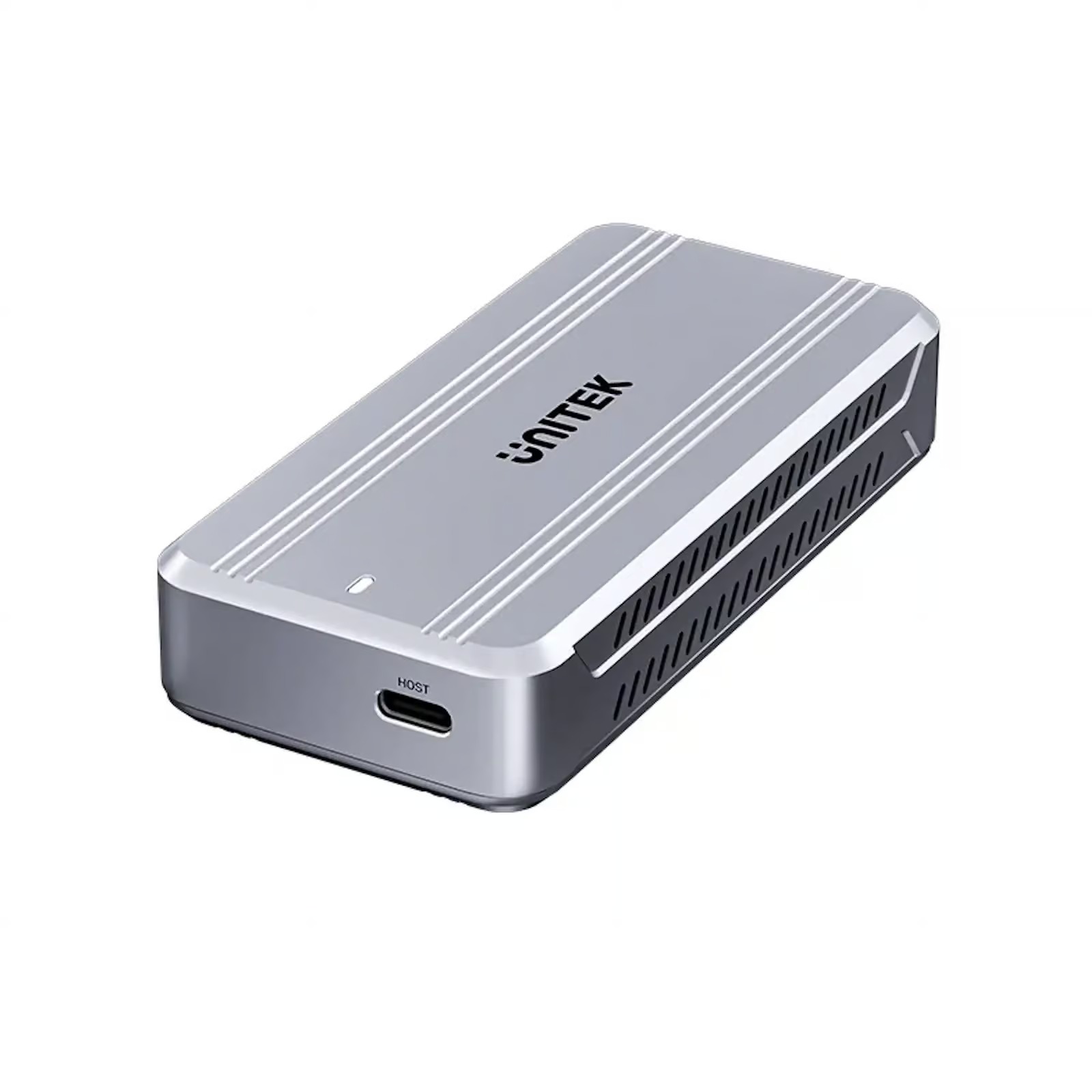

UNITEK SolidForce Reefer SSD Enclosure Series Data Sheet
The UNITEK SolidForce Reefer series is a high-performance thermal-focused storage solution designed to keep high-speed M.2 NVMe and SATA SSDs cool during intense data transfers. By integrating advanced cooling architectures—including built-in fans and enlarged aluminum fins—this series prevents thermal throttling for consistent 10Gbps to 40Gbps performance.
Technical Specifications and Variants
Available through SKYRS in Pakistan, the Reefer series caters to users ranging from standard office backup to elite 8K video editing and professional gaming:
| Feature |
Reefer Either (S1229A) |
Reefer Pro (S1226A) |
Reefer TurboCool (S1242A) |
| Interface |
USB 3.2 Gen2 |
USB4 / Thunderbolt 4 |
USB4 / Thunderbolt 4 |
| Max Speed |
10 Gbps (1000MB/s) |
40 Gbps (2800MB/s) |
40 Gbps (3800MB/s) |
| Protocol |
Dual NVMe & SATA |
PCIe NVMe Only |
PCIe NVMe Only |
| Cooling Type |
Passive Heat Fins |
Enlarged Passive Fins |
Active Smart Cooling Fan |
| SSD Sizes |
2242, 2260, 2280 |
2242, 2260, 2280 |
2242, 2260, 2280 |
| Max Capacity |
Up to 8TB |
Up to 8TB |
Up to 16TB |
| Build Material |
Milled Aluminum |
Aerospace-Grade Alu |
Hollowed Aluminum Alloy |
Key Performance Features
-
Thermal Management: The “Reefer” architecture allows for SSDs with pre-installed heatsinks (up to 12.5mm height) to fit comfortably, or utilizes the included aluminum heat exchanger.
-
Smart Fan Technology (TurboCool): On active models, the internal fan automatically triggers when internal temperatures exceed 45°C to maintain peak write speeds.
-
Universal Handshaking: Backward compatible with USB 3.1, 3.0, and 2.0, as well as Thunderbolt 3/4 ports.
-
Rugged Portability: Impact-resistant aluminum shells protect delicate NVMe components from drops and external pressure.
Deployment and Installation Guide
Hardware Assembly
-
Unlocking: Use the included mini-screwdriver to remove the rear security screw or slide the lock mechanism (model dependent).
-
SSD Insertion: Align the M-Key or B+M Key of your SSD with the internal slot and insert firmly.
-
Thermal Application: Peel the plastic off the Silicone Thermal Pad and place it on the SSD controller and NAND chips.
-
Heat Exchanger: Place the Aluminum Heat Exchanger over the thermal pad before sliding the outer casing back into place.
Installation Steps
-
Connect the included high-bandwidth USB-C to USB-C cable (or the USB-A adapter for legacy ports).
-
The blue LED indicator will glow solid when power is connected and flash during data activity.
-
On Windows, the Reefer series supports UASP (USB Attached SCSI Protocol) for 70% faster read speeds compared to traditional USB storage.
Configuration and Performance Tuning
To optimize your Reefer enclosure for professional workflows:
-
Enable TRIM (Windows/Mac): Ensure TRIM is active to maintain SSD health over time. On Mac, use the terminal command sudo trimforce enable if it is not automatically detected.
-
RAID & Storage Pools: For TurboCool users with multiple drives, utilize Windows Storage Spaces or macOS RAID Assistant to create striped (RAID 0) volumes for maximum speed.
-
Format Selection: Use exFAT for universal compatibility between Windows, Mac, and high-end cameras/phones. Use NTFS or APFS if the drive is dedicated to only one operating system.
Availability and Support at SKYRS Pakistan
The UNITEK SolidForce Reefer series is stocked and supported exclusively by SKYRS, the leading distributor for high-performance data infrastructure in Pakistan.
-
Authenticity Guaranteed: SKYRS provides 100% genuine UNITEK hardware, essential for the high-current stability required by 40Gbps USB4 enclosures.
-
Nationwide Logistics: Fast delivery to major cities including Karachi, Lahore, Islamabad, and Faisalabad.
-
Professional Support: SKYRS offers configuration assistance for photographers and editors integrating these enclosures into 4K/8K production rigs.
Are you looking for a specific NVMe drive recommendation to pair with the 40Gbps TurboCool
