UNITEK Cat6 RJ45 Ethernet Cable Price in Pakistan | SKYRS

The UNITEK CAT6 RJ45 high-performance networking ecosystem delivers flawless, gigabit-speed connectivity for residential, corporate enterprise, and data center environments. Featuring premium engineering with gold-plated contacts and innovative design architectures, these components guarantee maximum throughput, minimal crosstalk, and ultra-high reliability across all Pakistan-based structural deployments.

Technical Specifications and Variants

Variant 1: UNITEK CAT6 RJ45 Pass-Through Connectors (Model: OT1091A / OT1091ATP01)

Designed for custom-length cables with a pass-through design that allows individual conductors to slide completely through the front of the plug for visual alignment checks before crimping.

• Material: Premium Clear Polycarbonate Housing (Nylon PA66)

• Pin Contacts: 3-Point Staggered Design, Gold-Plated 8P8C

  Performance Bandwidth: Up to 1000 MHz (Cat6 Compliance)

• Data Transmission Rate: Up to 10 Gbps / 1000 Mbps

• Wire Compatibility: 23 AWG to 26 AWG (Solid and Stranded Round or Flat Copper Cables)

• Certifications: UL E239590 Safety Standards, RoHS, REACH Compliant

• Packaging: Bulk packs of 50 or 100 pieces

Variant 2: UNITEK CAT6 RJ45 Standard Modular Plugs (Model: Y-OT19TP)

Traditional closed-end modular plugs engineered for clean, tight terminations in structured patch cord assembly.

• Material: Sturdy Transparent Polycarbonate

• Pin Contacts: 3-Point Staggered Design, 1-micron Gold-Plating

• Performance Bandwidth: 250 MHz

• Data Transmission Rate: 1000 Mbps (1 Gbps)

• Packaging: Bulk packs of 100 pieces

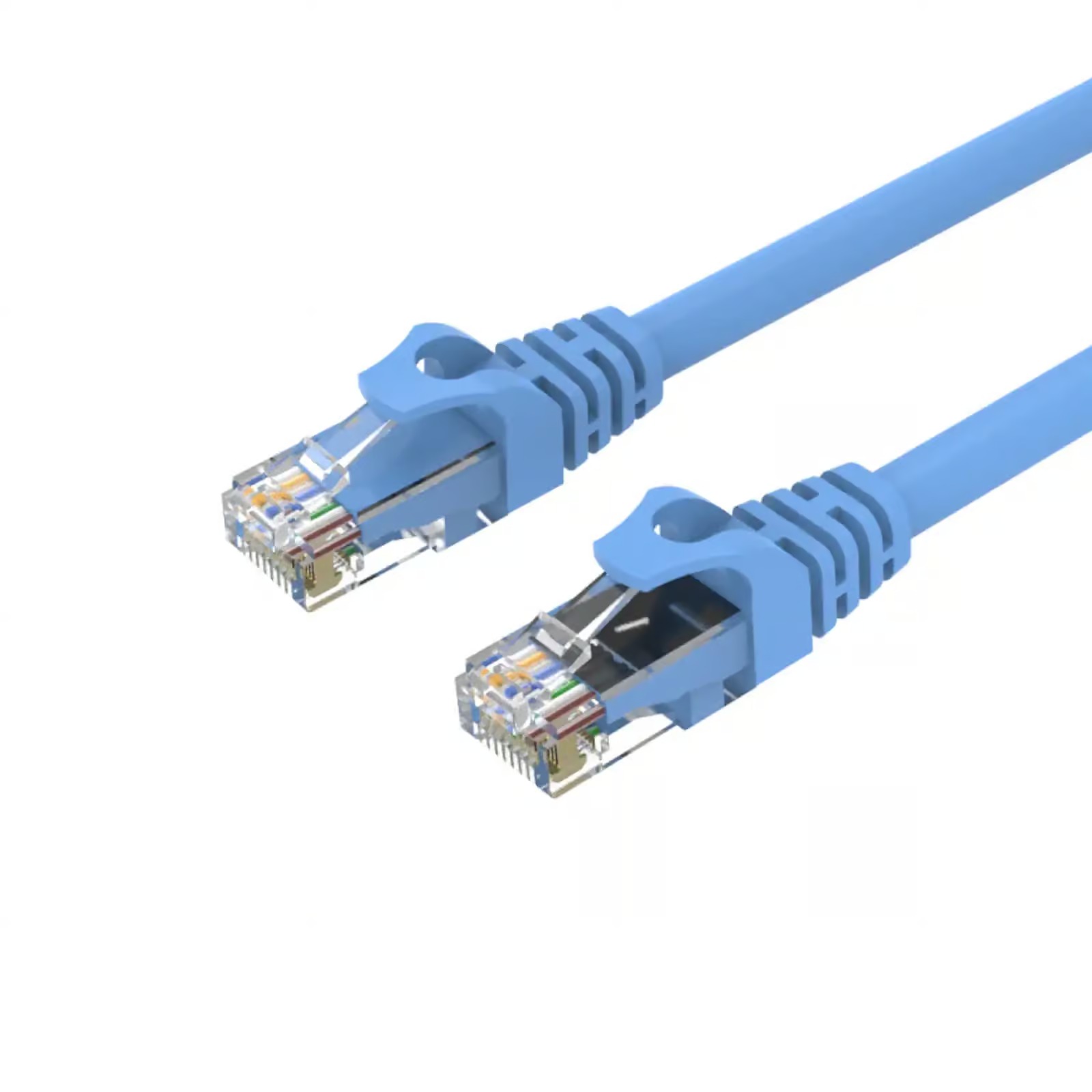

Variant 3: UNITEK CAT6 UTP Patch Cables (Model Series: Y-C809ABL to Y-C815ABL)

Pre-terminated, factory-molded patch cords featuring snagless boots for plug-and-play network deployment.

• Cable Architecture: Unshielded Twisted Pair (UTP), Bare Copper Conductors

• Outer Diameter (OD): 6.0mm Round Profile

• Connector Plugs: 24K Gold-Plated RJ45 terminations

• Transmission Profiles: 1000 Mbps (1 Gbps) at 250 MHz Bandwidth

• Available Length Variants: 1 Meter, 2 Meters, 3 Meters, 5 Meters, 10 Meters, 15 Meters, 20 Meters

• Color Profile: High-visibility Networking Blue

Variant 4: UNITEK CAT6 Ultra-Slim Flat Cables (Model: C1809GBK)

Sleek, low-profile cabling engineered for discreet routing underneath carpets, baseboards, or along tight structural walls.

• Dimensions: Ultra-slim 6.0mm x 1.8mm profile

• Outer Jacket: Highly flexible, durable PVC

• Test Certification: Fluke Networks Tested and Verified

• Available Length Variants: 1M up to 20M variants (Black)

Variant 5: UNITEK CAT6 STP RJ45 Extension Cables (Model: C1896BK)

Shielded extensions serving as an “Ethernet Port Saver” to reduce stress and wear on integrated hardware ports while extending hardware reach.

• Cable Architecture: Shielded Twisted Pair (STP) for superior EMI/RFI reduction

• Distance Variants: 2 Meters and 5 Meters

• Transmission Speed: 1 Gbps at 250 MHz

Deployment, Installation, and Configuration

Deployment Prep

1. Environmental Routing: Layout your path. Standard round UTP cables should be run through PVC conduits or cable trays. Use the 1.8mm Ultra-Slim Flat Variant behind baseboards or beneath carpet tiles to preserve aesthetics without pinching.

2. Wire Mapping Setup: Determine your localization standard. Most corporate architectures deployed via SKYRS utilize the TIA/EIA 568B pinning standard (Orange-White, Orange, Green-White, Blue, Blue-White, Green, Brown-White, Brown).

Physical Installation (For OT1091A Pass-Through Connectors)

1. Cable Stripping: Use a standard jacket stripper to remove 3cm to 4cm of the outer PVC sleeve from the CAT6 cable, taking care not to nick the inner copper twisted pairs.

2. Separation: Snip out the internal spline (plastic cross separator if present) and untwist the four pairs completely. Flatten the individual wires sequentially using fingers or a small tool.

3. Alignment and Insertion: Line up the wires cleanly to match the T568B color scheme. Trim the wire tips at a uniform straight angle, then push the wires smoothly into the back of the transparent UNITEK Pass-Through plug until they protrude from the front end.

4. Visual QC: Look directly through the clear casing to verify the correct sequence before locking it in.

5. Crimping: Insert the plug into an RJ45 Pass-Through crimping tool. Squeeze firmly; the tool will simultaneously seat the gold-plated pins into the wires, lock the rear cable clamp, and shear off the excess protruding wire flush with the tip.

Hardware Configuration

1. Infrastructure Interconnection: Insert the terminated UNITEK RJ45 plug directly into network interfaces, including patch panels, wall-mounted keystone jacks, network switches, corporate routers, or end-user workstations.

2. Connection Verification: Listen for an audible “click” ensuring the locking clip has engaged with the receiving port.

3. Network Validation: Test signal integrity utilizing a Fluke network analyzer or standard continuity testing tool to ensure zero cross-talk, solid ground (if using STP extensions), and full gigabit negotiation capability.
