UNITEK Active HDMI Fiber Cable Price in Pakistan | skyrs.com.pk

Long-Distance High-Fidelity Transmission for Professional AV Integration

The UNITEK Active HDMI series is specifically engineered to overcome the physical limitations of standard copper cables. By incorporating built-in signal amplification chipsets or utilizing advanced Fiber Optic technology, these cables maintain 100% signal integrity over distances where traditional cables would fail. This series is the industry standard for large-scale deployments in Pakistan, ranging from corporate boardrooms to high-end home cinemas.

Product Variants and Technical Specifications

UNITEK categorizes its Active HDMI solutions into two primary tiers based on the transmission medium and distance requirements:

Deployment and Installation

Because Active HDMI cables contain electronic components, they require specific handling compared to passive cables.

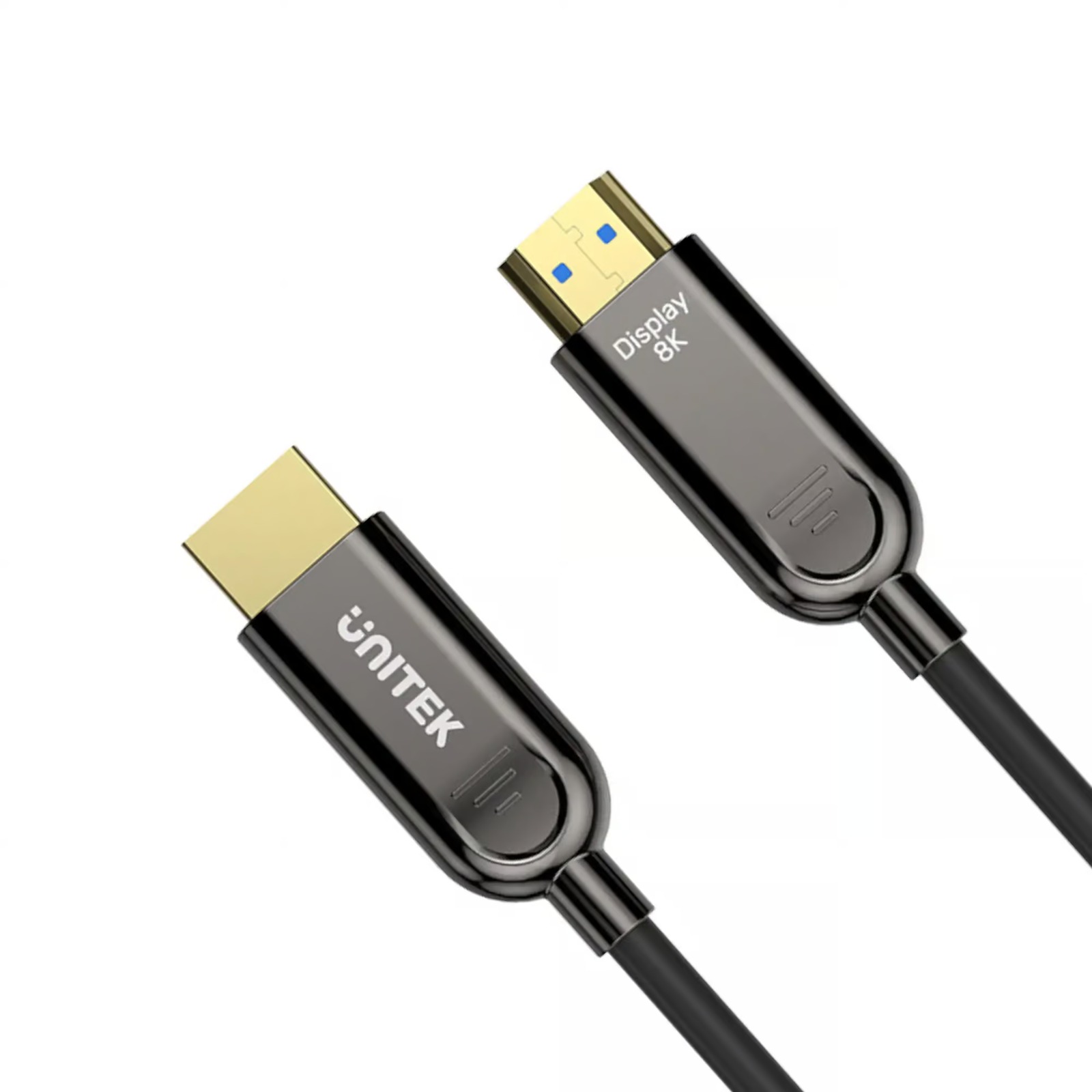

1. Critical Directionality Every UNITEK Active cable is Unidirectional. One end is marked “Source” (Input) and must be connected to the PC, NVR, or Media Player. The other end is marked “Display” (Output) and must be connected to the TV, Projector, or Monitor. If installed in reverse, the cable will not transmit a signal.

2. Physical Integration

• Active Copper: Due to the internal amplification chipset, the connector heads are slightly longer than standard cables. Ensure there is enough clearance behind wall-mounted displays.

• Fiber Optic (AOC): These cables are significantly thinner and lighter, making them ideal for pulling through narrow conduits. However, care must be taken not to exceed the minimum bend radius to avoid fracturing the internal glass fibers.

3. External Power While most UNITEK Active cables draw sufficient power from the HDMI port, some ultra-long copper variants (30M+) may include a USB pigtail at the display end to provide additional voltage to the amplification chip if the source output is weak.

Configuration and Optimization

To ensure the best performance in professional Pakistani environments:

• Handshake Synchronization: If the display fails to sync, power cycle the source device after the cable is connected to allow the active chipset to negotiate the EDID handshake.

• EMI Immunity: The Fiber Optic (AOC) variants are completely immune to Electromagnetic Interference. SKYRS recommends these for installations running alongside high-voltage power lines or within server racks.

• Refresh Rate Settings: For the 8K/4K@120Hz Fiber variants, ensure the source GPU and the display firmware are updated to support HDMI 2.1 features like VRR (Variable Refresh Rate) and ALLM (Auto Low Latency Mode).

Exclusive Availability at SKYRS Pakistan

SKYRS is the authorized distributor and technical partner for UNITEK’s Active AV solutions in Pakistan. Choosing SKYRS for your project procurement offers exclusive advantages:

• Verified Long-Range Inventory: SKYRS maintains ready stock of extreme-length Fiber Optic cables (up to 100 meters) that are rarely available in the general retail market.

• Pre-Installation Testing: For large-scale projects, SKYRS technicians offer signal validation services, ensuring the active chipsets are fully compatible with your specific hardware stack before onsite deployment.

• Architectural Support: SKYRS provides consultation for architects and MEP consultants on conduit sizing and pull-strength specifications for UNITEK Fiber Optic HDMI.

• Official Warranty: All Active HDMI units sold by SKYRS are covered by a localized replacement warranty, ensuring your investment is protected against chipset failure or signal degradation.

Technical Advice: For any run exceeding 20 meters in a mission-critical environment, SKYRS highly recommends the Fiber Optic (AOC) variant over Active Copper to ensure zero-latency and future-proof 8K compatibility.
