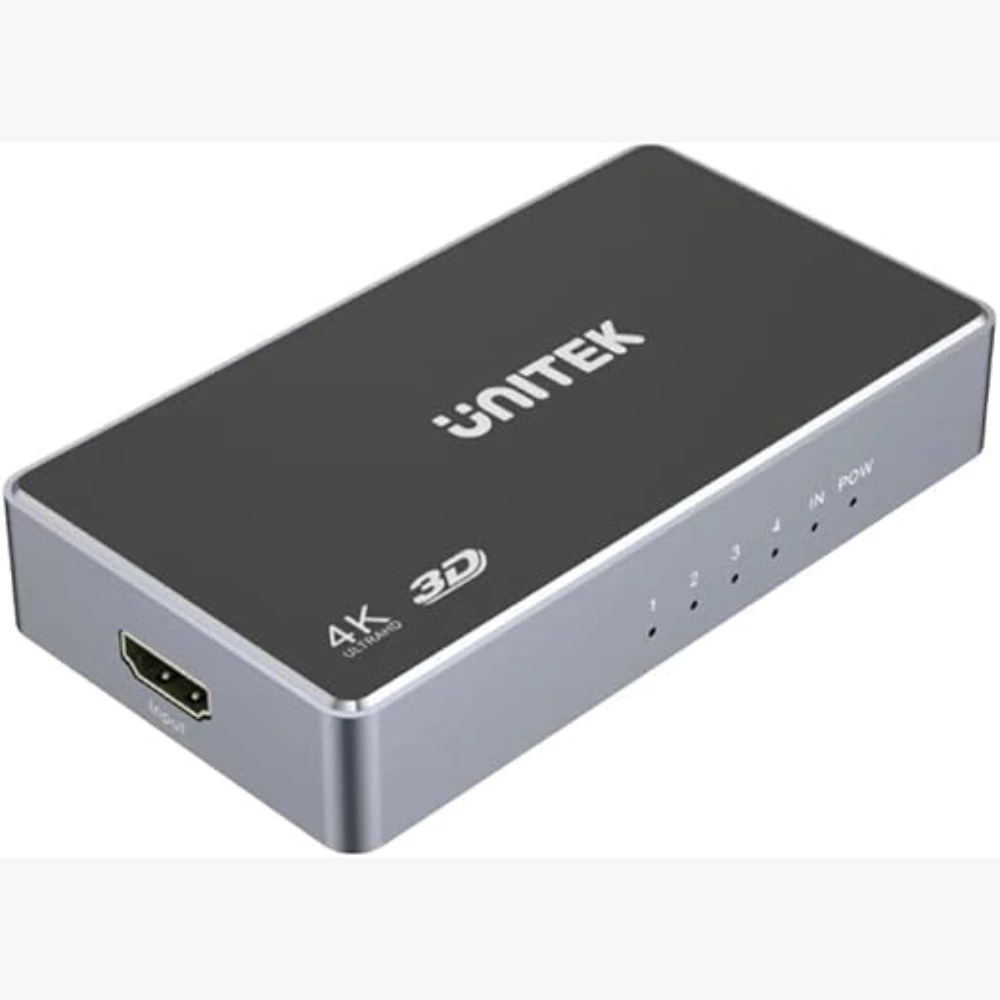

The UNITEK HDMI 1×4 Splitter is a high-performance distribution hub designed to take a single HDMI source—such as a media player, gaming console, or PC—and duplicate it across four separate displays simultaneously. This device maintains signal integrity across all outputs, ensuring synchronized audio and video without lag or quality loss.
Technical Specifications
| Feature |
Details |
| Input Port |
1 x HDMI (Female) |
| Output Ports |
4 x HDMI (Female) |
| Max Resolution |
4K @ 60Hz (Ultra HD) / 1080P @ 120Hz |
| HDCP Version |
HDCP 2.2 Compatible |
| Audio Support |
Dolby TrueHD, DTS-HD Master Audio, LPCM 7.1 |
| Power Supply |
5V DC (USB or Wall Adapter included) |
| Housing |
Heat-Dissipating Aluminum Alloy |
Available Variants at SKYRS
SKYRS stocks both the standard and professional-grade UNITEK splitters to match specific resolution requirements for the Pakistani market:
-
Standard 4K Variant: Supports HDMI 2.0 and 4K @ 60Hz. Ideal for retail showrooms and sports bars.
-
Pro 8K Variant: Supports HDMI 2.1 and 8K @ 60Hz / 4K @ 120Hz. Designed for high-end gaming lounges and advanced surveillance rooms.
-
Built-in Scaler Variant: Features an intelligent chipset that can output 4K to one monitor and 1080P to another simultaneously without downgrading the entire system.
Deployment and Installation
Setting up the UNITEK 1×4 Splitter is straightforward and requires no technical expertise:
-
Source Connection: Connect an HDMI cable from your source device (NVR, Laptop, Satellite Box) to the “Input” port of the splitter.
-
Display Connection: Connect up to four HDMI cables from the “Output” ports (1 through 4) to your monitors, TVs, or projectors.
-
Power Activation: Connect the provided 5V power adapter to the DC port. The Power LED will illuminate, indicating the device is active.
-
Signal Sync: The splitter will automatically perform a “handshake” with the connected displays. For best results, ensure all output cables are of similar length and quality.
Configuration and Availability
EDID Management:
Most UNITEK variants at SKYRS feature an automatic EDID (Extended Display Identification Data) management system. This ensures that the source device outputs a resolution that is compatible with all four connected screens. If you use displays with different resolutions, the splitter will intelligently default to the highest common denominator to ensure all screens show an image.
Exclusive Availability:
The genuine UNITEK 1×4 Splitter series, including the advanced aluminum-housed variants with surge protection, is available in Pakistan exclusively through SKYRS.
Service Note: SKYRS provides full after-sales technical support for large-scale deployments (such as digital signage for malls or corporate offices). Authenticity is guaranteed only for units purchased directly through the SKYRS retail or online portal, backed by a local replacement warranty.
