UniFi Pro Max 24 PoE Switch
UniFi Pro Max 24 PoE Switch - Image 2

UniFi Pro Max 24 PoE Switch

A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.





Description

  • Installation Guide

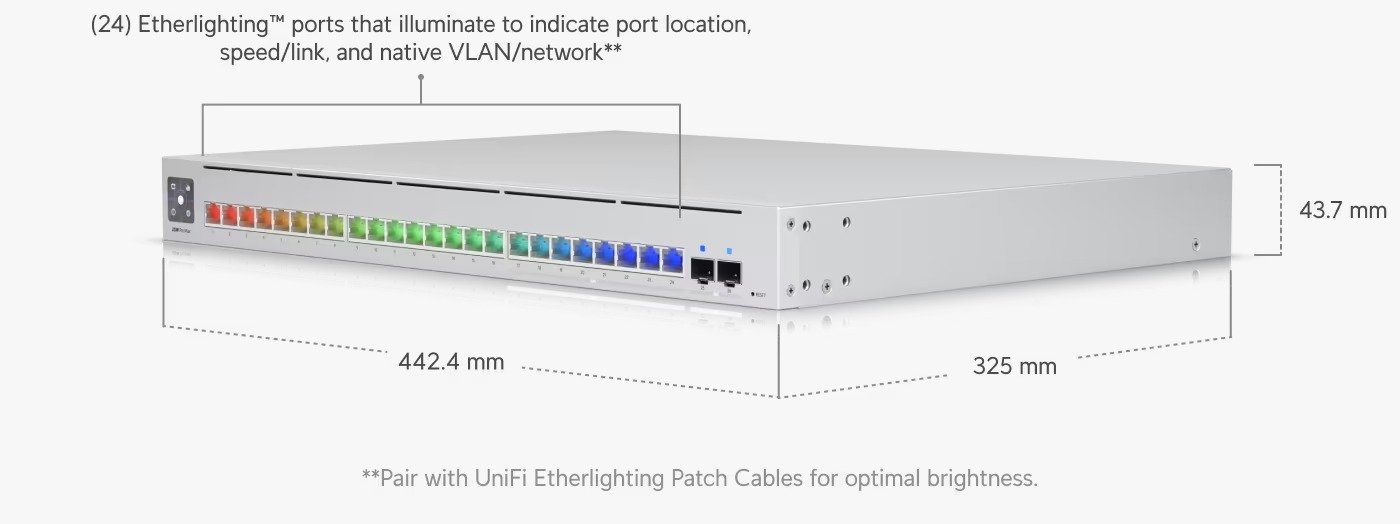

    Dimensions
    442 x 325 x 44 mm (17.4 x 12.8 x 1.7″)
    Port Layout
    1 GbE RJ45
    16 (8 PoE+; 8 PoE++) (1G/100M/10M)
    2.5 GbE RJ45
    8 (All PoE++) (2.5G/1G/100M/10M)
    10G SFP+
    2 (10G/1G)
    Max. PoE Output
    Up to PoE++
    Total PoE Availability
    400W
    Redundancy
    DC Power Backup
    Layer 3
    ✓
    Form Factor
    Rack mount (1U)
    Etherlighting™
    ✓

    Switching Capacity
    112 Gbps
    Total Non-Blocking Throughput
    56 Gbps
    Forwarding Rate
    83 Mpps
    Supported VLANs
    1,000
    MAC Address Table Size
    16,000
    L3 Table Size
    ARP Entries
    6,000
    Packet Buffer Size
    1.5 MB
    Access Lists
    IPv4
    128
    MAC
    128

    DHCP Server (Local Networks)
    ✓
    DHCP Relay
    ✓
    Inter-VLAN Routing (Local Networks)
    ✓
    Static Routing (Local Networks)
    ✓

    LACP Port Aggregation
    ✓
    STP & RSTP
    ✓
    QoS (DSCP)
    ✓
    Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
    ✓
    Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
    ✓
    IGMP Snooping
    ✓
    802.1X Control
    ✓
    MAC-Based ACLs & Device Isolation
    ✓
    DHCP Snooping & Guarding
    ✓
    Egress Rate Limit
    ✓
    Flow Control
    ✓
    Storm Control
    ✓
    Multicast & Broadcast Rate Limiting
    ✓
    MAC Address Blocking
    ✓
    IP-Based ACLs & Network Isolation
    ✓
    MAC-Based Port Restriction
    ✓
    Port Isolation
    ✓
    Port Mirroring
    ✓
    Jumbo Frames
    ✓
    LLDP-MED
    ✓
    Voice VLAN
    ✓
    Loop Protection
    ✓

    PoE Ports
    PoE+
    8
    PoE++
    16
    Max. PoE Wattage per Port by PSE
    PoE
    15.4W
    PoE+
    32W
    PoE++
    64W
    Max. Power Consumption
    50W (Excluding PoE Output) 450W (Including PoE Output)
    Power Method
    (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
    Power Input Method
    AC input
    Power Supply
    AC/DC, internal, 550W
    Supported Voltage Range
    100—240V AC
    Management
    Ethernet AR
    Heat Dissipation
    119 BTU/hr (Excluding PoE Output)
    Weight
    Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb)
    Enclosure Material
    SGCC steel
    Mount Material
    SGCC steel
    Supported Rack Depth
    400~1200 mm (15.7-47.2″)
    LCM Display
    1.3″ touchscreen
    Ambient Operating Temperature
    -5 to 40° C (23 to 104° F)
    Ambient Operating Humidity
    10 to 90% noncondensing
    Etherlighting™
    Ethernet
    ✓
    SFP+
    ✓
    NDAA Compliant
    ✓
    Certifications
    CE, FCC, IC, Anatel: 06374-24-08356

    Application Requirements
    UniFi Network
    Version 8.0.24 and later
