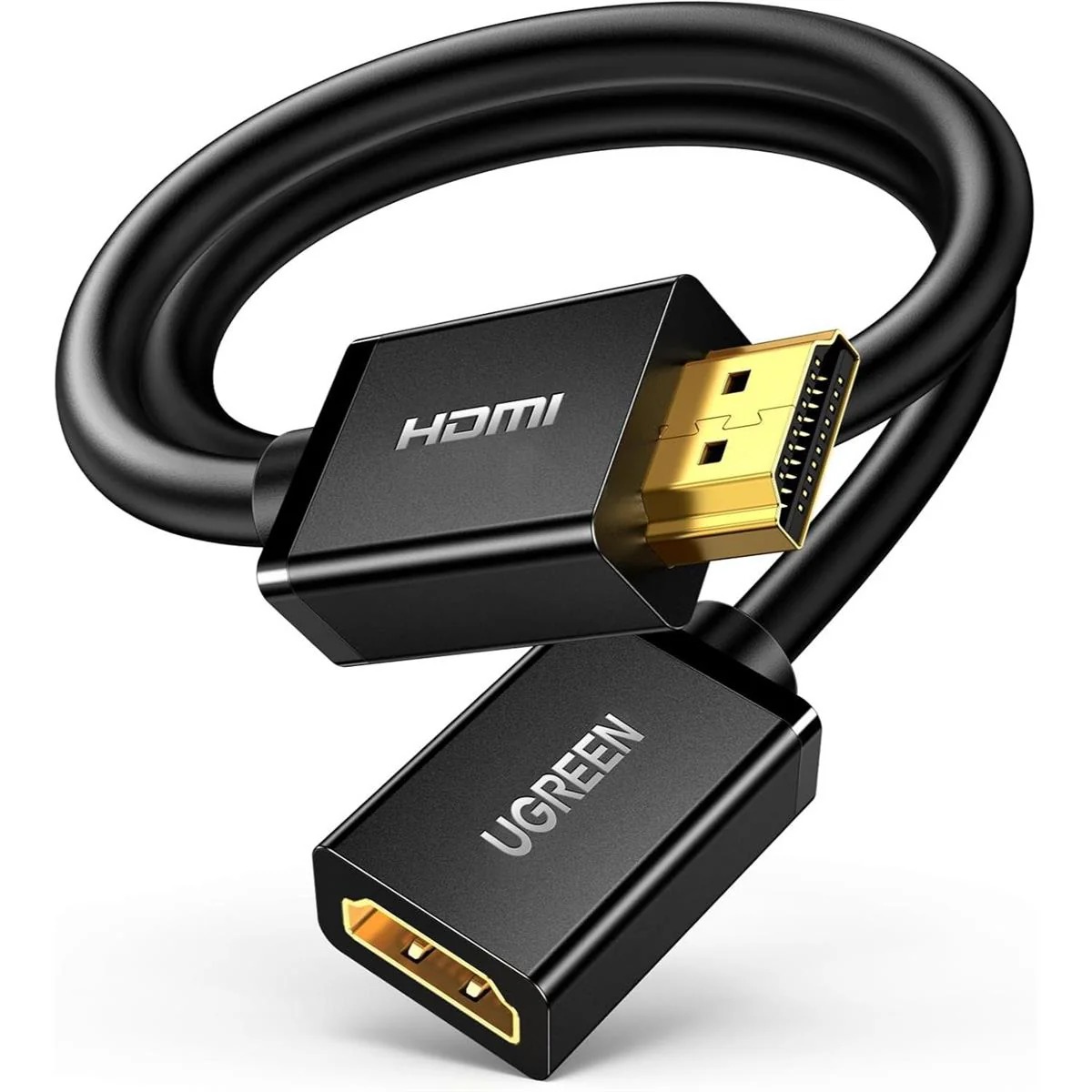

The UGREEN 10146 is the maximum-reach extension solution in the HD107 series, offering a 5-meter span. It is designed to overcome the logistical challenges of distant HDMI ports while maintaining high-definition signal integrity. In Pakistan, this model and its shorter counterparts are provided with specialized support through SKYRS.
Technical Specifications
Model SKU: 10146 (Part of the HD107 Series)
Length: 5 Meters (16.4 Feet)
Connector Type: HDMI Male to HDMI Female
Standard: HDMI 2.0 (High Speed with Ethernet)
Resolution Support: 4K Ultra HD (3840 x 2160) and 1080p Full HD
Refresh Rate: 4K @ 30Hz (at full 5m length) / 4K @ 60Hz (when total link is ≤3m)
Bandwidth: Up to 18Gbps
Wire Gauge: 26AWG – 28AWG (Project-dependent tinned copper)
Shielding: Triple-layer shielding (Aluminum foil + Mylar + Braid)
Durability: 24K Gold-plated connectors with reinforced PVC strain relief
Key Performance Features
ARC & HEC: Full support for Audio Return Channel and HDMI Ethernet Channel.
HDR & 3D: Compatible with High Dynamic Range and 3D video content.
Extended Reach: Specifically designed for large rooms where the source and display are significantly separated.
The UGREEN 10146 is a utility extension cable primarily used for accessibility and infrastructure. For effective deployment in Pakistani corporate and residential settings:
Port Maintenance: Permanently connect the 10146 to the back of wall-mounted or ceiling-hung displays. This allows the female end to be accessible for frequent user connections, protecting the display’s primary HDMI port from mechanical failure.
Distance Limitations: To ensure 4K @ 60Hz stability, the total combined length of the extension and the male-to-male cable should not exceed 3 meters. For the full 5-meter extension, the system typically defaults to 4K @ 30Hz or 1080p @ 60Hz.
Cable Management: Due to the 5m length and thicker gauge, use cable clips or trunking to prevent the cable from hanging by its own weight, which can stress the connectors over time.
Signal Testing: Always verify the signal path with your specific source (e.g., NVR or Laptop) and the display before sealing the cable behind walls or inside ceiling conduits.
The 10146 is a passive, plug-and-play hardware component.
Zero Configuration: No software, drivers, or external power are required.
Display Settings: For 5-meter runs, ensure the display refresh rate is set to 30Hz if using 4K to guarantee a flicker-free “handshake.”
Audio Setup: Automatically passes through 7.1 and 5.1 surround sound formats to connected AV receivers.
In Pakistan, SKYRS acts as the dedicated procurement partner for the UGREEN 10146 series, ensuring the highest standards of hardware authenticity.
The HD107 Series Family at SKYRS:
10140: 0.5 Meter
10141: 1 Meter
10142: 2 Meters
10145: 3 Meters
10146: 5 Meters
Guaranteed Build: SKYRS verifies the tinned oxygen-free copper core in all 10146 units, which is essential for signal stability at 5 meters—a common failure point for cheaper, non-genuine alternatives.
Nationwide Distribution: Available for immediate shipping and localized warranty support in Karachi, Lahore, Islamabad, and other major cities.
