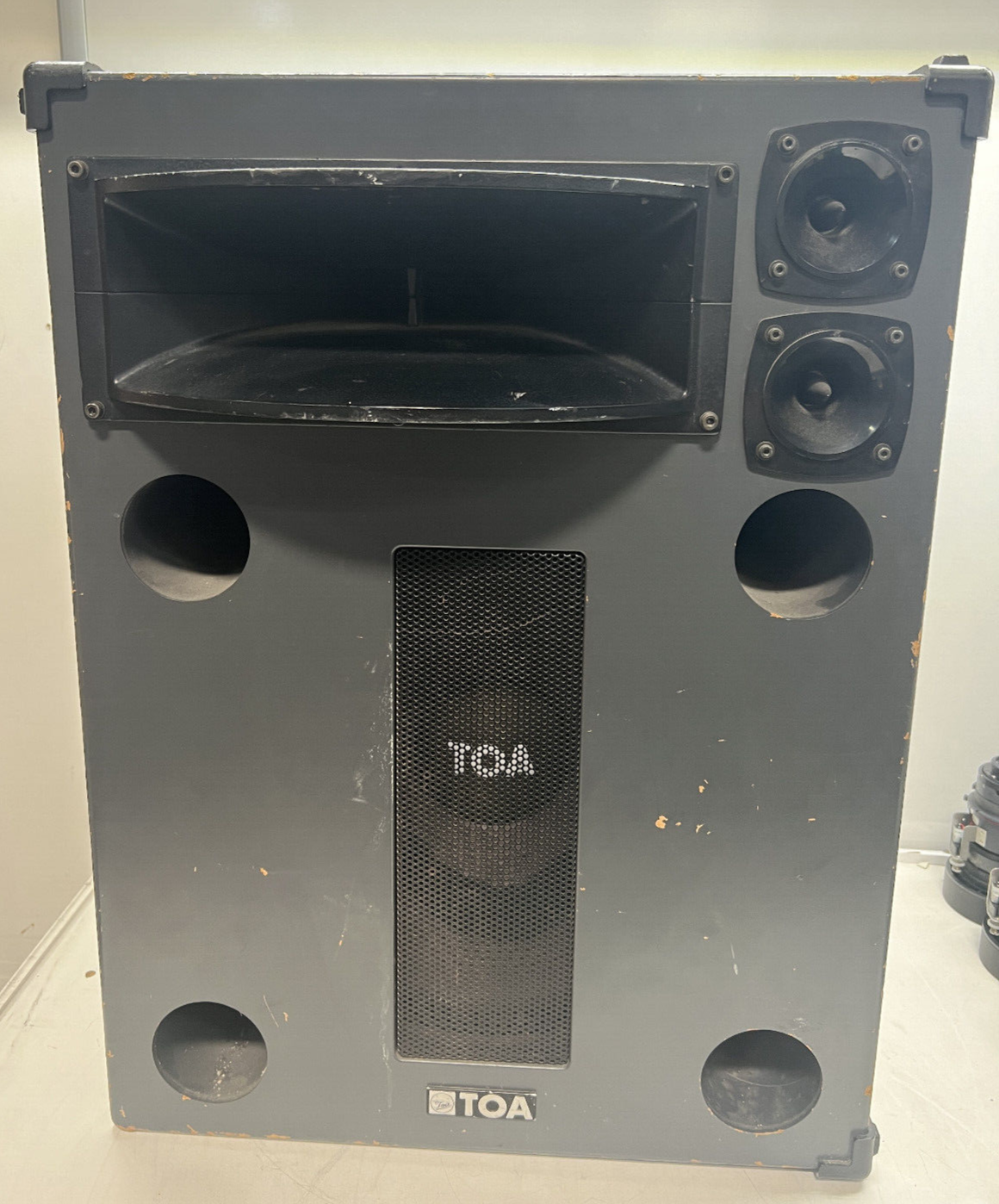

30-SDM / 38-SDM Speaker Datasheet
This datasheet outlines the technical specifications, product variants, and deployment frameworks for the 30-SDM and 38-SDM 3-Way High-Performance Studio Monitors, distributed and integrated exclusively by SKYRS Pakistan.
Product Overview
The 30-SDM and 38-SDM are premium, 3-way professional studio monitors engineered specifically for critical listening, audio-visual editing suites, and high-fidelity multi-zone broadcast environments. Incorporating integrated mid-high waveguides and advanced magnetic shielding, these speakers deliver pinpoint stereo imaging and an exceptionally flat frequency response over long operational shifts.
Technical Specifications
Models: 30-SDM (Nearfield Reference) / 38-SDM (Midfield/Extended Reference)
System Type: 3-Way Passive Reference Monitor
Driver Array:
High Frequency (HF): 1-inch silk dome tweeter mounted to a low-diffraction waveguide
Mid Frequency (MF): 3.5-inch woven fiberglass mid-range transducer
Low Frequency (LF): 5.5-inch mineral-filled polypropylene woofer (30-SDM) / 6.75-inch high-excursion thermo-molded woofer (38-SDM)
Frequency Response: Precision-tuned linear translation with low harmonic distortion
Impedance: 4 Ohms / 8 Ohms auto-compatible matching network
Enclosure: Internally braced acoustic MDF with dual front-firing bass reflex ports
Shielding: Full magnetic shielding for interference-free proximity to sensitive broadcast hardware
Available Variants at SKYRS Pakistan
SKYRS builds and custom-tunes three application-specific variants of the 30-SDM and 38-SDM models to accommodate diverse enterprise audio spaces:
30-SDM-ST / 38-SDM-ST (Standard Reference) Finished in a scuff-resistant matte black acoustic laminate. Features pre-installed underside mechanical decoupling threads, designed for desktop bridge placement and console meter mounts.
30-SDM-CI / 38-SDM-CI (Custom Integrated) Housed in a paintable satin-white cabinet with a magnetic fabric grille. Features dual OmniMount rear mounting patterns for architectural wall or ceiling suspension in luxury commercial environments.
30-SDM-RM / 38-SDM-RM (Rackmount Broadcast) Built with structural front rack ears for direct deployment into standard 19-inch equipment racks. This version includes rear-facing barrier strips and optimized heat-dissipation pathways for tightly packed broadcast environments.
Deployment and Installation Services
Complete physical deployment, secure structural mounting, and cable distribution are managed nationwide across Pakistan exclusively by certified SKYRS field technicians.
Mounting Formats
Nearfield Console Alignment: Isolation-decoupled placement utilizing high-density acoustic foam or structural decoupling table stands to prevent mechanical resonance transfer.
Wall and Ceiling Rigging: Secure suspension via heavy-duty multi-angle brackets anchored directly to concrete pillars or structural framing elements.
OB Van / Rack Integration: Slide-lock rack deployment inside mobile broadcasting vehicles or central server rooms using integrated 19-inch mounting systems.
Signal Distribution Setup
Shielded Infrastructure: Layout and routing of low-capacitance, thick-gauge oxygen-free copper lines to maintain signal purity over extended path lengths.
Termination Matrix: Clean connection terminations using gold-plated banana plugs, heavy-duty spade lugs, or secure barrier strips to reduce terminal resistance.
Configuration and Availability
Acoustic tuning, environmental calibration, and post-installation monitoring are available strictly through SKYRS technical services. No third-party configuration or maintenance is authorized.
Calibration Parameters Handled by SKYRS:
Nearfield Acoustic Alignment: Laser-guided angular adjustment (toe-in and vertical tilt) to optimize the listening sweet spot relative to the sound engineer’s console position.
Proximity Boundary Correction: Tuning hardware parametric filters or external DSP profiles to neutralize low-frequency mud caused by wall or desk boundary loading.
Phase and Delay Mapping: Synchronizing the arrival times between the 30-SDM/38-SDM monitors and dedicated low-frequency subwoofers across the space using real-time audio analysis equipment.
For high-end studio projects, bulk procurement, or to schedule an installation pipeline within Pakistan, contact the SKYRS professional audio integration department directly.
