20RTH LCD Monitor Datasheet
This datasheet details the technical specifications, product variants, and engineering deployment frameworks for the high-resolution 20RTH LCD Monitor, available and supported exclusively by SKYRS in Pakistan.
Product Overview

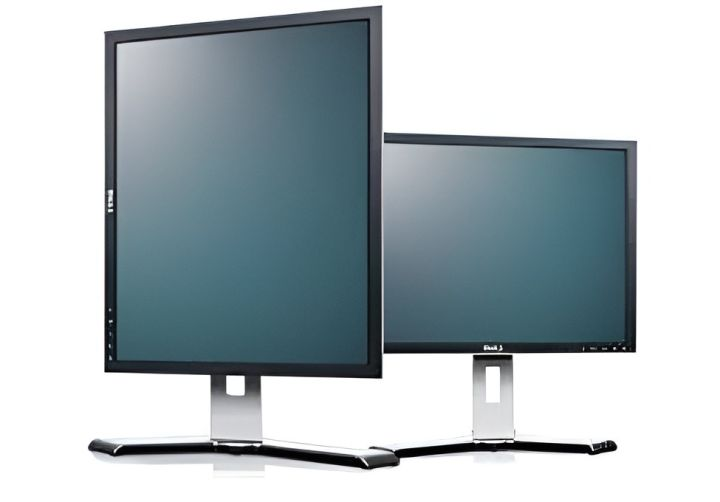

The 20RTH is a premium, high-density 20-inch Active Matrix TFT display designed for critical viewing environments requiring exceptional pixel clarity alongside versatile analog and digital interface support. Featuring a native UXGA resolution and dual audio looping capabilities, it is built for specialized medical imaging, precision broadcast monitoring, and advanced command centers.
Technical Specifications
Display Size: 20 inches diagonal
Panel Technology: High-Density Active Matrix TFT LCD
Native Resolution: 1600 x 1200 pixels (UXGA)
Aspect Ratio: 4:3 Standard Aspect Ratio
Video Connectivity:
2 x BNC Video Inputs (Composite Video)
1 x S-Video Input
1 x VGA Input (High-Density D-Sub)
Audio Connectivity:
2 x RCA Audio Inputs
1 x RCA Audio Output (Pass-Through Loop)
1 x PC Stereo Input (3.5mm Jack)
Available Variants at SKYRS Pakistan
SKYRS supplies the 20RTH in three unique hardware variations tailored for specialized enterprise demands across Pakistan:
20RTH-Standard Professional (20RTH-PRO) Housed in an ergonomic, low-bezel desktop enclosure with a fully adjustable height and tilt stand. Ideal for engineering workstations, diagnostic desks, and main control rooms.
20RTH-Console Mount (20RTH-CM) Featuring an open-frame design with front and side mounting brackets. This version is designed for seamless, flush integration into customized security consoles, aerospace desks, and simulator cockpits.
20RTH-Medical Grade (20RTH-MED) Equipped with an easy-clean antimicrobial outer casing and an anti-reflective protective glass layer. Optimized for medical carts, observation theaters, and laboratory environments.
Deployment and Installation Services
Complete physical deployment, structural mounting, and signal routing are managed natively by SKYRS technical teams to guarantee structural integrity and zero signal loss:
Structural Mounting: Custom implementation using heavy-duty VESA wall systems, articulated ceiling mounts, or flush console drop-in installations.
High-Resolution Signal Patching: Specialized coaxial and VGA routing engineered to preserve the high 1600×1200 pixel density over extended distances without ghosting or signal degradation.
Sound Loop Integration: Mapping the RCA Audio inputs and pass-through outputs to synchronize video feeds directly with centralized multi-channel recording setups or intercom stations.
Configuration and Availability
Advanced configuration, pixel-mapping calibration, and maintenance networks are available exclusively through SKYRS. No external or third-party service authorization is provided.
Engineering Adjustments Provided by SKYRS:
Pixel-to-Pixel Mapping: Fine-tuning scaling algorithms to display legacy low-resolution analog feeds (BNC/S-Video) side-by-side or scaled precisely onto the sharp 1600×1200 grid.
Signal Frequency Alignment: Professional calibration of the phase, clock, and sync timings on the VGA channel to ensure razor-sharp text and image stability.
Output Level Matching: Adjusting internal audio gain levels for the RCA input/output loop to balance audio signal strengths across multi-monitor arrays.
To request a commercial quote, evaluate a localized system setup, or arrange a deployment contract within Pakistan, contact the SKYRS corporate office directly.
