17RTV LCD Monitor Datasheet

This datasheet outlines the technical specifications, product variants, and deployment protocols for the 17RTV LCD Monitor, distributed nationwide exclusively through SKYRS Pakistan.

Product Overview

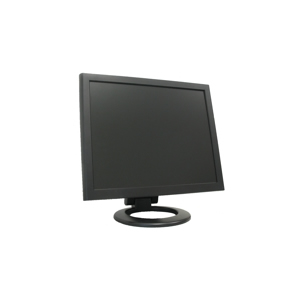

The 17RTV is a high-performance, compact 17-inch display solution engineered specifically for professional surveillance (CCTV), video legacy routing, and multi-format commercial displays. Featuring an Active Matrix TFT panel and high-density legacy video connectivity options, it provides precise pixel clarity and multi-source input support.

Technical Specifications

  • Display Size: 17 inches diagonal

  • Panel Type: Active Matrix TFT LCD

  • Native Resolution: 1280 x 1024 pixels

  • Aspect Ratio: 5:4 (Standard Square Display)

  • Video Inputs:

    • 2 x BNC Composite Video Inputs

    • 1 x S-Video Input

    • 1 x VGA (D-Sub) Input

  • Audio Inputs:

    • 2 x RCA Stereo Audio Inputs

    • 1 x PC Stereo 3.5mm Jack Input

  • Control Interface: Dedicated Infrared (IR) Remote Control Included

Available Variants at SKYRS Pakistan

To accommodate specific industrial and commercial requirements across Karachi, Lahore, Islamabad, Faisalabad, Quetta, and Peshawar, SKYRS offers the 17RTV in three distinct hardware configurations:

  1. 17RTV-Standard (17RTV-ST) Optimized for classic CCTV control rooms. Features standard durable plastic casing, VESA wall-mount ready interface, and full analog array connectivity.

  2. 17RTV-Rackmount (17RTV-RM) Engineered for server rooms and broadcasting racks. Features a ruggedized 19-inch rack-mountable chassis layout (occupying 7U to 8U space) with front-facing status buttons.

  3. 17RTV-Chassis Industrial (17RTV-IND) Built for harsh operating environments. Comes wrapped in a heavy-duty, dust-resistant metallic casing with upgraded thermal dissipation vents for continuous 24/7 industrial operations.

Deployment and Installation Service

SKYRS provides complete, end-to-end deployment services executed by certified field technicians across Pakistan.

Mounting Configurations

  • Desktop Setup: Installation using the balanced heavy-duty anti-slip desk stand.

  • Wall/Arm Mounting: Fixed or articulated deployments via integrated VESA standard mounting patterns.

  • Enclosure Integration: Flush mounting options for security console desks or server racks.

Physical Connection Matrix

  • CCTV BNC Setup: Direct coaxial termination from analog camera feeds or multiplexer/DVR monitor outputs using the 2x BNC inputs.

  • High-Density PC Video: Standard VGA routing from computer terminals or network video recorders (NVRs).

  • Dual Stereo Audio Sync: Simultaneous routing of audio signals corresponding to designated video feeds via the PC 3.5mm jack or the dual RCA ports.

Configuration Availability and Support

Configuration and fine-tuning services are exclusively available directly through SKYRS technical teams post-delivery.

Calibration Parameters Included in SKYRS Deployment:

  • Display Profile Matching: Calibration of luminance, aspect ratio preservation, and pixel-to-pixel scaling to prevent signal distortion across 5:4 aspect feeds.

  • Multi-Input Sequence Mapping: Setting up auto-switching or sequential cycle loops via the remote control configuration menu.

  • Sound Alignment: Adjusting independent gains for the RCA and PC audio lines to match local sound systems.

For customized procurement inquiries or to schedule a localized deployment across Pakistan, contact the SKYRS corporate sales division directly.
