DS9808-LR Laser Scanner Mode:
Light Source: 650nm LED
Scan Angle: 40° ±3° nominal
Symbology decodes capability:
1D:
UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/ EAN-13/JAN-8/JAN-13 plus supplemental, ISBN (Book land), ISSN, Coupon Code), Code 39 (Standard, Full ASCII, Trioptic), Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Coda bar/ NW7,Code 11 (Standard, Matrix 2 of 5), MSI Plessey, I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA , Chinese 2 of 5), GS1 Data Bar (Omni directional, Truncated, Stacked, Stacked Omni directional, Limited, Expanded, Expanded Stacked, Inverse), Base 32 (Italian Pharmacode)
PDF417 (and variants):
PDF417 (Standard, Macro), MicroPDF417 (Standard, Macro), Composite Codes (CC-A, CC-B, CC-C)
2D:
TL C-39, Aztec (Standard, Inverse), Maxi Code, Data Matrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro
Postal:
U.S. Postnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, UPU FICS 4 State Postal, USPS 4CB
Minimum resolution:
Code 39 – 4 mil, UPC – 7.8 mil (60%), PDF417 – 5 mil, Datamatrix – 5 mil
Imaging characteristics:
Graphics format support:
Images can be exported as Bitmap, JPEG or TIFF
Image transfer speed:
USB 2.0: Up to 12 Megabits/second RS-232: Up to 115 kb/second
Image transfer time:
Typical USB application is ~0.2 seconds with a compressed JPEG of 100kb
Image quality:
120 DPI on a 4 x 6 in./10.2 x 15.2 cm document @ 6.5 in./16.5 cm
User environment:
Sealing: IP50
Operating Temp: 32° to 104° F /0° to 40° C
Humidity: 5% to 95% RH (Non-Condensing)
Ambient Light Immunity: Incandescent – 150 ft. candles (1,600 Lux) Sunlight – 8,000 ft. candles (86,000 Lux) Fluorescent – 150 ft. candles (1,600 Lux) Mercury Vapor – 150 ft. candles (1,600 Lux) Sodium Vapor – 150 ft. candles (1,600 Lux) Immune to normal or artificial light
Regulatory:
Electrical Safety: UL6950-1, CSA C22.2 No. 60950-1, EN60950-1 / IEC60950-1
Laser Safety: EN 60825-1,IEC 60825-1, 21CFR1040.10, CDRH Class II, IEC Class 2
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, EN 55022, EN 55024 AS/NZS 4268:2008, Japan VCCI
Product Description

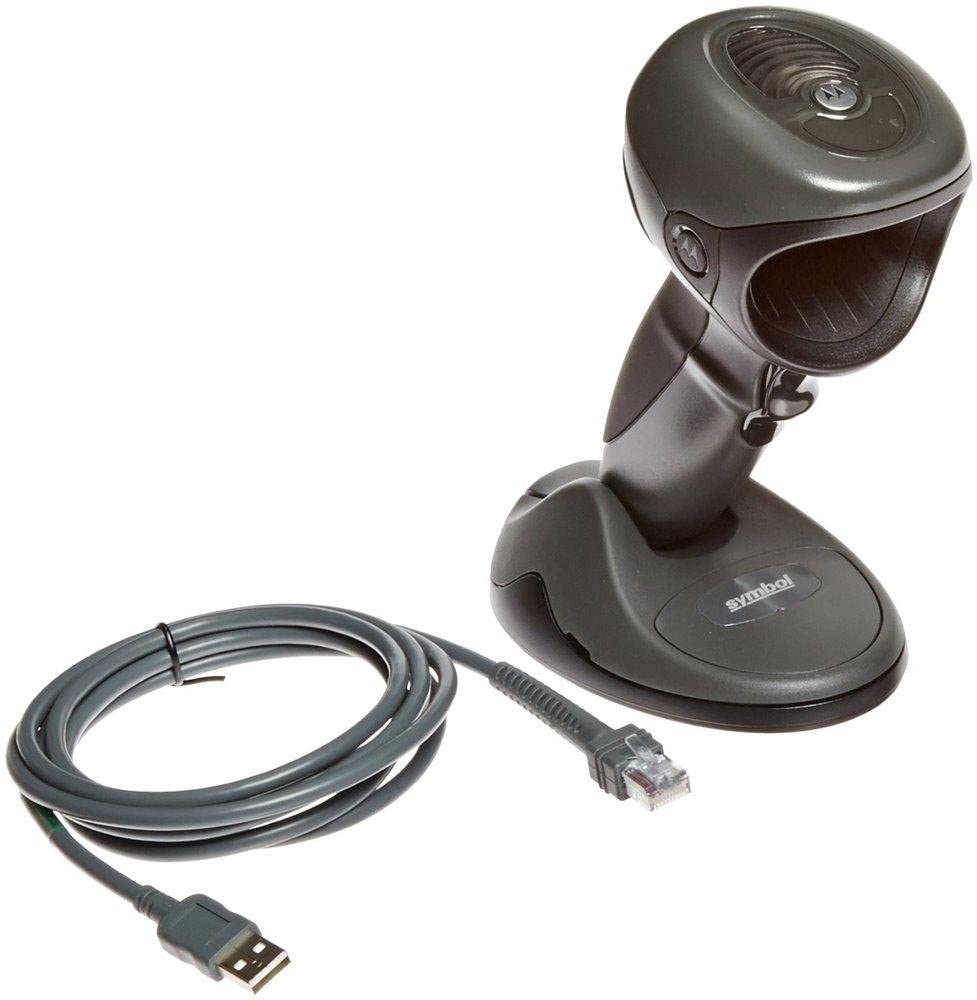

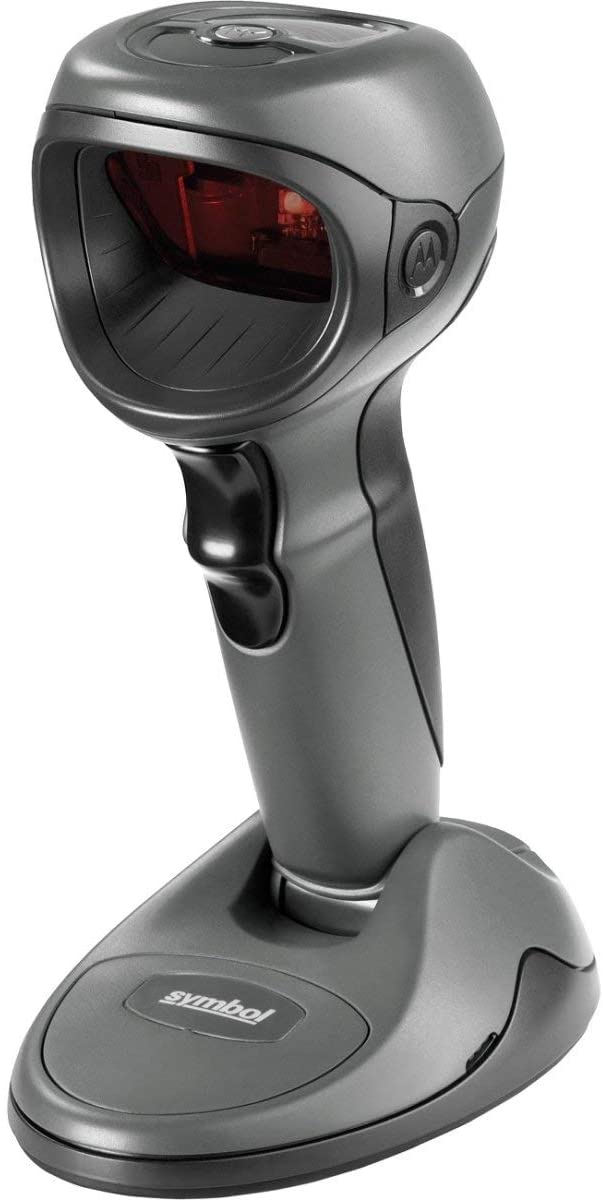

We take pleasure in introducing ourselves as leading firm by offering Motorola DS9808 Barcode Scanner.
Specification:
Physic al characteristics:
Dimensions: 8 in. (max) H x 5.4 in. L x 3.4 in. W 20.3 cm (max) H x 13.7 cm L x 8.6 cm W
Weight: 12 oz. /340 g
Voltage and Current: Maximum: 5 VDC +/- 10% @ 450 mA Maximum (with optional RFID module*): 5 VDC +/- 10% @ 1.2
Color: Twilight Black
Performance characteristics:
DS9808-SR and DS9808-LR Imager Mode:
Light Source: Aiming Pattern: 650nm laser diode Illumination: 630nm LED
Imager Field of View: 39° H x 25° V
Roll/Pitch/Yaw: 360°, ±65°, ±60°
Swipe Speed: Programmable up to 100 in. /254 cm per second (Horizontal Read Rate)
Frame Rate: Up to 60 frames per second
DS9808-LR Laser Scanner Mode:
Light Source: 650nm LED
Scan Angle: 40° ±3° nominal
Symbology decodes capability:
1D:
UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/ EAN-13/JAN-8/JAN-13 plus supplemental, ISBN (Book land), ISSN, Coupon Code), Code 39 (Standard, Full ASCII, Trioptic), Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Coda bar/ NW7,Code 11 (Standard, Matrix 2 of 5), MSI Plessey, I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA , Chinese 2 of 5), GS1 Data Bar (Omni directional, Truncated, Stacked, Stacked Omni directional, Limited, Expanded, Expanded Stacked, Inverse), Base 32 (Italian Pharmacode)
PDF417 (and variants):
PDF417 (Standard, Macro), MicroPDF417 (Standard, Macro), Composite Codes (CC-A, CC-B, CC-C)
2D:
TL C-39, Aztec (Standard, Inverse), Maxi Code, Data Matrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro
Postal:
U.S. Postnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, UPU FICS 4 State Postal, USPS 4CB
Minimum resolution:
Code 39 – 4 mil, UPC – 7.8 mil (60%), PDF417 – 5 mil, Datamatrix – 5 mil
Imaging characteristics:
Graphics format support:
Images can be exported as Bitmap, JPEG or TIFF
Image transfer speed:
USB 2.0: Up to 12 Megabits/second RS-232: Up to 115 kb/second
Image transfer time:
Typical USB application is ~0.2 seconds with a compressed JPEG of 100kb
Image quality:
120 DPI on a 4 x 6 in./10.2 x 15.2 cm document @ 6.5 in./16.5 cm
User environment:
Sealing: IP50
Operating Temp: 32° to 104° F /0° to 40° C
Humidity: 5% to 95% RH (Non-Condensing)
Ambient Light Immunity: Incandescent – 150 ft. candles (1,600 Lux) Sunlight – 8,000 ft. candles (86,000 Lux) Fluorescent – 150 ft. candles (1,600 Lux) Mercury Vapor – 150 ft. candles (1,600 Lux) Sodium Vapor – 150 ft. candles (1,600 Lux) Immune to normal or artificial light
Regulatory:
Electrical Safety: UL6950-1, CSA C22.2 No. 60950-1, EN60950-1 / IEC60950-1
Laser Safety: EN 60825-1,IEC 60825-1, 21CFR1040.10, CDRH Class II, IEC Class 2
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, EN 55022, EN 55024 AS/NZS 4268:2008, Japan VCCI
